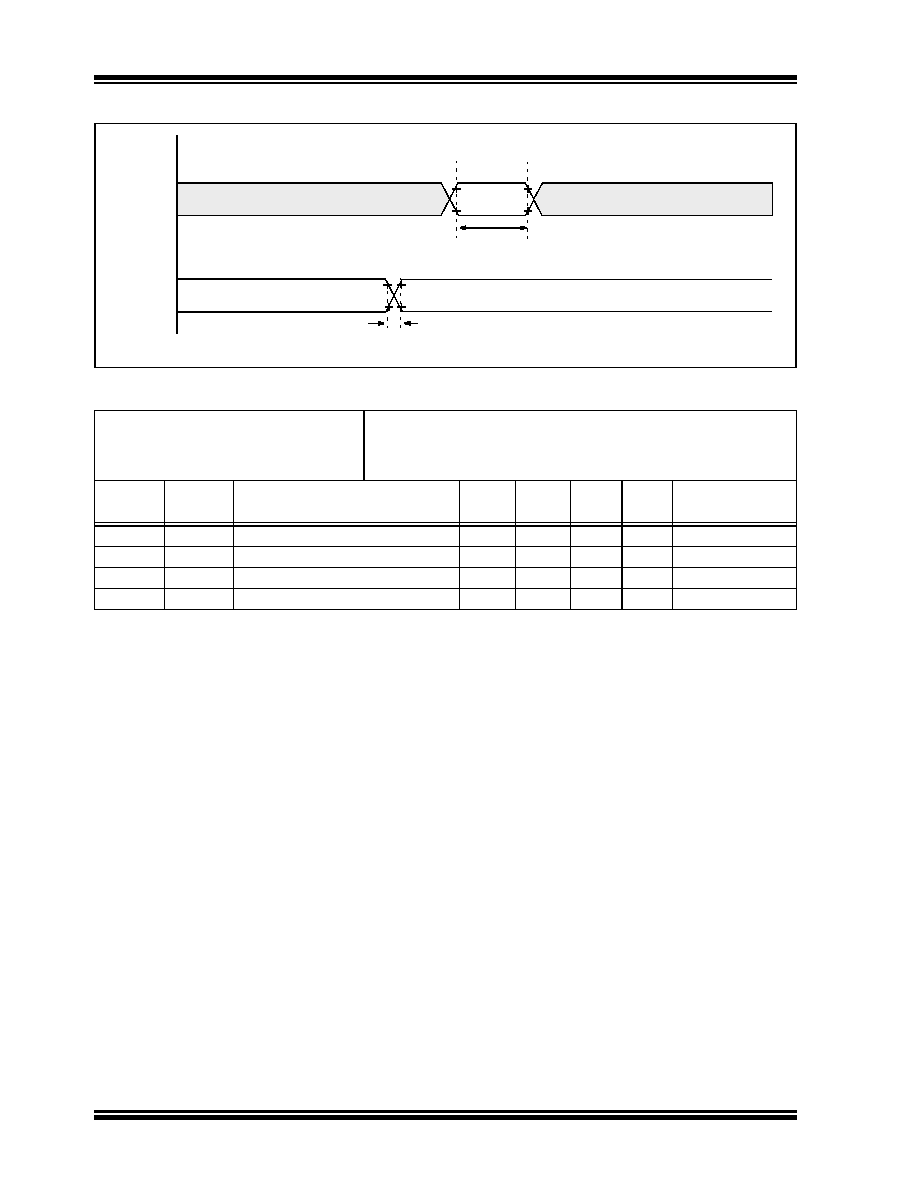

254 / 314 page  PIC24HJXXXGPX06A/X08A/X10A DS70592C-page 254 © 2011 Microchip Technology Inc. FIGURE 24-3: CLKO AND I/O TIMING CHARACTERISTICS TABLE 24-20: I/O TIMING REQUIREMENTS AC CHARACTERISTICS Standard Operating Conditions: 3.0V to 3.6V (unless otherwise stated) Operating temperature -40°C ≤ TA ≤+85°C for Industrial -40°C ≤TA ≤+125°C for Extended Param No. Symbol Characteristic Min Typ(1) Max Units Conditions DO31 TIOR Port Output Rise Time — 10 25 ns — DO32 TIOF Port Output Fall Time — 10 25 ns — DI35 TINP INTx Pin High or Low Time (input) 20 — — ns — DI40 TRBP CNx High or Low Time (input) 2 — — TCY — Note 1: Data in “Typ” column is at 3.3V, 25°C unless otherwise stated. Note: Refer to Figure 24-1 for load conditions. I/O Pin (Input) I/O Pin (Output) DI35 Old Value New Value DI40 DO31 DO32 |
|
