LL431

LINEAR INTEGRATED CIRCUIT

NISONICTECHNOLOGIESCO.,LTD

5 of 5

www.unisonic.com.tw

QW-R121-020,B

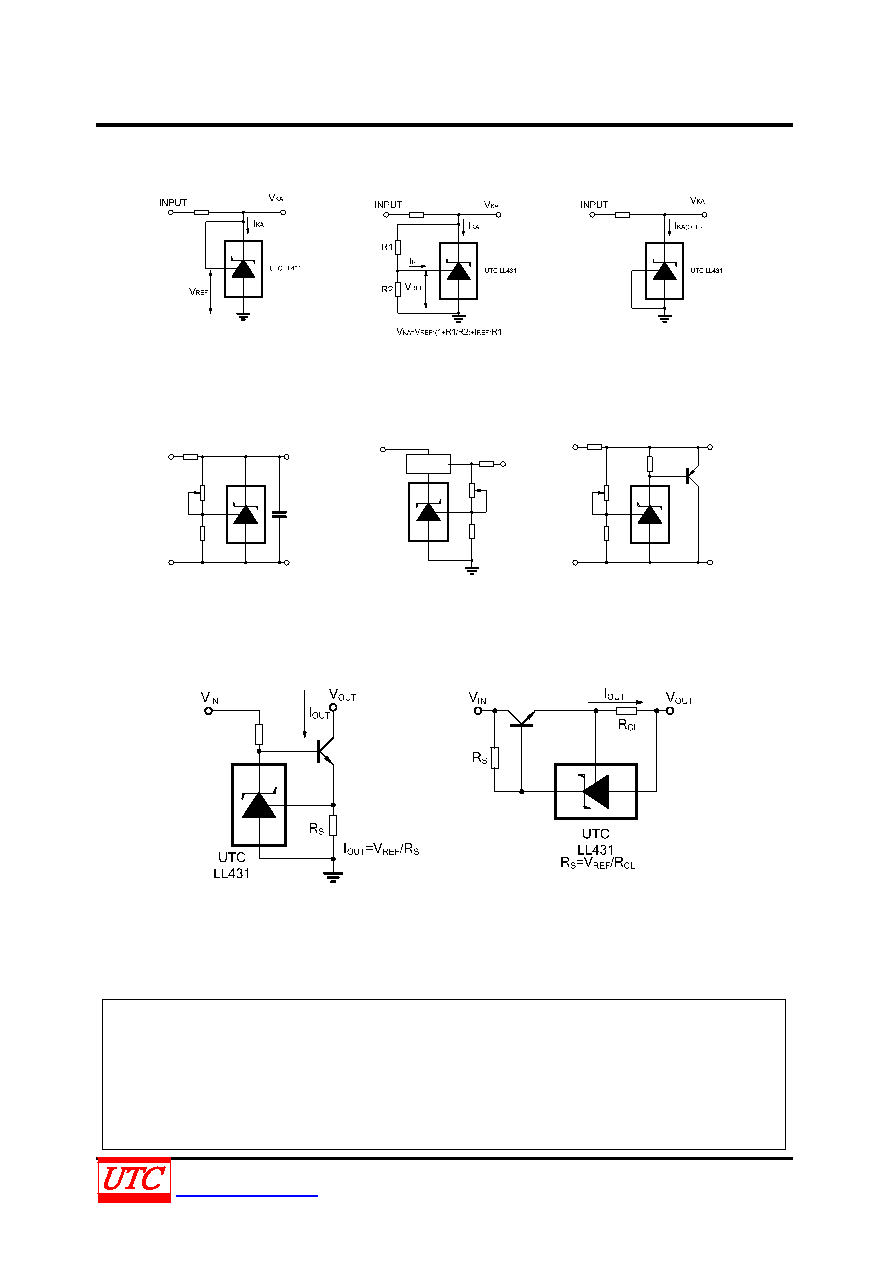

TEST CIRCUIT

For VKA=VREF

For VKA≧ VREF

For IKA(OFF)

APPLICATION CIRCUIT

VIN

VoUT

VREF

UTC LL431

VOUT=(1+R1/R2)*VREF

VREF

UTC LL431

VOUT=(1+R1/R2)*VREF

UTC7805

OUT

COMMON

VREF

UTC LL431

VOUT=(1+R1/R2)*VREF

VIN

VoUT

VIN

Shutdown Regulator

Output Control of a Three

Higher-current Shunt Regulator

-Terminal Fixed Regulator

Constant-current Sink

Current Limiting or Current Source
