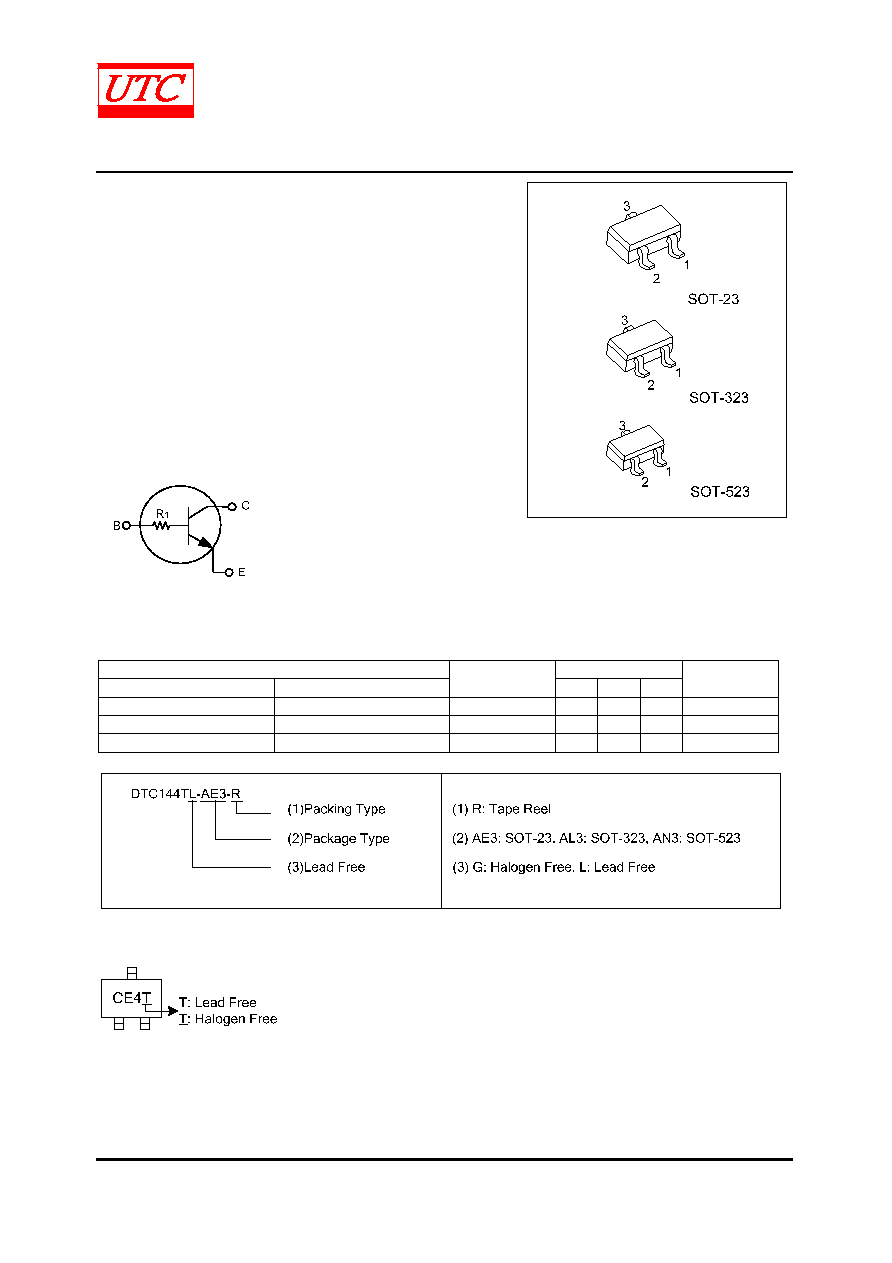

UNISONIC TECHNOLOGIES CO., LTD

DTC144T

NPN SILICON TRANSISTOR

ofwww.unisonic.com.tw

1of 3

Copyright © 2011 Unisonic Technologies Co., Ltd

QW-R206-066.C

NPN DIGITAL TRANSISTOR

(BUILT- IN BIAS RESISTORS)

FEATURES

* Built-in bias resistors that implies easy ON/OFF applications.

* The bias resistors are thin-film resistors with complete isolation to

allow negative input.

EQUIVALENT CIRCUIT

ORDERING INFORMATION

Order Number

Package

Pin Assignment

Packing

Lead Free

Halogen Free

1

2

3

DTC144TL-AE3-R

DTC144TG-AE3-R

SOT-23

E

B

C

Tape Reel

DTC144TL-AL3-R

DTC144TG-AL3-R

SOT-323

E

B

C

Tape Reel

DTC144TL-AN3-R

DTC144TG-AN3-R

SOT-523

E

B

C

Tape Reel

Note: Pin Assignment: E: Emitter, B: Base, C: Collector

MARKING
