UNISONIC TECHNOLOGIES CO., LTD

MMDT2222A

Preliminary

DUAL TRANSISTOR

www.unisonic.com.tw

1 of 3

QW-R218-016.a

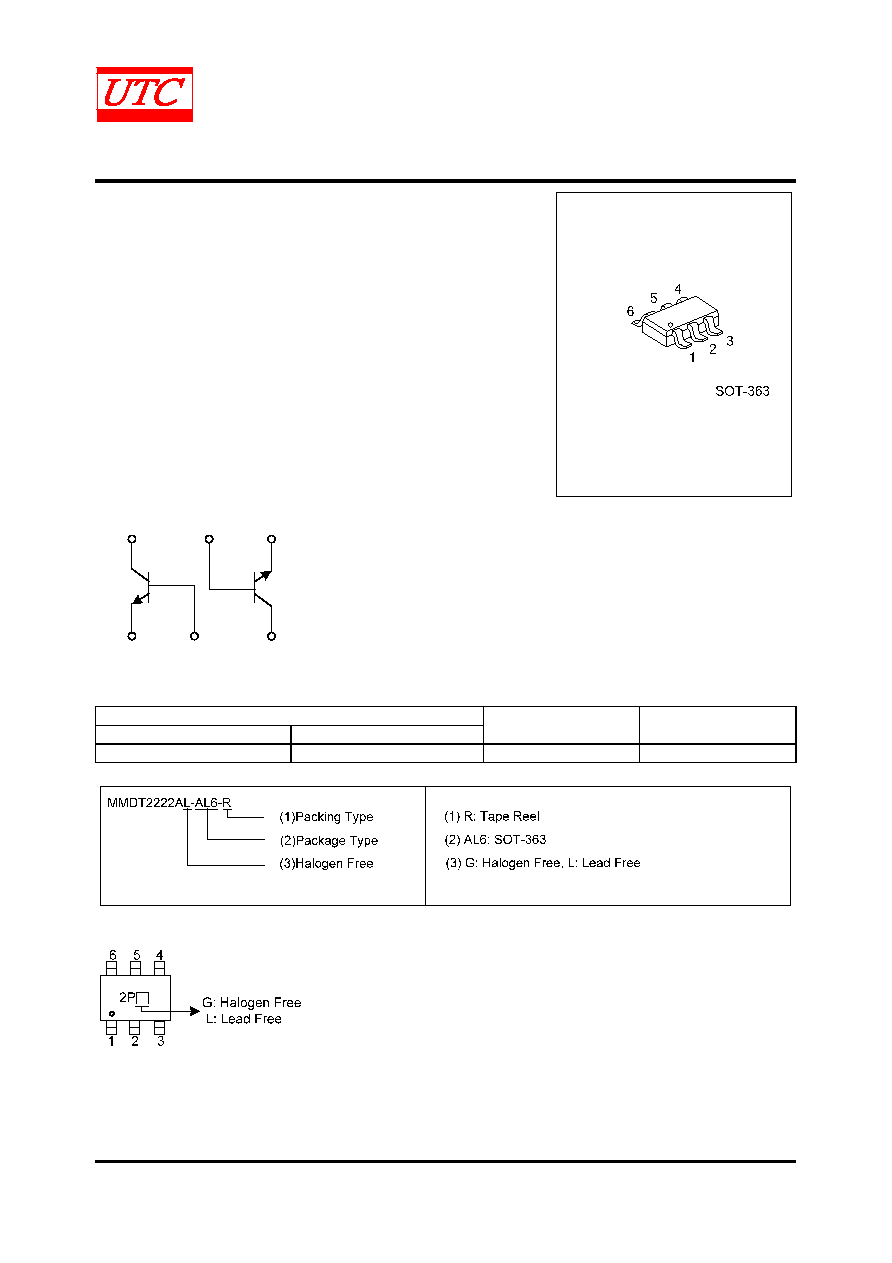

DUAL NPN SMALL SIGNAL

SURFACE MOUNT TRANSISTOR

DESCRIPTION

The UTC MMDT2222A is a Dual NPN small signal surface mount

transistor. It’s suitable for low power amplification and switch.

FEATURES

* Suitable for Low Power Amplification and Switching

* Epitaxial Planar Die Construction

* Extremely-Small Surface Mount Package

EQUIVALENT CIRCUIT

Tr1

65

4

Tr2

12

3

ORDERING INFORMATION

Ordering Number

Lead Free

Halogen Free

Package

Packing

MMDT2222AL-AL6-R

MMDT2222AG-AL6-R

SOT-363

Tape Reel

MARKING INFORMATION

Similar Part No. - MMDT2222AL-AL6-R

Manufacturer	Part #	Datasheet	Description
Transys Electronics	MMDT2222A	199Kb / 2P	DUAL NPN SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Diodes Incorporated	MMDT2222A	56Kb / 3P	DUAL NPN SMALL SIGNAL SURFACE MOUNT TRANSISTOR DS30125 Rev. 5 - 2
Diodes Incorporated	MMDT2222A	86Kb / 4P	DUAL NPN SMALL SIGNAL SURFACE MOUNT TRANSISTOR DS30125 Rev. 9 - 2
Pan Jit International I...	MMDT2222A	154Kb / 4P	DUAL SURFACE MOUNT NPN TRANSISTORS
Galaxy Semi-Conductor H...	MMDT2222A	172Kb / 3P	Dual NPN Small Signal Surface Mount Transistor Rev.A
