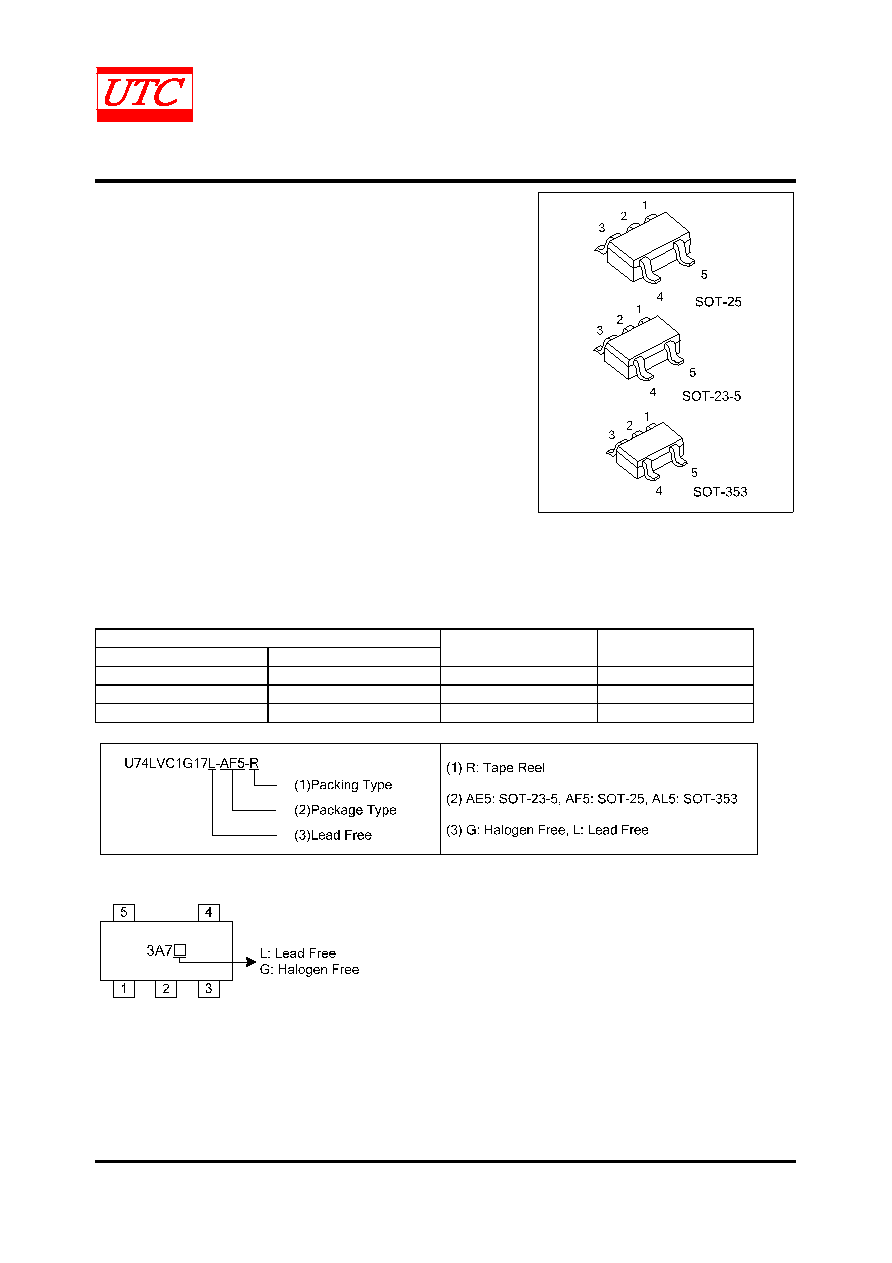

1 / 5 page

UNISONIC TECHNOLOGIES CO., LTD

U74LVC1G17

CMOS IC

www.unisonic.com.tw

1 of 5

QW-R502-080,F

SINGLE SCHMITT-TRIGGER

BUFFER

DESCRIPTION

The UTC U74LVC1G17 is a single Schmitt-trigger buffer, it

provides the function Y=A.

The device have different input threshold levels for positive-

going (VT+) and negative-going(VT-) signals because of the

Schmitt-trigger action in the input.

This device has power-down protective circuit, preventing

device destruction when it is powered down.

FEATURES

* Operation Voltage Range: 1.65~5.5V

* Low Power Dissipation:

ICC=10µA (Max)

* 24mA Output Drive(VCC=3.0V)

* High Noise Immunity

ICC=10µA (Max)

* Power Down Protection

ICC=10µA (Max)

ORDERING INFORMATION

Ordering Number

Package

Packing

Lead Free

Halogen Free

U74LVC1G17L-AE5-R

U74LVC1G17G-AE5-R

SOT-23-5

Tape Reel

U74LVC1G17L-AF5-R

U74LVC1G17G-AF5-R

SOT-25

Tape Reel

U74LVC1G17L-AL5-R

U74LVC1G17G-AL5-R

SOT-353

Tape Reel

MARKING
