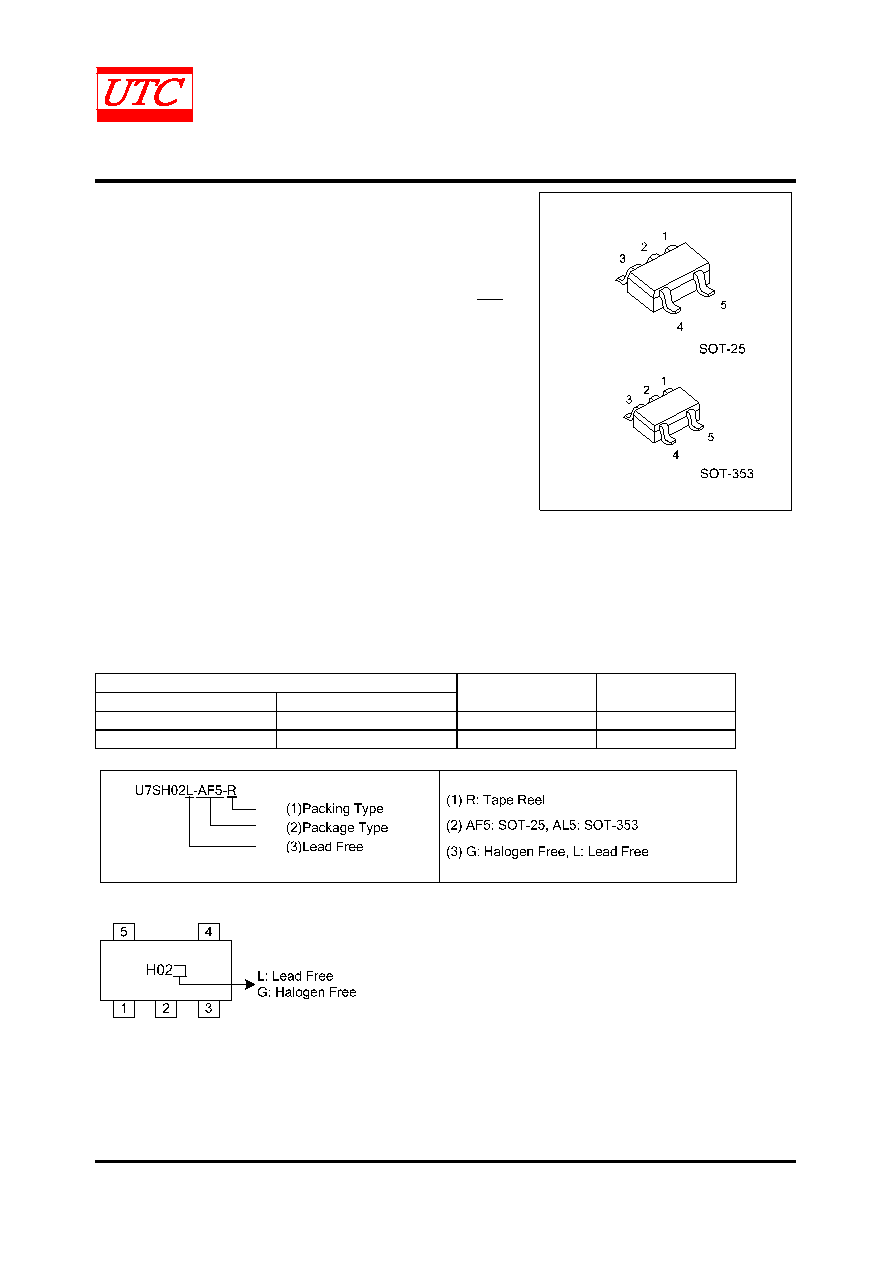

UNISONIC TECHNOLOGIES CO., LTD

U7SH02

CMOS IC

www.unisonic.com.tw

1 of 5

QW-R502-095.B

2-INPUT NOR GATE

DESCRIPTION

The U7SH02 is a 2-input NOR gate, it provides the function

Y=A+B

This device has power-down protective circuit, preventing device

destruction when it is powered down.

FEATURES

* Operation voltage range:

2~5.5V

* Low power current:

ICC=2μA(Max)

* High speed:

tPD=3.8ns(Typ)

* High noise immunity

* Power down protection

ORDERING INFORMATION

Ordering Number

Package

Packing

Lead Free

Halogen Free

U7SH02L-AF5-R

U7SH02G-AF5-R

SOT-25

Tape Reel

U7SH02L-AL5-R

U7SH02G-AL5-R

SOT-353

Tape Reel

MARKING
