Package information

In order to meet environmental requirements, ST offers these devices in different grades of

specifications, grade definitions and product status are available at: www.st.com.

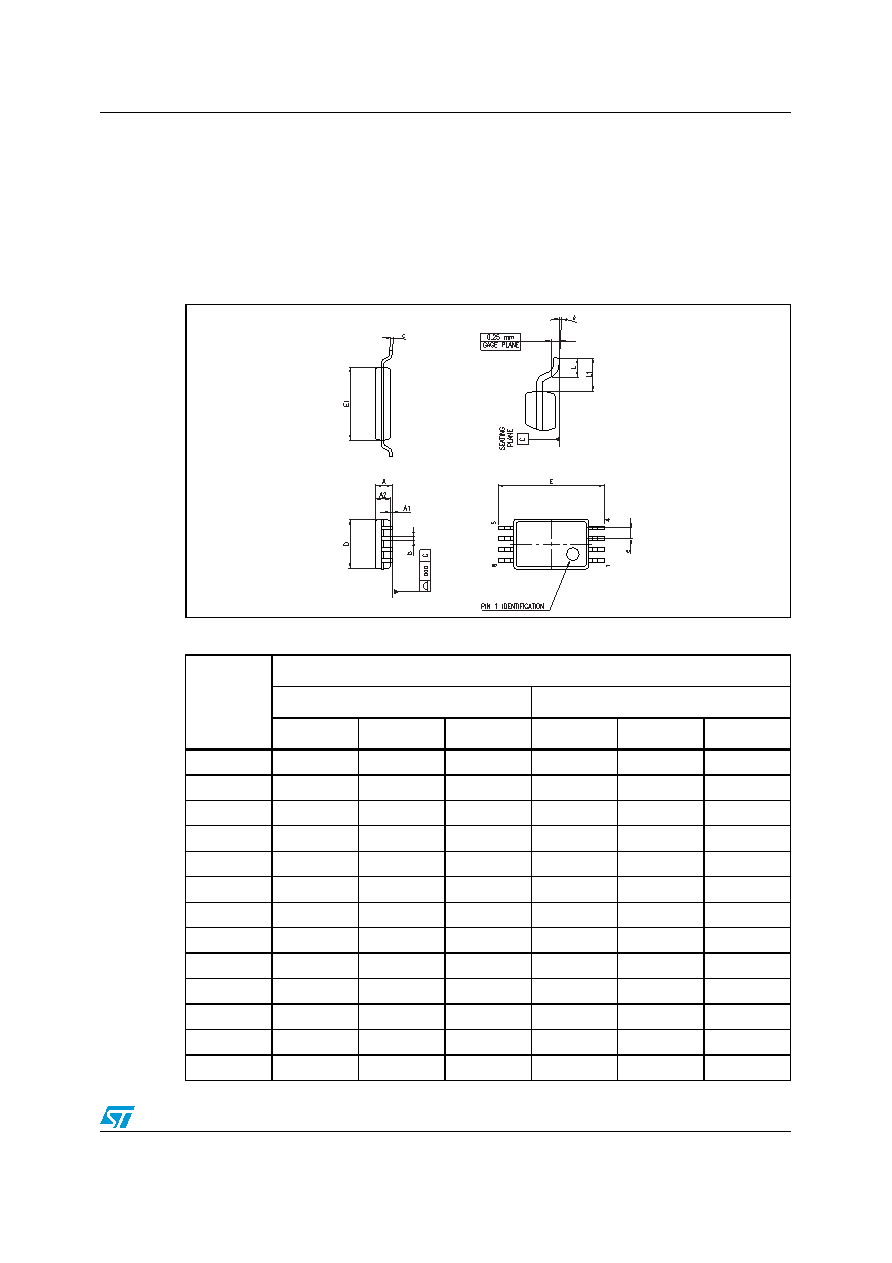

Figure 3.

TSSOP8 package mechanical drawing

Table 7.

TSSOP8 package mechanical data

Ref.

Dimensions

Millimeters

Inches

Min.

Typ.

Max.

Min.

Typ.

Max.

A1.20

0.047

A1

0.05

0.15

0.002

0.006

A2

0.80

1.00

1.05

0.031

0.039

0.041

b

0.19

0.30

0.007

0.012

c

0.09

0.20

0.004

0.008

D

2.90

3.00

3.10

0.114

0.118

0.122

E

6.20

6.40

6.60

0.244

0.252

0.260

E1

4.30

4.40

4.50

0.169

0.173

0.177

e

0.65

0.0256

k0°

8°

0°

8°

L

0.45

0.60

0.75

0.018

0.024

0.030

L1

1

0.039

aaa

0.10

0.004
