AMLD-RZ Datasheet(PDF) 2 Page - AIMTEC |
|
|
|||||||||||||||||||||||||||||
AMLD-RZ Datasheet(HTML) 2 Page - AIMTEC |
|
|

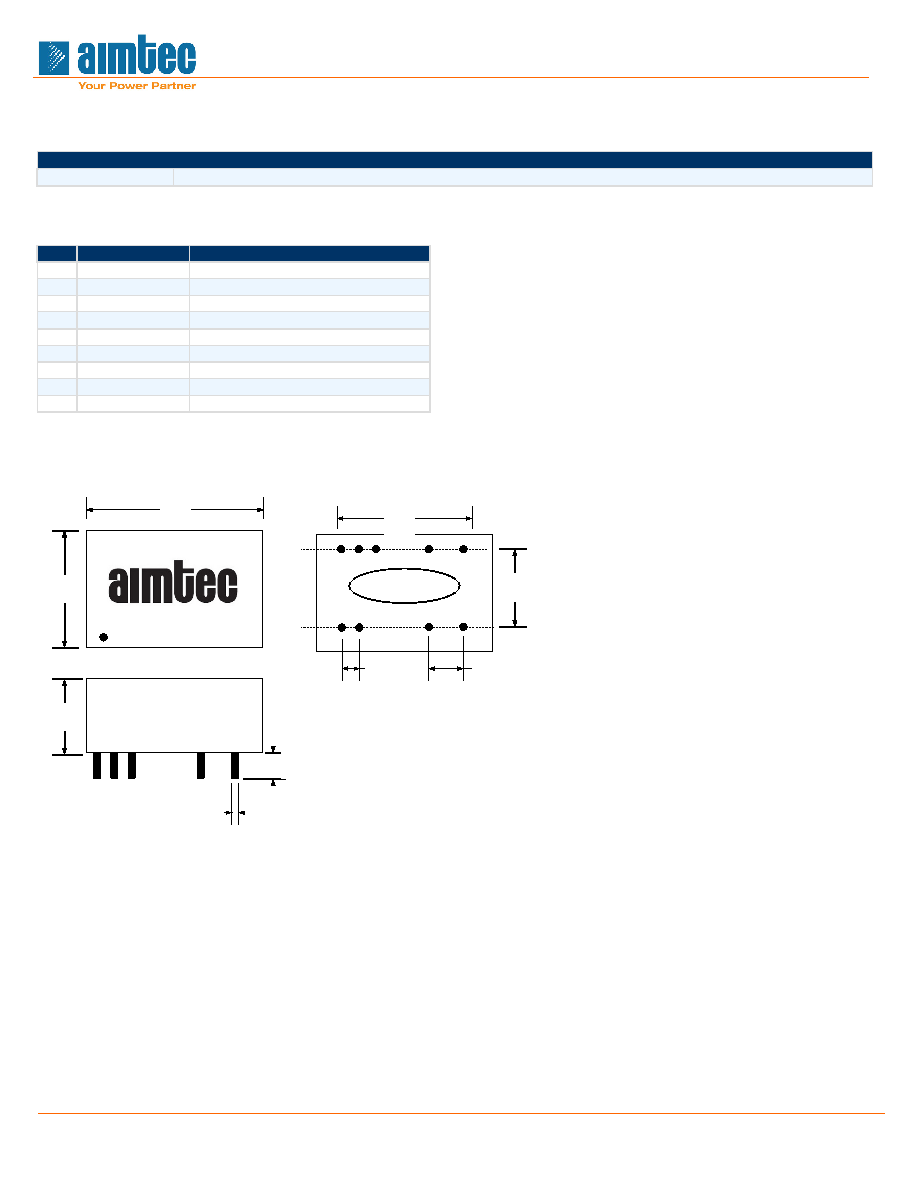

2 / 3 page  Series AMLD-RZ Up to 1000mA | LED Driver www.aimtec.com Tel: +1 514 620 2722 Toll free: + 1 888 9 AIMTEC (924 6832) F 051e R12.A 2 of 3 North America only Safety Specifications Parameters Standards Designed to meet EN 60950-1 Pin Out Specifications Dimensions 31.75 (1.25) 23 22 2 3 16 14 9 11 20.32 (0.80) 4 15.24 (0.60) 2.54 (0.1) 12.45 (0.49) 5.08 (0.2) 3.00 (0.12 Bottom View 22.86 (0.90) 0.50 (0.02) Pin Single 2 - V Input - DC Supply 3 - V Input - DC Supply 4 Vadj PWM/ON/OFF or not used 9 - V Output LED Cathode connection 11 - V Output LED Cathode connection 14 + V Output LED Anode connection 16 + V Output LED Anode connection 22 + V Input + DC Supply 23 + V Input + DC Supply Mechanical Tolerances Case tolerance ± 0.25mm or ± 0.01 inches Pin tolerance ± 0.05 or ± 0.002 |
|
|
