TYPICAL PERFORMANCE CHARACTERISTICS

TA = 25°C, unless otherwise noted.

100

–120 –100 –80 –60 –40 –20

100 120

VOS (µV)

ADA4500-2

VSY = 2.7V

VCM = VSY/2

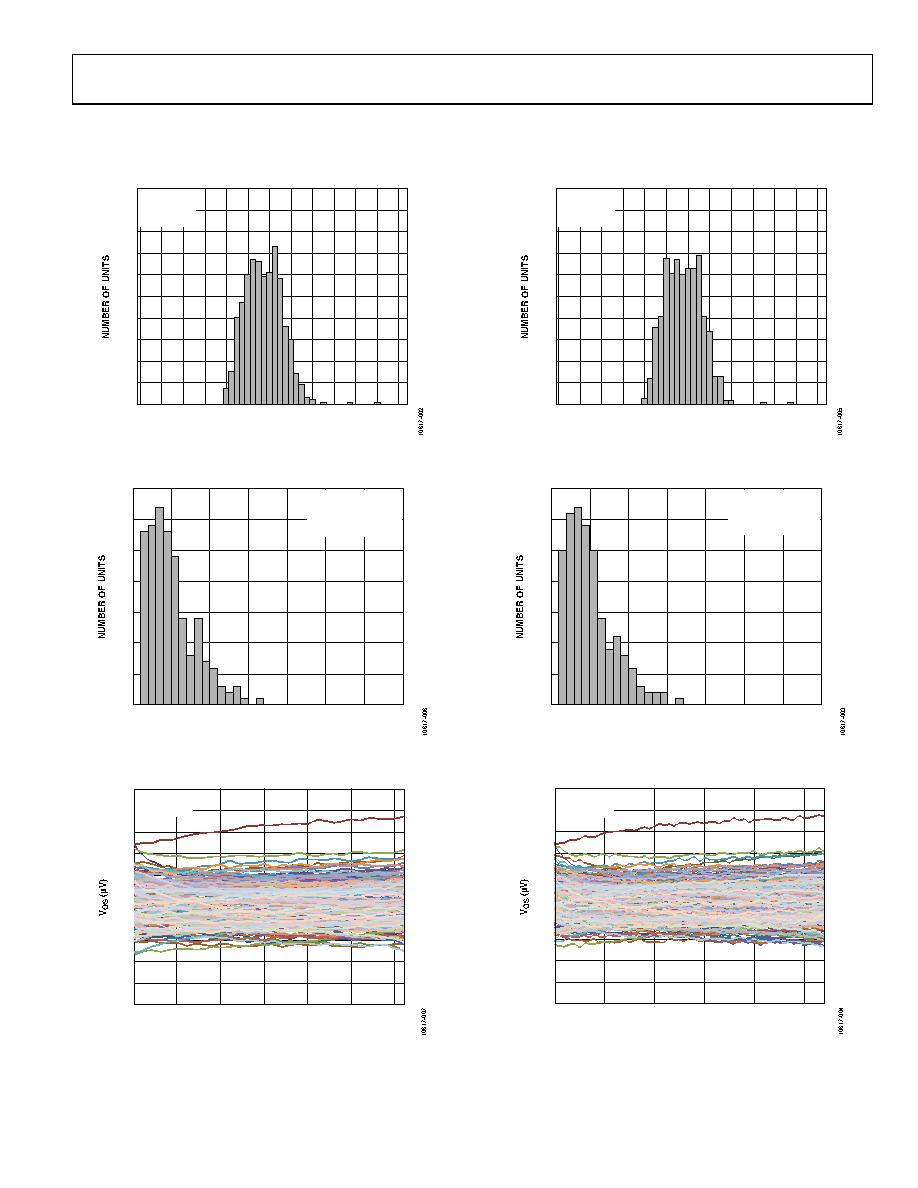

Figure 5. Input Offset Voltage Distribution, VSY = 2.7 V

8.75

7.50

6.25

5.00

3.75

2.50

1.25

TCVOS (µV/°C)

ADA4500-2

VSY = 2.7V

VCM = VSY/2

–40°C ≤ TA ≤ +125°C

Figure 6. Input Offset Voltage Drift Distribution, VSY = 2.7 V

100

–100

–80

–60

–40

–20

–0.2

2.8

2.3

1.8

1.3

0.8

0.3

VCM (V)

ADA4500-2

VSY = 2.7V

Figure 7. Input Offset Voltage (VOS) vs. Common-ModeVoltage (VCM), VSY = 2.7 V

100

–120 –100 –80 –60 –40 –20

100 120

VOS (µV)

ADA4500-2

VSY = 5.0V

VCM = VSY/2

Figure 8. Input Offset Voltage Distribution, VSY = 5.0 V

8.75

7.50

6.25

5.00

3.75

2.50

1.25

TCVOS (µV/°C)

ADA4500-2

VSY = 5.0V

VCM = VSY/2

–40°C ≤ TA ≤ +125°C

Figure 9. Input Offset Voltage Drift Distribution, VSY = 5.0 V

–0.2

2.8

4.8

3.8

1.8

0.8

100

–100

–80

–60

–40

–20

VCM (V)

ADA4500-2

VSY = 5.0V

Figure 10. Input Offset Voltage (VOS) vs.Common-ModeVoltage (VCM), VSY = 5.0 V
