DB152S Datasheet(PDF) 2 Page - Yea Shin Technology Co., Ltd

Part # DB152S
Description  SINGLE-PHASE GLASS PASSIVATED VOLTAGE RANGE 50 to 1000 Volts CURRENT 1.5 Ampere
PDF  2 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  YEASHIN [Yea Shin Technology Co., Ltd]
Direct Link  http://www.yeashin.com
Logo YEASHIN - Yea Shin Technology Co., Ltd

DB152S Datasheet(HTML) 2 Page - Yea Shin Technology Co., Ltd

  DB152S Datasheet HTML 1Page - Yea Shin Technology Co., Ltd DB152S Datasheet HTML 2Page - Yea Shin Technology Co., Ltd
Zoom Inzoom in Zoom Outzoom out
 2 / 2 page
background image
http://www.yeashin.com
2
REV.03 20130115
DB151S THRU DB157S
DEVICE CHARACTERISTICS

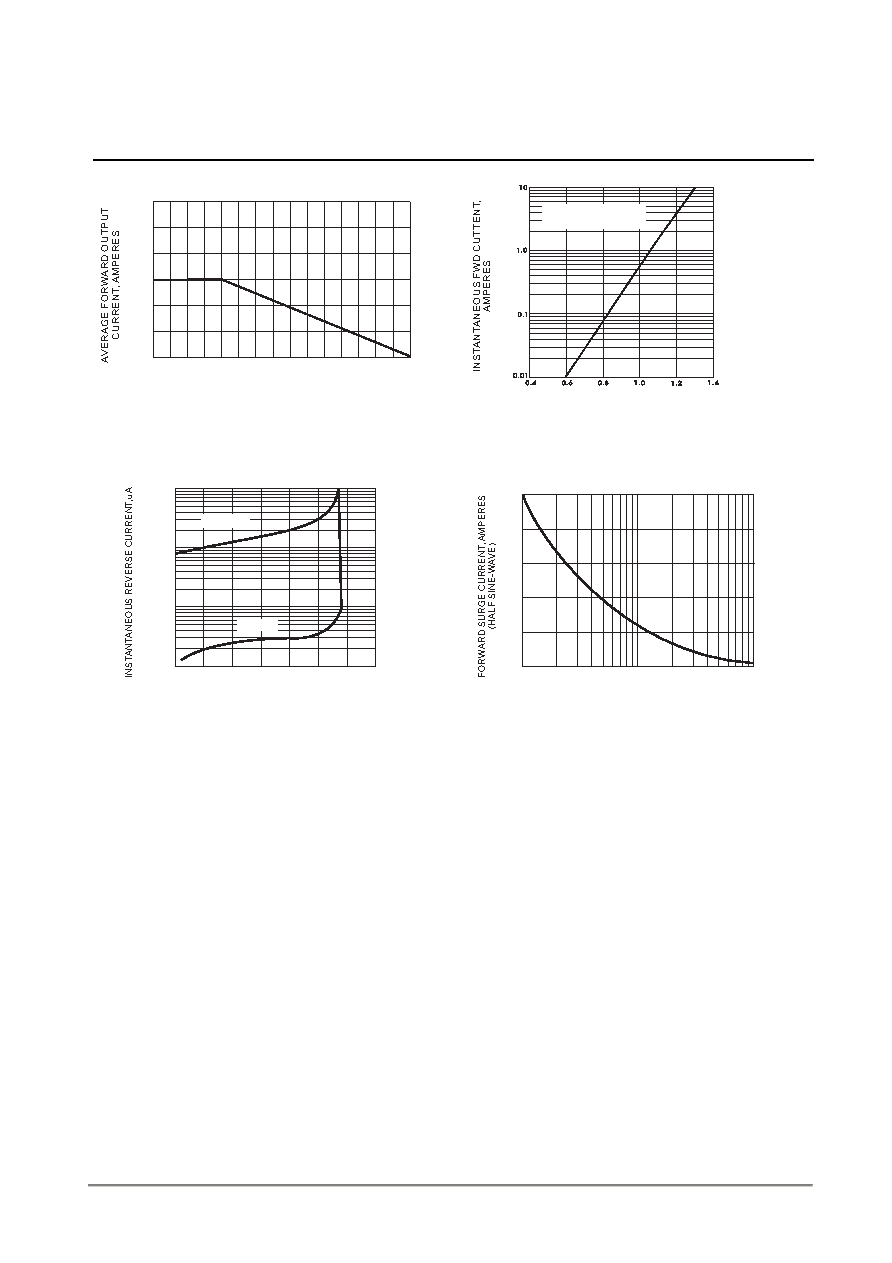

FIG.1 DERATING CURVE FOR OUTPUT
RECTIFIED CURRENT
FIG.3 TYPICAL REVERSE CHARACTERISTICS
FIG.4 MAX NON-REPETITIVE SURGE CURRENT
FIG.2 TYPICAL FORWARD CHARACTERISTICS
AMBIENT TEMPERATURE, C
O
PERCENT OF PEAK REVERSE VOLTAGE, %
NO.OFCYCLES AT60Hz
INSTANTANEOUS FWD VOLTAGE, VOLTS
3.0
2.0
1.0
0
0
50
100
150
1.5
2.5
0.5
T = 100 C
A
O
T= 25 C
A
O
10
1.0
0.1
0.01
0
20
40
60
80
100
120
140
50
40
30
20
10
0
1
2
6
10
20
40
60
100
T=25 C
PulseWidth=200uS
J
O



Html Pages

1 2


Datasheet Download

Go To PDF Page


Link URL
