SPECIFICATION FOR APPROVAL
DOCUMENT
: SRK210000NH
REVISION
: A2
PAGE
: 6 OF 9

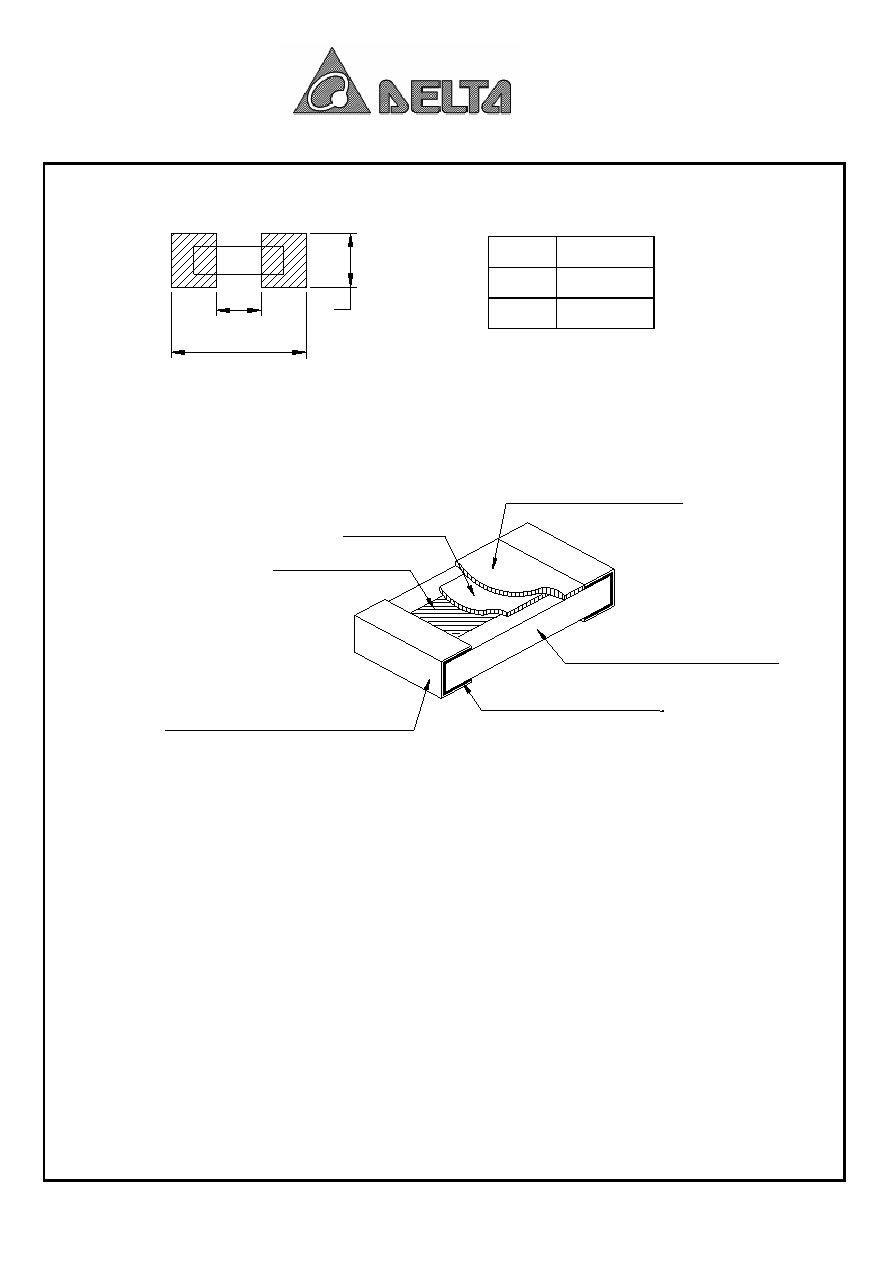

6. Recommend Land Pattern Dimensions
7. Construction Drawing
A
0.6~1.0
B
2.0~2.4
C
0.6~1.0
Unit : mm
C
A
B
Thin electrode film:NiCr+NiCu
Thick film Resistor
Dielectric coating
Alumina substrate ( Al2O3 )
Resin coating(Epoxy)
Side Electrode: Cu+Ni+Sn plating
