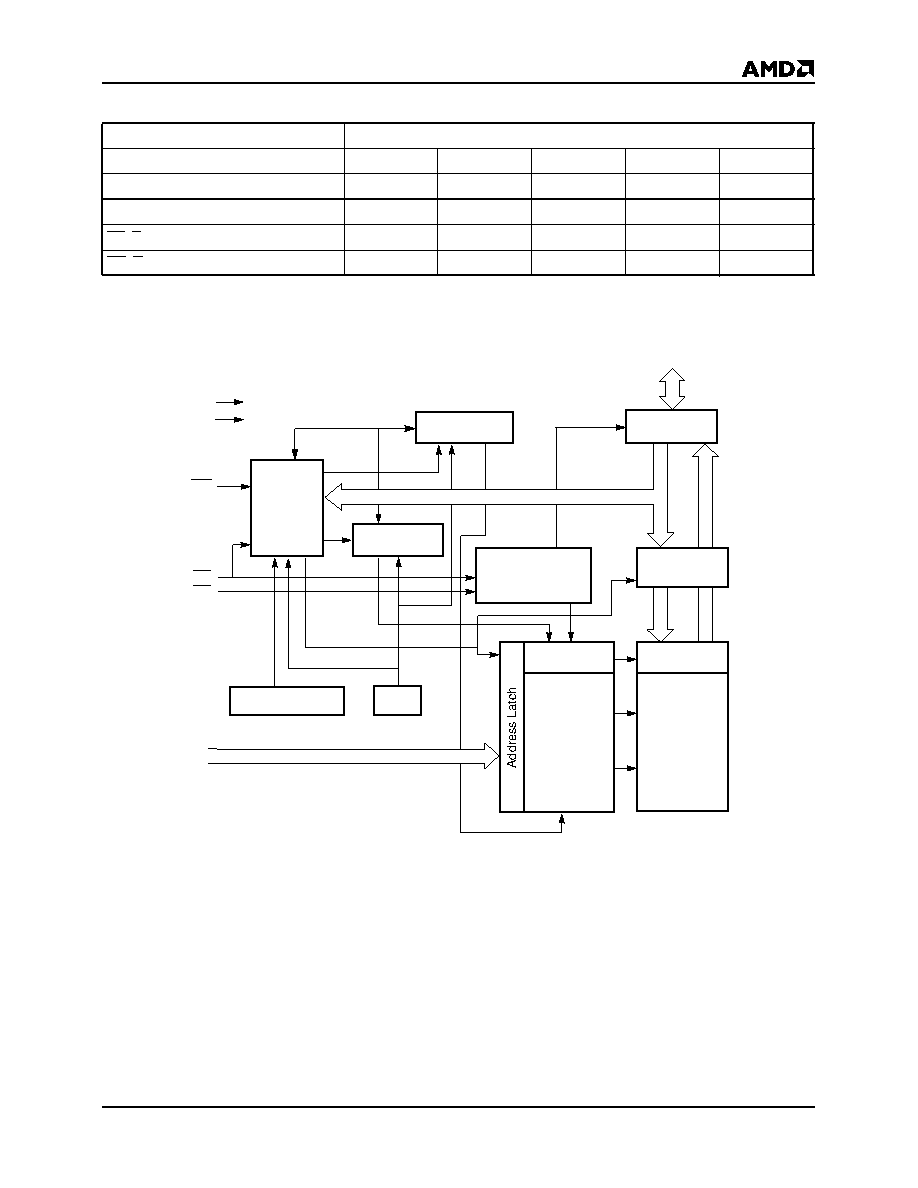

Am29F040
3
PRODUCT SELECTOR GUIDE
BLOCK DIAGRAM
Family Part No:
Am29F040
Ordering Part No: VCC = 5.0 V ± 5%
-55
VCC = 5.0 V ± 10%
-70
-90
-120
-150
Max Access Time (ns)
55
70
90
120
150
CE (E) Access (ns)
55
70
90
120
150
OE (G) Access (ns)
25
30
35
50
55
Erase Voltage
Generator
Y-Gating
Cell Matrix
X-Decoder
Y-Decoder
Chip Enable
Output Enable
Logic
PGM Voltage
Generator
Timer
VCC Detector
State
Control
Command
Register
WE
CE
OE
A0–A18
STB
STB
DQ0–DQ7
VCC
VSS
17113E-2
Data Latch
Input/Output
Buffers
