TS3420

2A, 1.25MHz Synchronous Buck Converter

5/9

Version: A12

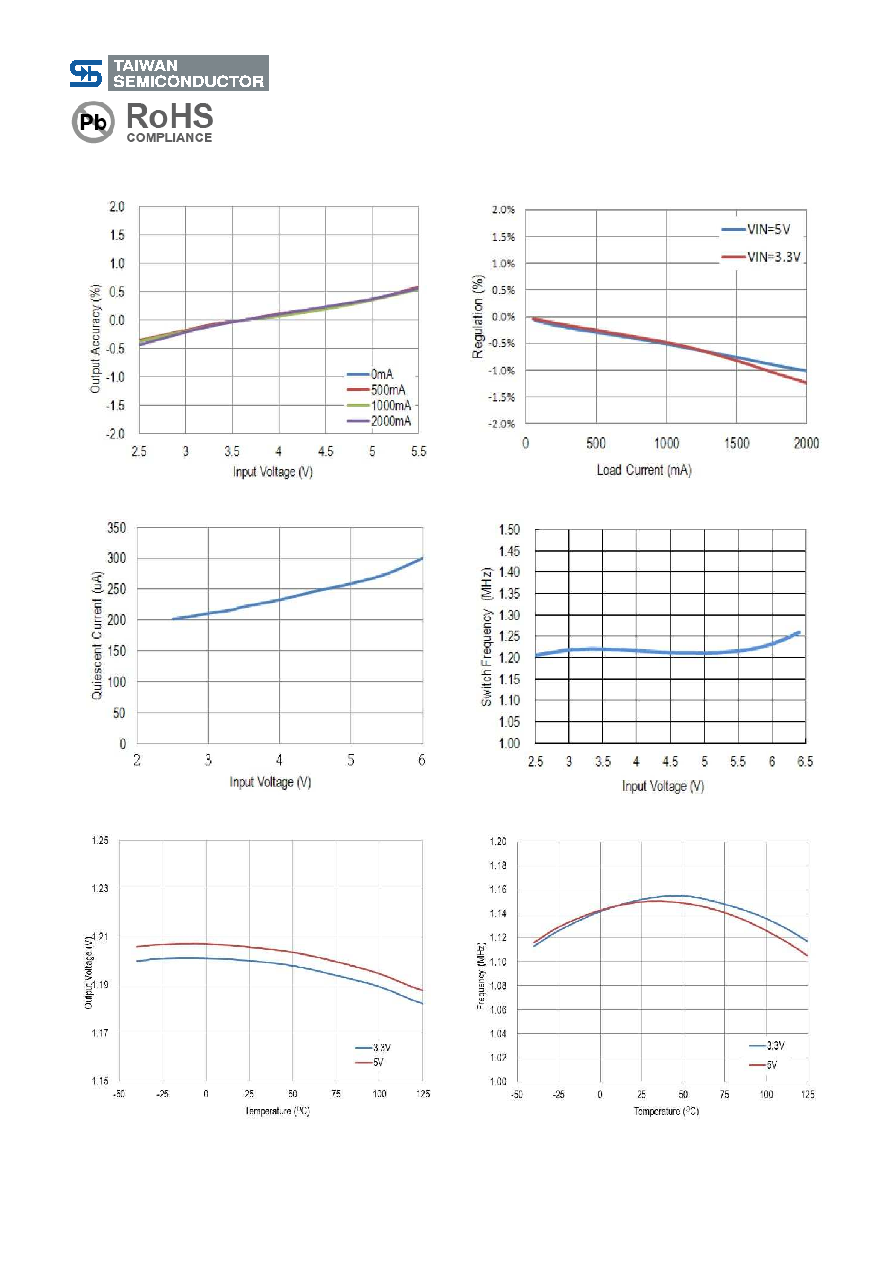

Electrical Characteristics Curve

Figure 1. Output Voltage vs. Input Voltage

Figure 2. Load Regulation (VOUT=3.3V)

Figure 3. Quiescent Current vs. Input Voltage

Figure 4. Switching Frequency vs. Input Voltage

Figure 5. Output Voltage vs. Temperature

Figure 6. Quiescent Current vs. Temperature
