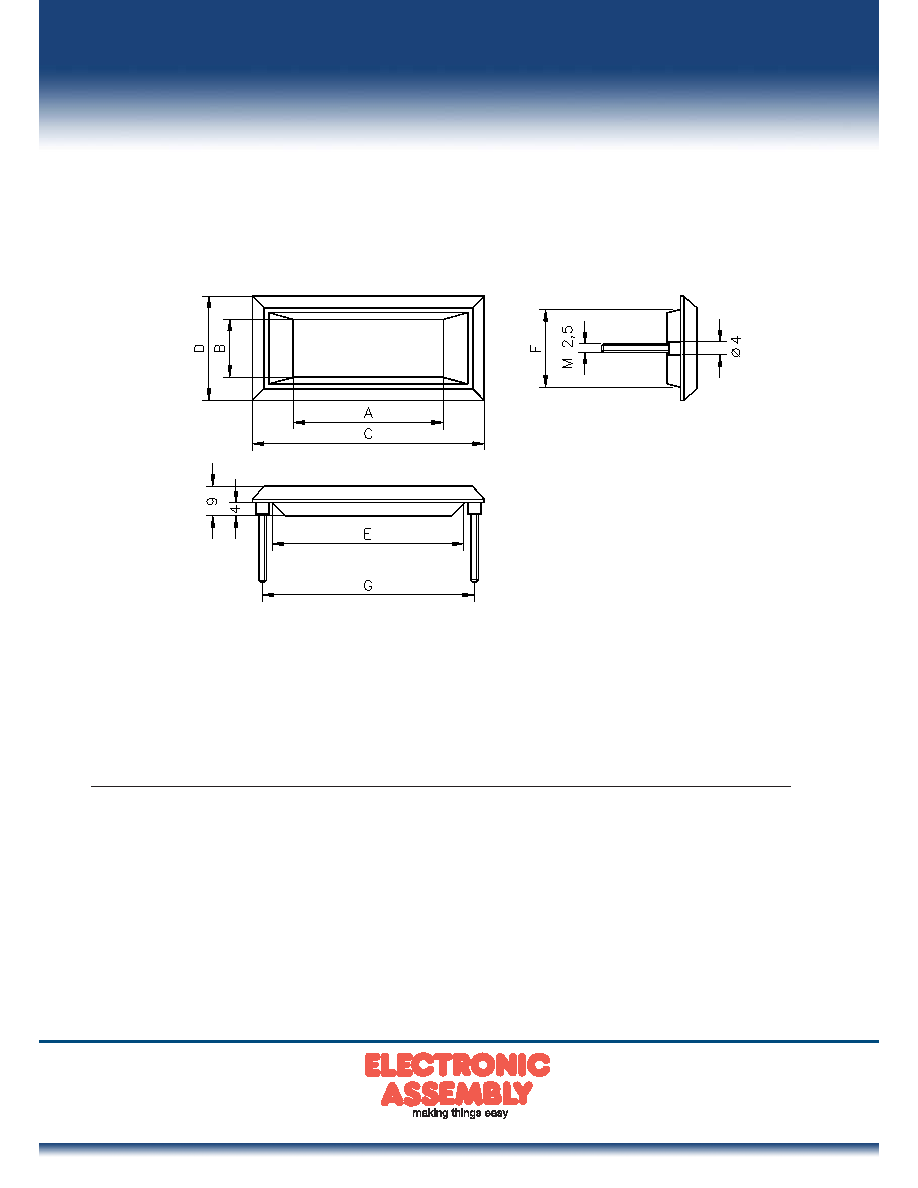

FRONTPANEL AND MOUNTING

BEZELS FOR SPECIAL MODULES

EA 033-K

45,7

18,2

72,0

36,0

68,0

33,0

62 x 27

EA 4060-DP

EA 033-R

45,7

18,2

72,0

36,0

68,0

33,0

62 x 27

EA 4040-DP

EA 044

32,5

13,0

48,0

24,0

45,0

22,5

snap-in

EA 4044

EA 055

42,5

17,5

60,0

30,0

57,0

27,0

snap-in

EA 4055/-S

EA 055-31

42,5

17,5

60,0

30,0

57,0

27,0

snap-in

EA 1031-N,EA 4050

The snap-in bezel is delivered in two parts: the bezel and the window. The bezel is pressed from the

frontside into the frontpanel and the corresponding module is snapped in from the rearside of the frontpanel.

Finally the window is pasted up to the bezel.

Ordering

information

viewing area

bezel size

cutout

mounting matching module

(all dimensions in mm)
