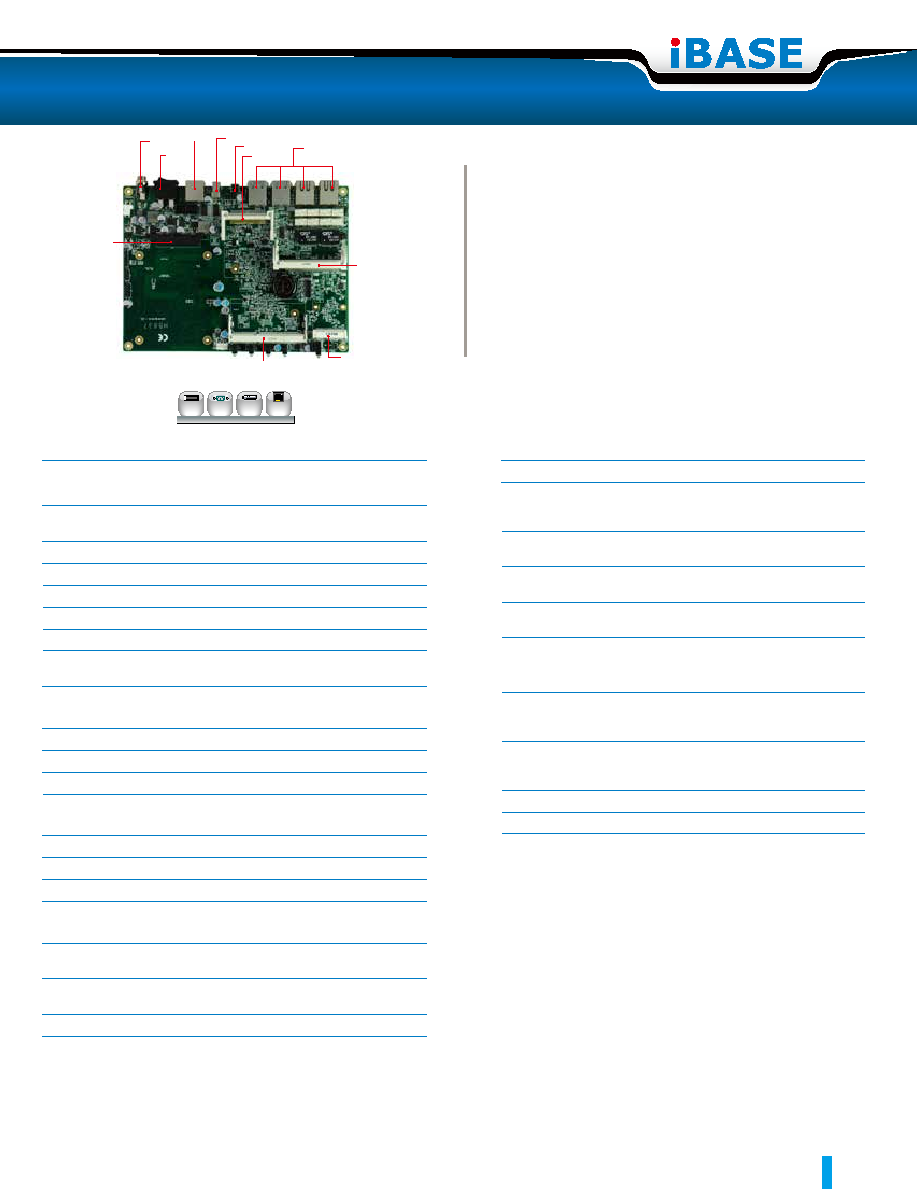

Network Appliances

For user’s manual & datasheet download, visit www.ibase.com.tw

29

Power

On/Off

RJ-45

USB

Console

Reset

SATA

Mini PCI

CF Socket

Mini PCI-E

DDR3

SO-DIMM

Intel® Atom™ D2550 Networking Disk-size SBC w/

Intel® NM10 PCH

Features

● Intel® AtomTM Processor D2550, 1.86GHz

● 4x Intel® 82583V GbE ports

● 1x DDR3 SO-DIMM, 1066/1333 MHz, Max. 4GB

● 1x CF socket, 1x 2.5” HDD drive bay, 1x Mini PCI

socket, 1x Mini PCI-E (USB signal) socket

System

CPU

Intel® AtomTM Processor D2550

(1M Cache, 1.86 GHz)

System Memory

1x DDR3 non-ECC SO-DIMM, 1066/1333 MHz,

Max. 4GB

System Chipset

Intel® NM10 PCH

BIOS

AMI

Watchdog Timer

256 levels

SSD

1x CF socket

H/W Monitor

Yes

Expansion Slots

1x Mini PCI

1x Mini PCI-E - w/ USB signal

Graphics

VGA Controller

Intel® AtomTM D2550 integrated

VGA Memory

Max. Shared Memory – 224MB

Display Interface

VGA CRT via pin header

LAN

Controller

4x Intel® 82583V GbE

Bypass

LAN 1/2

Connector

4x RJ-45 on board

Multi I/O

I/O Chipset

NM10, Nuvoton NCT6627UD

1x KB, 1x mouse, 2x RS-232, 1x SATA

USB

1x USB 2.0 port on board

2x USB 3.0 via pin header

Others

+12V DC-in power connector

Mechanical and Environmental

Dimensions

203 x 146 mm (8” x 5.75”)

Max. Power

Requirement

Intel® Atom™ N2550 1.86GHz

w/ 2GB DDR3-1333

+12V: 1.74A

Operating

Temperature

0°C~60°C (32°F~140°F)

Storage

Temperature

-20°C~80°C (-4°F~176°F)

Relative

Humidity

10%~90% (non-condensing)

Ordering Information

MB837-D25

5.25", Intel® AtomTM D2550, NM10, 82583V 4x GbE,

Bypass Eth1/2, SATA connector, CF socket, Mini PCI,

12V DC-In

MB837-D25-R

5.25", Intel® AtomTM D2550, NM10, 82583V 4x GbE,

Bypass Eth1/2 (Power off), SATA connector,

CF socket, Mini PCI, 12V DC-In

PS2G

PS/2 keyboard and mouse cable

VGA8

VGA cable

MB837-D25

3

USB

2

COM

1

SATA

4

GbE LAN
