SKO2 - SKOB

SURFACE MOUNT

SCHOTTKY BARRIER RECTIFIERS

PRV : 20 - 100 Volts

FEATURES :

* High current capability

* High surge current capability

* High reliability

* High efficiency

* Low power loss

* Low forward voltage drop

* Low cost

MECHANICAL DATA :

* Case : SMA Molded plastic

* Epoxy : UL94V-O rate flame retardant

* Lead : Lead Formed for Surface Mount

* Polarity : Color band denotes cathode end

* Mounting position : Any

* Weight : 0.064 gram

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Rating at 25

Single phase, half w ave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

SYMBOL

SK

O2

SK

O3

SK

O4

SK

O5

SK

O6

SK

O7

SK

O8

SK

O9

SK

OB

UNIT

Maximum Recurrent Peak Reverse Voltage

20

30

40

50

60

70

80

90

100

Volts

Maximum RMS Voltage

14

21

28

35

42

49

56

63

70

Volts

Maximum DC Blocking Voltage

20

30

40

50

60

70

80

90

100

Volts

Maximum Average Forward Current

Fig.1

1.5

Amp.

Peak Forward Surge Current, 8.3ms single half sine wave

superimposed on rated load (JEDEC Method)

50

Amp.

0.5

0.7

0.79

Volt.

Maximum Reverse Current at

Rated DC Blocking Voltage (Note 1)

0.5

mA

Junction Temperature Range

- 65 to + 125

- 65 to + 150

°C

Storage Temperature Range

- 65 to + 150

°C

Notes :

(1) Pulse Test : Pulse Width = 300

µs, Duty Cycle = 2%.

UPDATE : SEPTEMBER 12, 1998

RATING

2.0

± 0.2

2.1

± 0.2

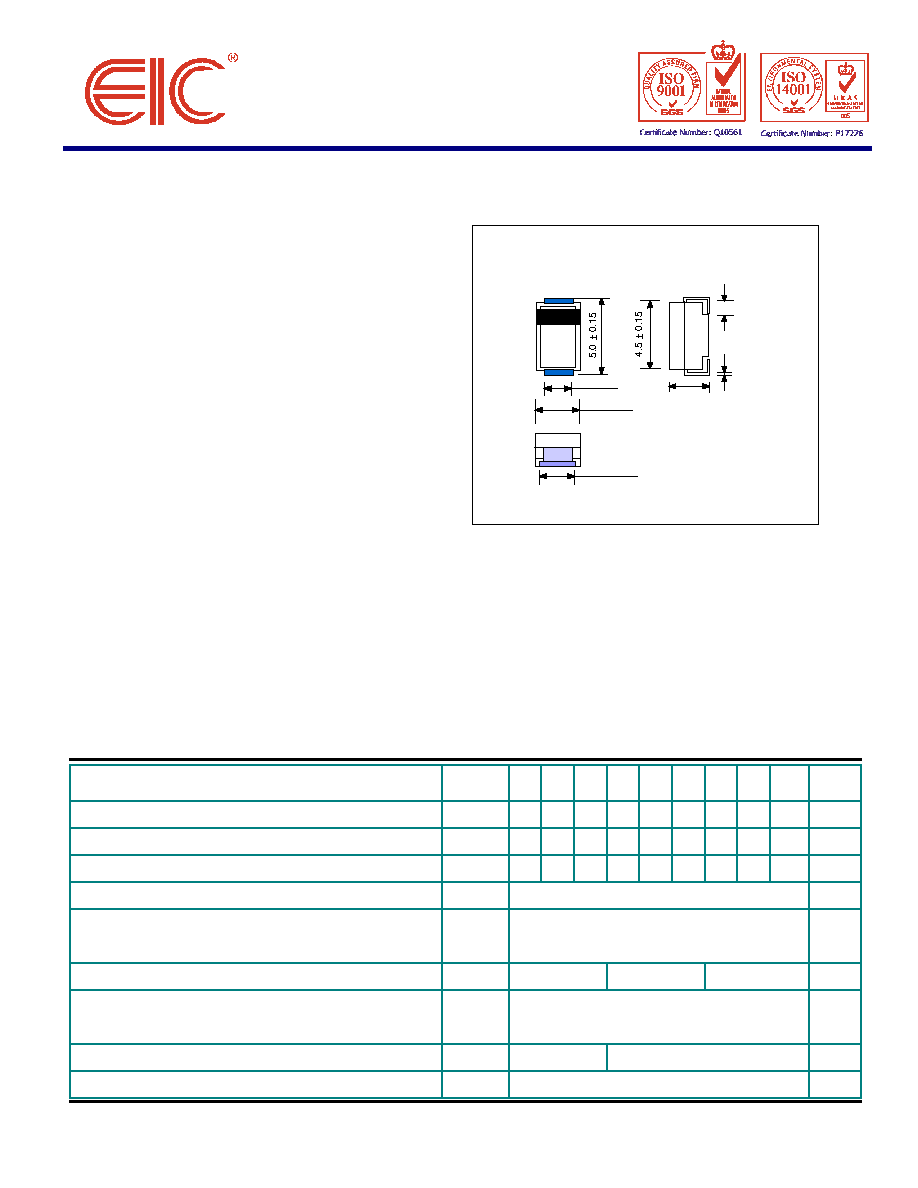

SMA (DO-214AC)

1.2

± 0.2

2.6

± 0.15

Dimensions in millimeter

1.1

±

0.2

± 0.07
