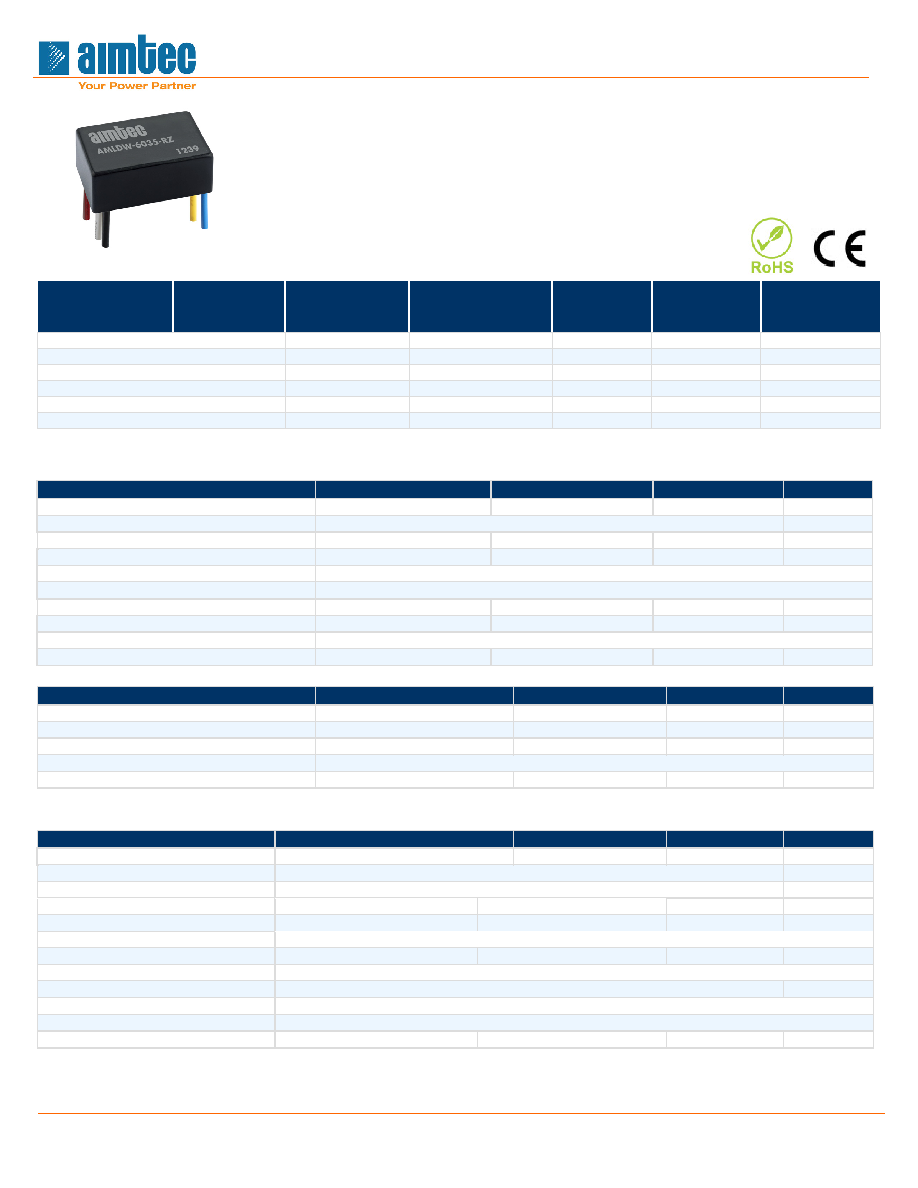

Series AMLDW-RZ

Up to 1000mA | LED Driver

www.aimtec.com

Tel: +1 514 620 2722

Toll free: + 1 888 9 AIMTEC

(924 6832)

F 051e R12.C

1 of 3

North America only

FEATURES:

Models

Single output

Model

Input Voltage

(V)

Output Voltage

(V)

Maximum Rated

Current (mA)

Max

Capacitive

Load (uF)

Efficiency

(%)

Ripple &

Noise

(mV p-p)

AMLDW-6030-RZ

9-60

2-56

300

2.2

97

250

AMLDW-6035-RZ

9-60

2-56

350

2.2

97

300

AMLDW-6050-RZ

9-60

2-56

500

2.2

97

350

AMLDW-6060-RZ

9-60

2-56

600

2.2

97

400

AMLDW-6070-RZ

9-60

2-56

700

2.2

97

400

AMLDW-60100-RZ

9-60

2-56

1000

2.2

97

450

NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at

rated output load unless otherwise specified.

Input Specifications

Parameters

Nominal

Typical

Maximum

Units

Voltage range

48

9-60

VDC

Filter

Capacitor

Absolute Maximum Rating

65

VDC

Peak Input Voltage time

500

ms

DC/DC ON (Leave open if not used)

ON –Open or 2.5V< Vadj <5V

DC/DC OFF (or short pins 2,3,4)

OFF(shutdown) – Vadj <0.8

Maximum Remote pin drive current

Vadj = 0 - 5V

<1

mA

Quiescent Current in Shutdown mode

Vin = 60V

3

mA

On/Off Control (Digital Control)

Max PWM Frequency 1KHz

Output current adjustment

1 to 100

%

Output Specifications

Parameters

Conditions

Typical

Maximum

Units

Current accuracy

±5

%

Output Voltage range

V input = 60V

2-56

VDC

Output current

Vin – Vout > 4V

Short Circuit protection

Regulated at the rated current for each model

Temperature coefficient

±0.03

General Specifications

Parameters

Conditions

Typical

Maximum

Units

Switching frequency

100% load

40-1000

KHz

Operating temperature

See derating chart -40 to +85

Storage temperature

-40 to +125

Maximum case temperature

105

Thermal Impedance

Free air convection

+30

Cooling

Free air convection

Humidity

95

% RH

Case material

Non-Conductive Black Plastic (UL94V-0 rated)

Weight

17.7

g

1.25 x 0.80 x 0.49 inches

31.75 x 20.32 x 12.45 mm

MTBF

Maximum Soldering Temperature

1.5 mm from case for 10sec.

260

NOTES:

1. Reversed polarity at the input power will damage the driver. The input ground must not be connected to the negative output.

•

Step Down DC/DC LED driver

•

Operating Temperature range -40ºC to +85ºC

•

Constant current output

•

Open and Short LED Protection

•

Ultra Wide (7:1) input voltage range

•

PWM / Digital Voltage dimming

•

High efficiency up to 97%

•

IP67 Case

•

Output power up to 56 Watts

Click on Series name for product info on aimtec.com
