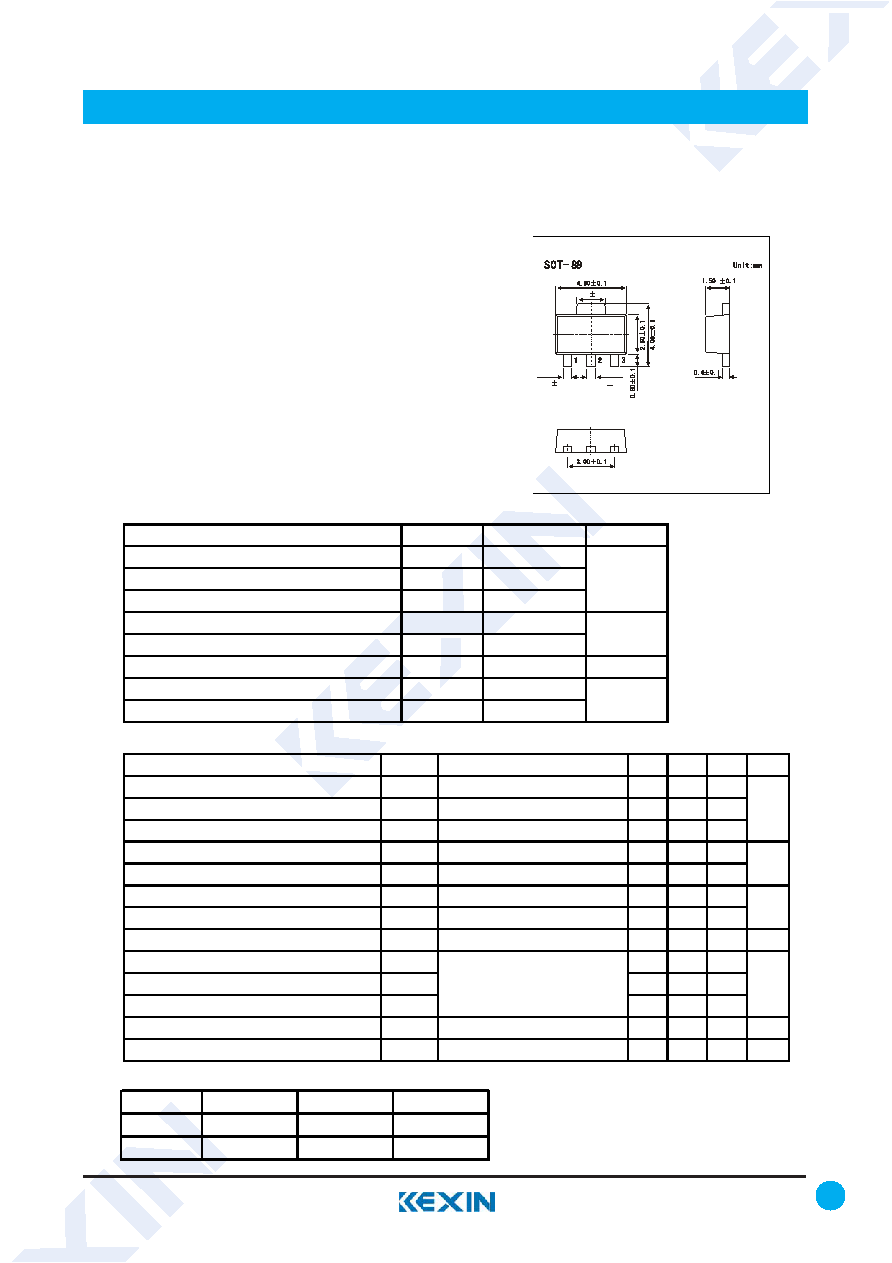

background image
SMD Type
www.kexin.com.cn
1
Transistors
NPN Transistors
2SC3647
■
Features
●
High breakdown voltage and large current capacity.
●
Complementary to 2SA1417
1.Base
2.Collector
3.Emitter
1.70 0.1
0.42 0.1
0.46 0.1
■
Absolute Maximum Ratings Ta = 25℃
Parameter
Symbol
Rating
Unit
Collector - Base Voltage
VCBO
120
Collector - Emitter Voltage
VCEO
100
Emitter - Base Voltage
VEBO
6
Collector Current - Continuous
IC
2
Peak Collector Current
ICM
3
Collector Power Dissipation
PC
500
mW
Junction Temperature
TJ
150
Storage Temperature Range
Tstg
-55 to 150
V
℃
A
■
Electrical Characteristics Ta = 25℃
Parameter
Symbol
Test Conditions
Min
Typ
Max
Unit
Collector- base breakdown voltage
VCBO
Ic= 100 μA， IE= 0
120
Collector- emitter breakdown voltage
VCEO
Ic= 1 mA，RBE= ∞
100
Emitter - base breakdown voltage
VEBO
IE= 100μA， IC= 0
6
Collector-base cut-off current
ICBO
VCB= 100 V , IE= 0
0.1
Emitter cut-off current
IEBO
VEB= 4V , IC=0
0.1
Collector-emitter saturation voltage
VCE(sat) IC=1A, IB=100mA
0.13
0.4
Base - emitter saturation voltage
VBE(sat) IC=1A, IB=100mA
0.85
1.2
DC current gain
hFE
VCE= 5V, IC= 100mA
100
400
Turn-ON Time
ton
80
Storage Time
tstg
1000
Fall Time
tf
50
Collector output capacitance
Cob
VCB= 10V,f=1MHz
16
pF
Transition frequency
fT
VCE= 10V, IC= 100mA
120
MHz
V
uA
V
See sepcified Test Circuit.
ns
■
Classification of hfe
Type
2SC3647-R
2SC3647-R
2SC3647-T
Range
100-200
140-280
200-400
Marking
CCR
CCS
CCT
