2SC2734-R25 Datasheet(PDF) 1 Page - Guangdong Kexin Industrial Co.,Ltd |
|
|
|||||||||||||||||||||||||||||
2SC2734-R25 Datasheet(HTML) 1 Page - Guangdong Kexin Industrial Co.,Ltd |
|
|

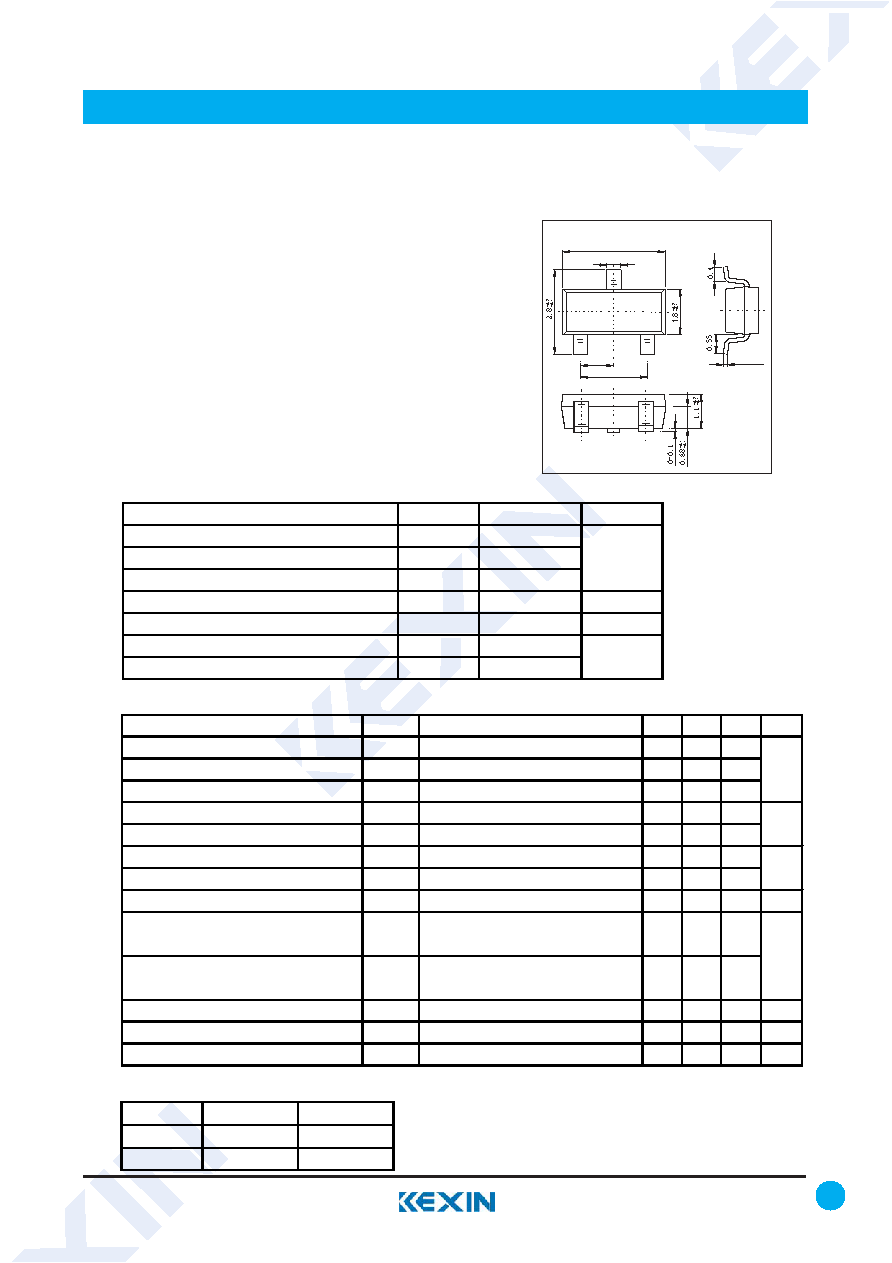

1 / 3 page  SMD Type www.kexin.com.cn 1 Transistors NPN Transistors 2SC2734 ■ Features ● Collector Current Capability IC=50mA ● Collector Emitter Voltage VCEO=11V 0.4 +0.1 -0.1 2.9 +0.2 -0.1 0.95 +0.1 -0.1 1.9 +0.1 -0.2 1 2 3 Unit: mm SOT-23-3 1. Base 2. Emitter 3. Collector 0.15 +0.02 -0.02 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Collector - Base Voltage VCBO 20 Collector - Emitter Voltage VCEO 11 Emitter - Base Voltage VEBO 3 Collector Current - Continuous IC 50 mA Collector Power Dissipation PC 150 mW Junction Temperature TJ 150 Storage Temperature Range Tstg -55 to 150 V ℃ ■ Electrical Characteristics Ta = 25℃ Parameter Symbol Test Conditions Min Typ Max Unit Collector- base breakdown voltage VCBO Ic= 100 μA， IE= 0 20 Collector- emitter breakdown voltage VCEO Ic= 1 mA， RBE =∞ 11 Emitter - base breakdown voltage VEBO IE= 100μA， IC= 0 3 Collector-base cut-off current ICBO VCB= 20 V , IE= 0 0.5 Emitter cut-off current IEBO VEB= 3V , IC=0 0.1 Collector-emitter saturation voltage VCE(sat) IC=10 mA, IB=5mA 0.7 Base - emitter saturation voltage VBE(sat) IC=10 mA, IB=5mA 1.2 DC current gain hFE VCE= 10V, IC= 5mA 20 200 Conversion gain CG VCC = 6 V, IC = 2 mA, f=900 MHz, fOSC = 930 MHz (0dBm), fout = 30 MHz 15 Noise figure NF VCC = 6 V, IC = 2 mA, f=900 MHz, fOSC = 930 MHz (0dBm), fout = 30 MHz 9 Oscillating output voltage VOSC VCC = 6 V, IC = 5 mA,f = 930 MHz 140 mV Collector output capacitance Cob VCB= 10V, IE= 0,f=1MHz 1.5 pF Transition frequency fT VCE= 10V, IC= 10mA 1.4 3.5 GHz V V uA dB ■ Classification of hfe Type 2SC2734-GC 2SC2734-R25 Range 20-200 100-200 Marking GC R25. |
