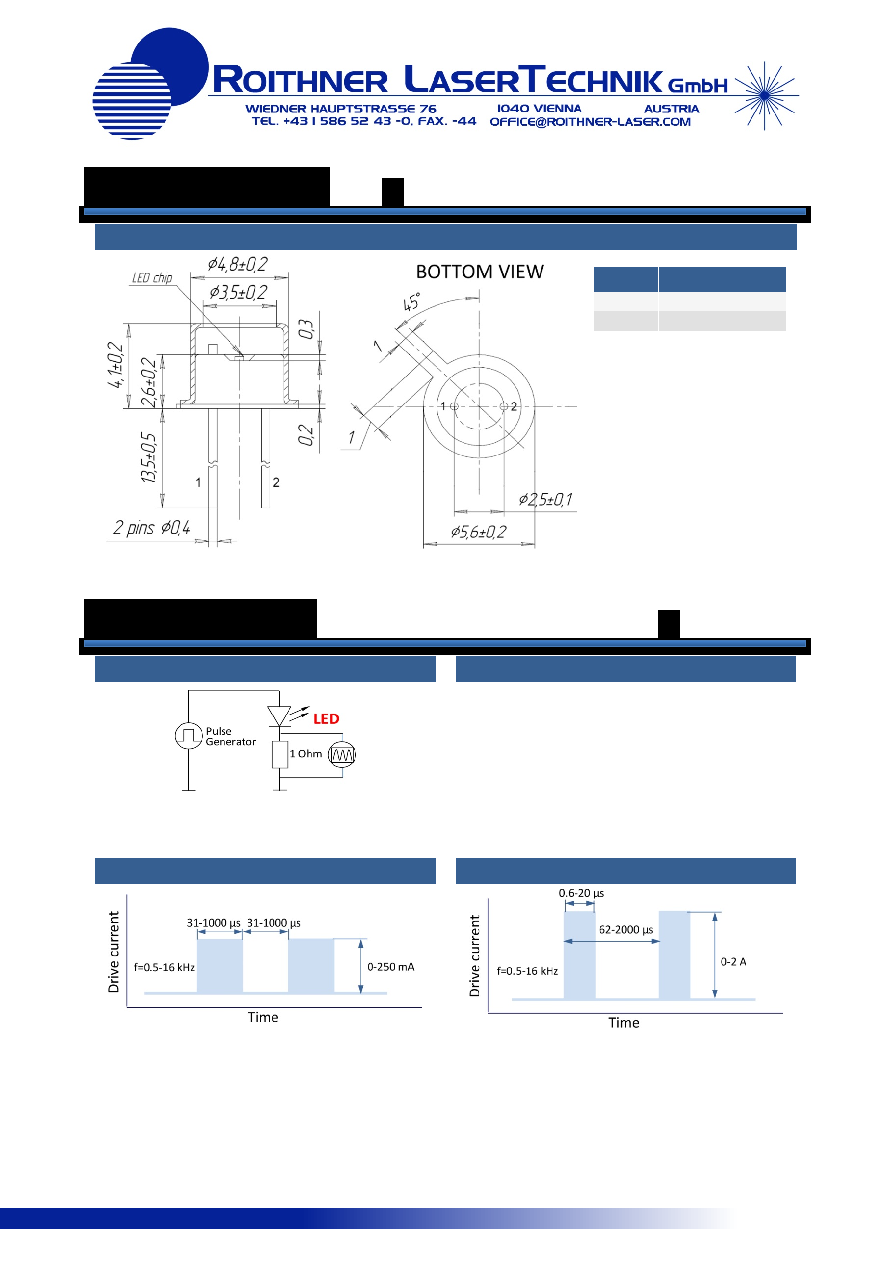

Outline Dimensions

All Dimensions in mm

Operating Regime

We recommend to use Quasi Continuous Wave (qCW) mode with duty cycle 50% or 25% to obtain maximum

average optical power, and short Pulse mode to obtain maximum peak power.

CW (continuous wave) mode is NOT recommended!

LED23

TO-18, without window

Material – kovar, finish – gold/plating

Lead

Description

PIN 1

LD Anode

PIN 2

LD Cathode

LED Basic Circuit Connection

Suitable Drivers And Evaluation Boards

•

D-31M

•

D-41

•

D-51

•

mD-1c

•

mD-1p

Quasi Continuous Wave (qCW) mode

Pulse Mode
