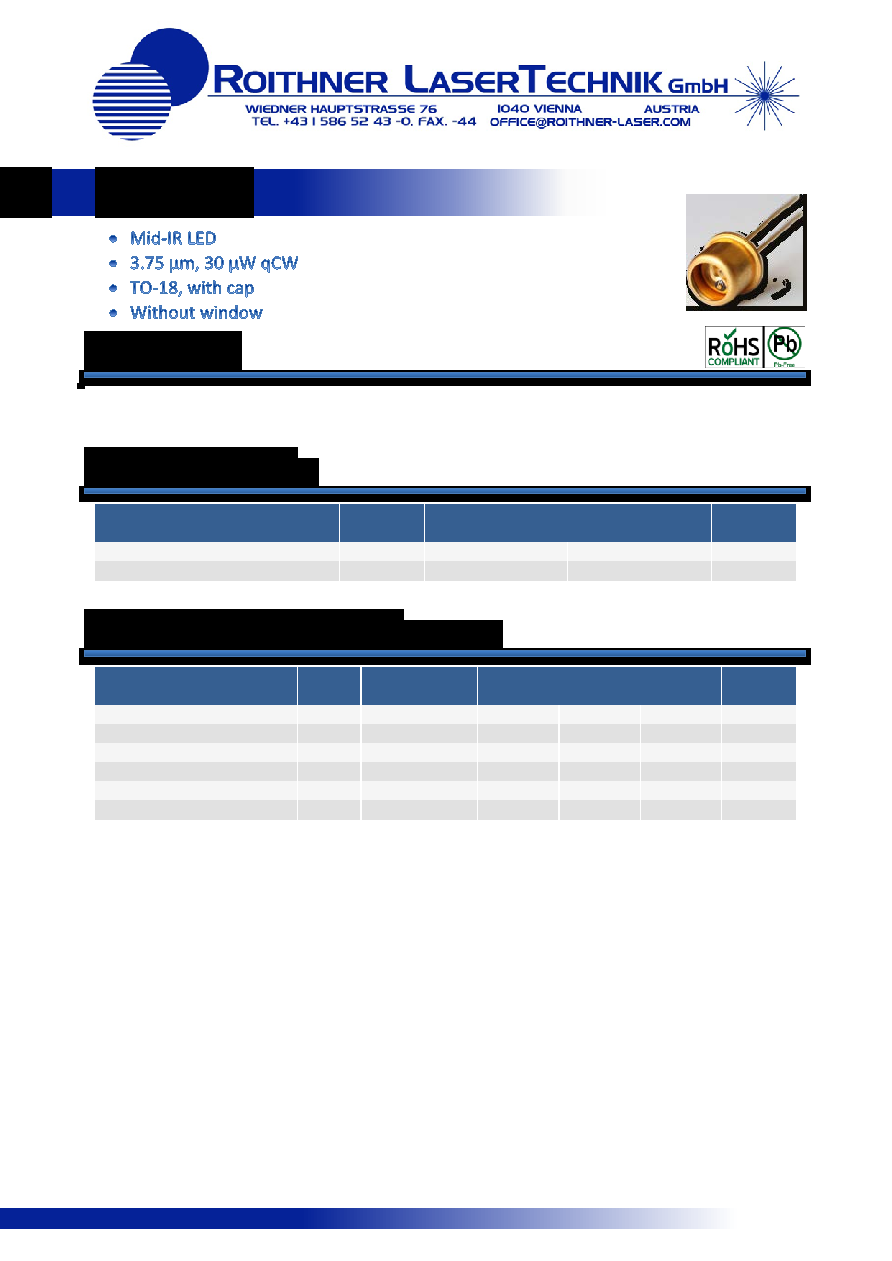

LED38
v 2.0 01.12.2014
Description
LED19-PR series are fabricated from narrow band-gap InAsSb/InAsSbP heterostructures lattice matched
to InAs substrate. This Mid-IR LED provides a typical peak wavelength of 3.75 µm and optical power of
typ. 30 µW qCW. It comes in TO-18 package, with cap and without window (on request).
Maximum Ratings
Parameter
Symbol
Values
Min.
Max.
Unit
Operating Temperature
TCASE
- 200
+ 50
°C
Lead Solder Temperature *
TSLD
+ 180
°C
* must be completed within 5 seconds
Photodiode Characteristics (T
CASE=25°C)
Parameter
Symbol
Conditions
Values
Min.
Typ.
Max.
Unit
Peak Wavelength
λP
IF=150mA qCW
3.70
3.75
3.84
µm
Half Width (FWHM)
∆λ
IF=150mA qCW
500
600
700
µm
Optical Output Power, qCW
PO
IF=200mA qCW
20
30
40
µW
Optical Output Power, pulsed
PO
IF=1A, f=1kHz,
d t
l 0 1%
180
200
220
µW
Operating Voltage
VOP
IF=200mA qCW
0.5
0.8
V
Switching Time
ts
10
20
30
ns
