LM4880
CMOS IC
UNISONICTECHNOLOGIESCO.,LTD
10 of 11
www.unisonic.com.tw
QW-R502-033. E

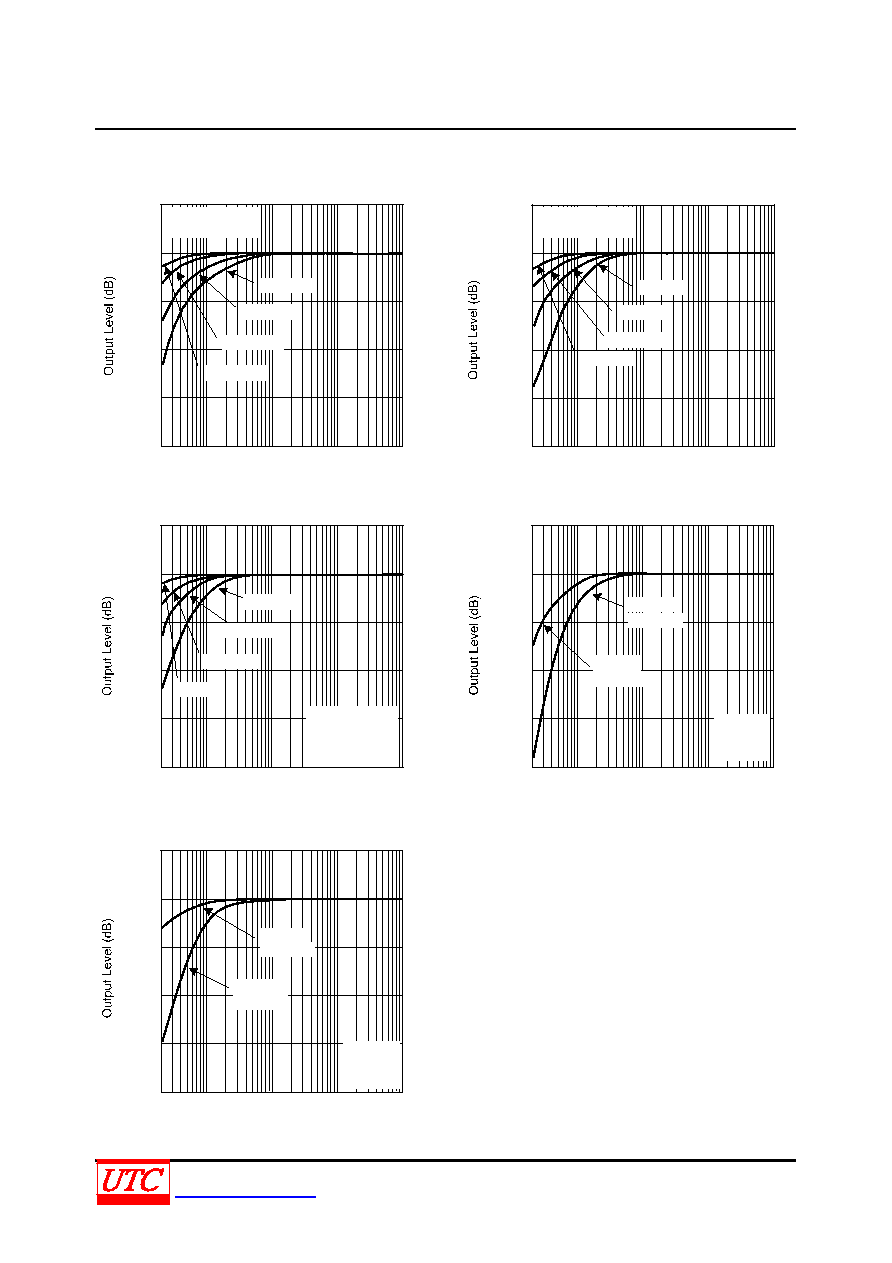

TYPICAL CHARACTERISTICS(Cont.)
Frequency Response vs. Output Capacitor Size
-20.00
-15.00
-10.00
-5.000
0.0
5.0000
20
100
10k
100k
1k
Frequency (Hz)
Frequency Response vs. Output Capacitor Size
-20.00
-15.00
-10.00
-5.000
0.0
5.0000
20
100
10k
100k
1k
Frequency (Hz)
Frequency Response vs Input Capacitor Size
-20.00
-15.00
-10.00
-5.000
0.0
5.0000
20
100
10k
100k
1k
Frequency (Hz)
Typical Application Frequency Response
-20.00
-15.00
-10.00
-5.000
0.0
5.0000
20
100
10k
100k
1k
Frequency (Hz)
i
Typical Application Frequency Response
-20.00
-15.00
-10.00
-5.000
0.0
5.0000
20
100
10k
100k
1k
Frequency (Hz)
RI=20kΩ, RL=8Ω
GV=-1, CI=10µF
CO=220µF
CO=470µF
CO=1000µF
CO=2200µF
CO=47µF
CO=100µF
CO=220µF
CO=470µF
CI=0.1µF
CI=0.22µF
CI=0.47µF
CI=1.0µF
CI=0.1µF
CO=470µF
CI=1.0µF
CO=470µF
CO=220µF
CI=0.1µF
CO=220µF
CI=1.0µF
RI=20kΩ, RL=32Ω
GV=-1, CI=10µF
GV=-1
RI=20kΩ
RL=32Ω
GV=-1
RI=20kΩ
RL=8Ω
GV=-1
RI=20kΩ
COUT=10000µF
RL=8Ω
