M1008
Preliminary
CMOS IC
UNISONICTECHNOLOGIESCO.,LTD
10 of 11
www.unisonic.com.tw
QW-R502-434.a

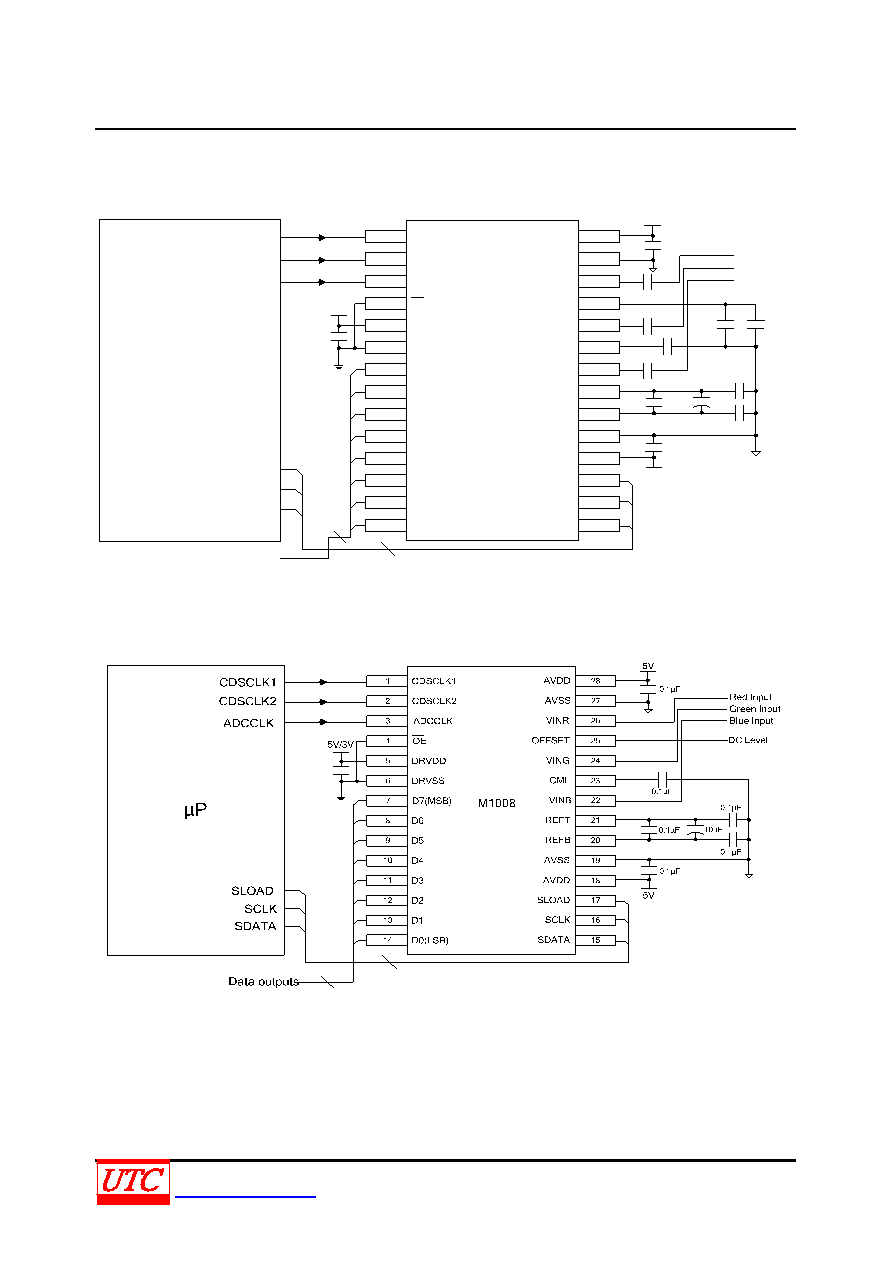

TYPICAL APPLICATIONS CIRCUIT
CDS Mode
1
CDSCLK1
2
CDSCLK2
3
ADCCLK
4
OE
5
DRVDD
6
DRVSS
7
D7(MSB)
8
D6
9
D5
10
D4
11
D3
12
D2
13
D1
14
D0(LSB)
28
AVDD
27
AVSS
26
VINR
25
OFFSET
24
VING
23
CML
22
VINB
21
REFT
20
REFB
19
AVSS
18
AVDD
17
SLOAD
16
SCLK
15
SDATA
µP
5V/3V
Data outputs
5V
0.1µF
0.1µF
10µF
0.1µF
0.1µF
5V
0.1µF
0.1µF
0.1µF
1µF
0.1µF
0.1µF
0.1µF
Red Input
Green Input
Blue Input
CDSCLK1
CDSCLK2
ADCCLK
SLOAD
SCLK
SDATA
M1008
SHA Mode
