CONREVSMA012-R58 Datasheet(PDF) 1 Page - List of Unclassifed Manufacturers

Part # CONREVSMA012-R58
Description  RP-SMA MALE RIGHT ANGLE CABLE END CRIMP FOR RG58 CABLE
PDF  1 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  ETC2 [List of Unclassifed Manufacturers]
Direct Link
Logo ETC2 - List of Unclassifed Manufacturers

CONREVSMA012-R58 Datasheet(HTML) 1 Page - List of Unclassifed Manufacturers

  CONREVSMA012-R58 Datasheet HTML 1Page - List of Unclassifed Manufacturers
Zoom Inzoom in Zoom Outzoom out
 1 / 1 page
background image
A
B
C
D
4
3
2
1
D
C
B
A
1
2
4
3

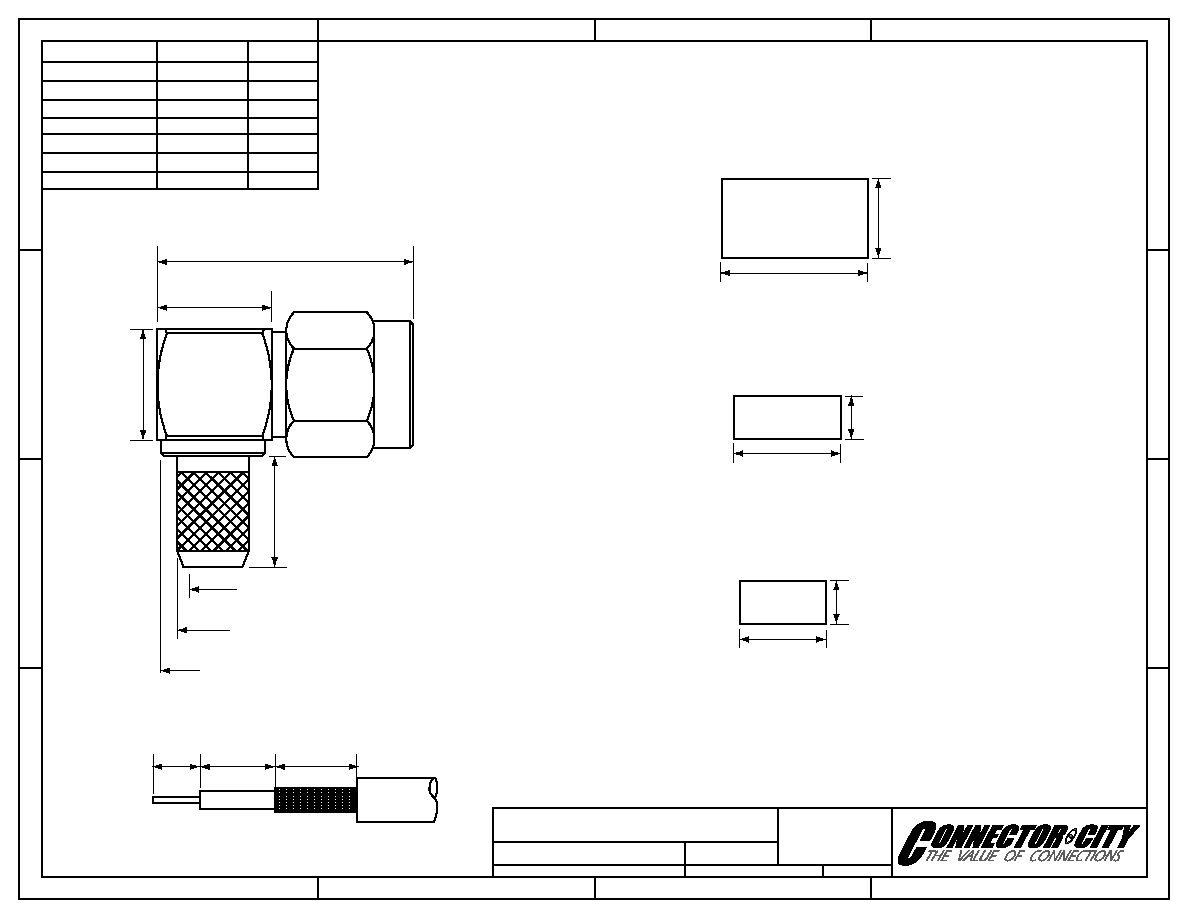

RP-SMA MALE RIGHT ANGLE
CABLE END CRIMP FOR RG58 CABLE
0.185
(4.70)
0.051
(1.30)
WASHER
0.146
(3.70)
0.055
(1.40)
INSULATOR
0.500
(12.70)
0.256
(6.50)
CRIMP RING
0.256
(6.50)
0.177
(4.50)
RECOMMENDED CABLE STRIPPING DIMENSIONS
0.098
(2.50)
RG-58 Cable
Description
Material
Finish
Body
Socket
Insulation
Nickel
Teflon
Gold
Teflon
Brass
BE CU
Washer
PH Bronze
Gold
Gasket
Rubber
SI Rubber
Crimp Ring
Nickel
Brass
CONNECTOR CITY
159 ORT LANE
MERLIN, OR 97532
PH (541)-471-6256
FAX (541)-471-6251
Date:
Sheet 1 of 1
Revision:
Title
Part No.
Dimensions:
CONREVSMA012-R58
1.0
INCHES (mm)
6/1/2006
0.276
(7.00)
0.650
(16.50)
S0.287
(7.30)
Ø0.124
(3.15)
Ø0.177
(4.50)
Ø0.260
(6.60)
1/4"-36UNS-2A
THREADS
Insulator
Teflon
Teflon
SIDE VIEW
S0.287
(7.30)


Similar Part No. - CONREVSMA012-R58
