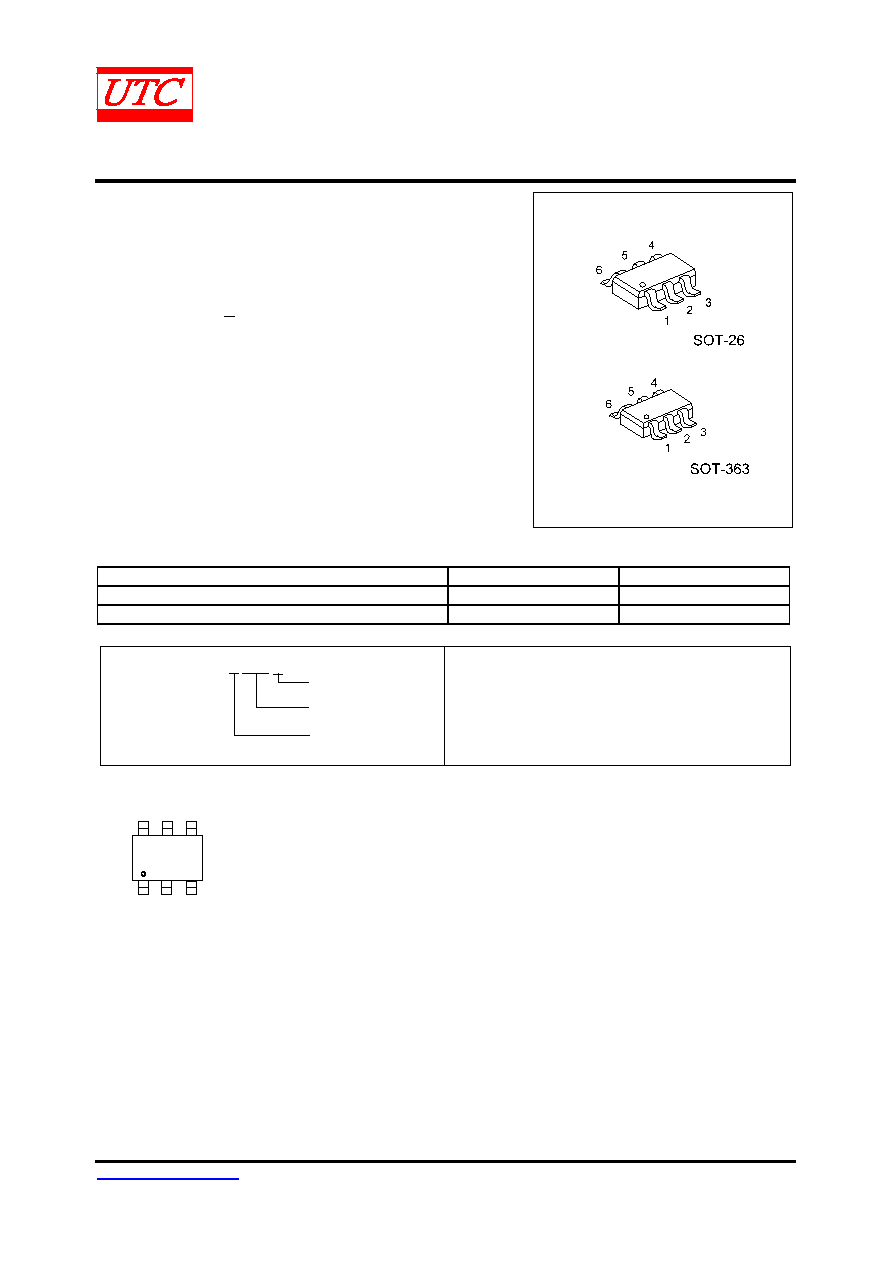

UNISONIC TECHNOLOGIES CO., LTD
U74LVC2G04
CMOS IC
www.unisonic.com.tw
1 of 5
Copyright © 2015 Unisonic Technologies Co., Ltd
QW-R502-393.B
DUAL INVERTER
DESCRIPTION
The U74LVC2G04 is a dual inverter gate and it provides the
Boolean function Y=
A in positive logic.
This device has power-down protective circuit to prevent the device
from destruction when it is powered down.
FEATURES
* Operate From 1.65V To 5.5V
* Inputs Accept Voltages To 5.5V
* High Noise Immunity
* Low Power Dissipation
* Max tPD Of 3.2 ns At 5V
ORDERING INFORMATION
Ordering Number
Package
Packing
U74LVC2G04G-AG6-R
SOT-26
Tape Reel
U74LVC2G04G-AL6-R
SOT-363
Tape Reel
U74LVC2G04G-AG6-R
(1)Packing Type
(2)Package Type
(3)Green Package
(1) R: Tape Reel
(2) AG6: SOT-26, AL6: SOT-363
(3) G: Halogen Free and Lead Free
MARKING
204G
12
3
4
5
6
