UNISONIC TECHNOLOGIES CO., LTD

U74LVC1G09

CMOS IC

www.unisonic.com.tw

1 of 5

Copyright © 2012 Unisonic Technologies Co., Ltd

QW-R502-820.A

SINGLE 2-INPUT

POSITIVE-AND GATE WITH

OPEN-DRAIN OUTPUT

DESCRIPTION

The U74LVC1G09 is a single 2-input AND gate with

open-drain output . It performs the Boolean function Y= A B

• or

Y = A+ B in positive logic . For digital operation this device must

have a external pull-up resistor to establish a logic HIGH-level.

This device has power-down protective circuit, preventing

device destruction when it is powered down.

FEATURES

* Operate from 1.65V to 5.5V

* Inputs accept voltages to 5.5V

* Low power dissipation

* High noise immunity

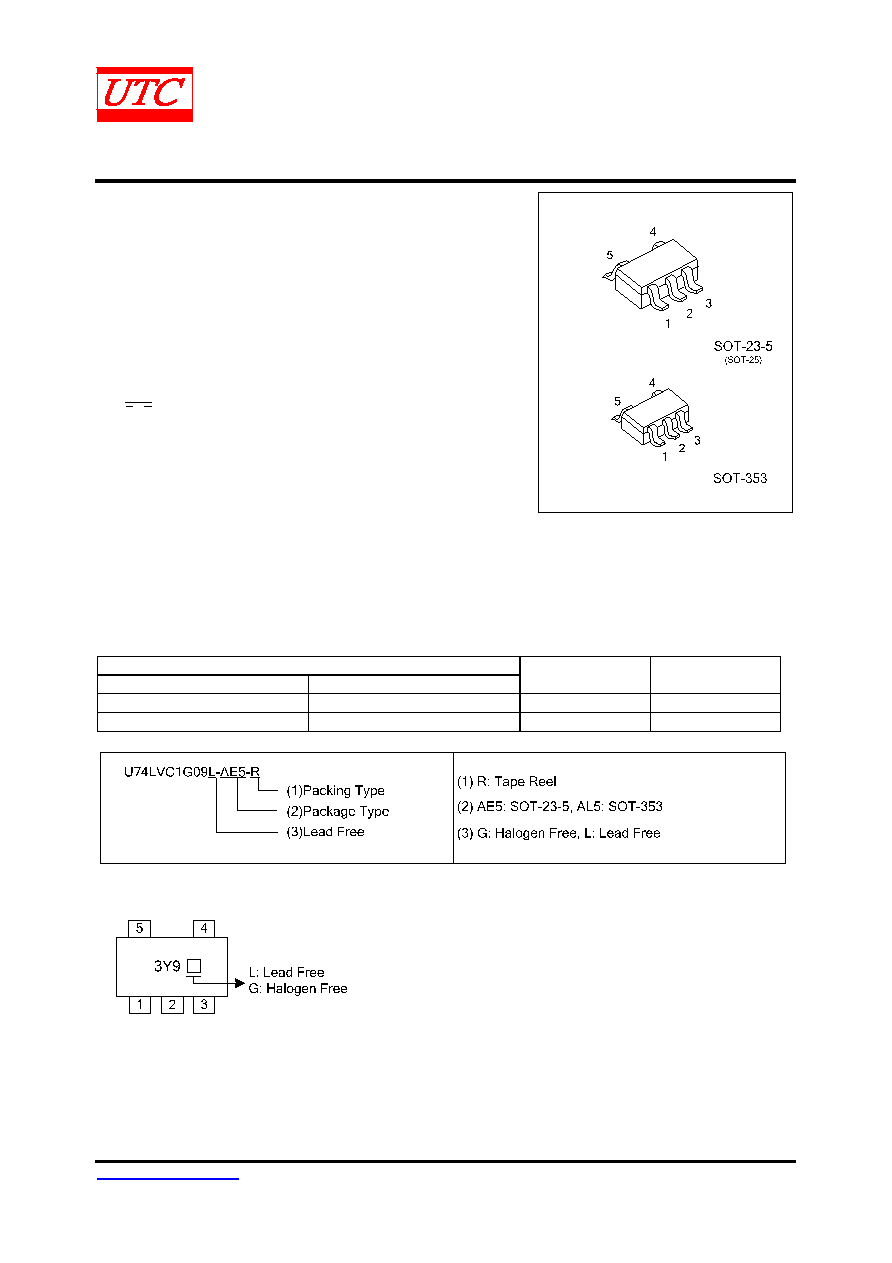

ORDERING INFORMATION

Ordering Number

Package

Packing

Lead Free

Halogen Free

U74LVC1G09L-AE5-R

U74LVC1G09G-AE5-R

SOT-23-5

Tape Reel

U74LVC1G09L-AL5-R

U74LVC1G09G-AL5-R

SOT-353

Tape Reel

MARKING
