VF8143GS08-R Datasheet(PDF) 2 Page - Unisonic Technologies |
|
|
|||||||||||||||||||||||||||||
VF8143GS08-R Datasheet(HTML) 2 Page - Unisonic Technologies |
|
|

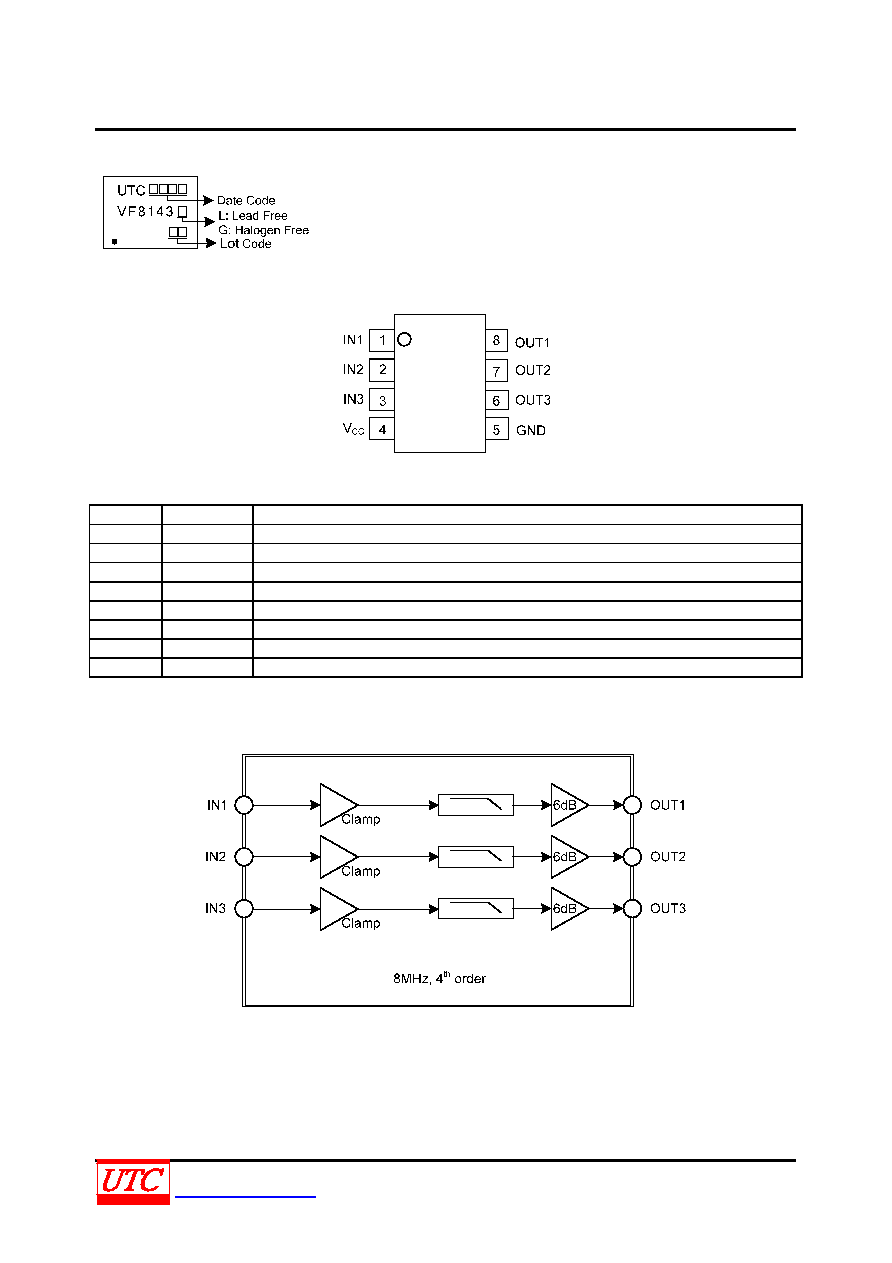

2 / 4 page  VF8143 Preliminary CMOS IC UNISONICTECHNOLOGIESCO.,LTD 2 of 4 www.unisonic.com.tw QW-R502-956.b MARKING PIN CONFIGURATION PIN DESCRIPTION PIN NO. PIN NAME DESCRIPTION 1 IN1 Video input, Channel 1 2 IN2 Video input, Channel 2 3 IN3 Video input, Channel 3 4 VCC +5V supply, do not float 5 GND Must be tied to ground, do not float 6 OUT3 Filtered output, Channel 3 7 OUT2 Filtered output, Channel 2 8 OUT1 Filtered output, Channel 1 BLOCK DIAGRAM |
|
|
