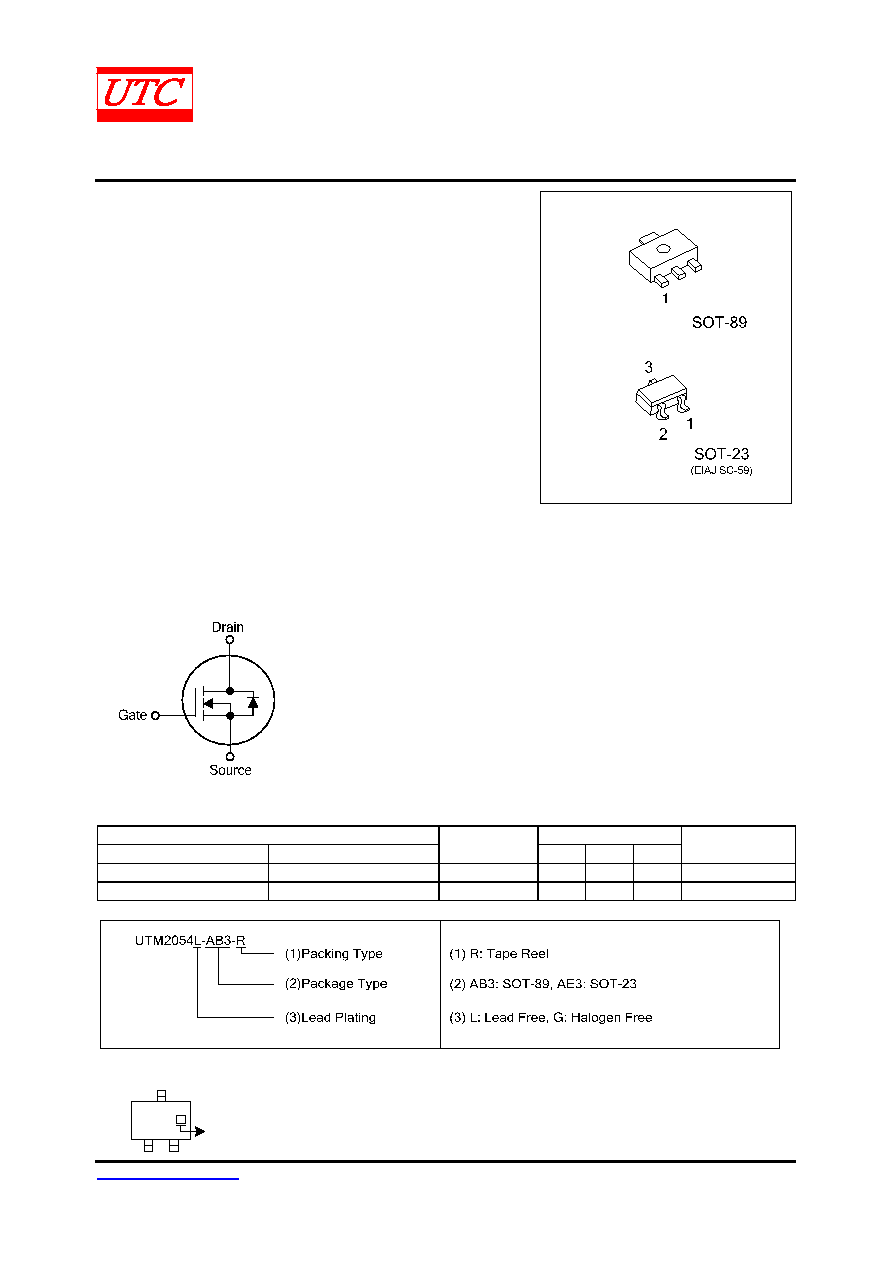

UNISONIC TECHNOLOGIES CO., LTD

UTM2054

Power MOSFET

www.unisonic.com.tw

1 of 4

QW-R502-289.B

N-CHANNEL ENHANCEMENT

MODE

DESCRIPTION

The UTM2054 uses advanced trench technology to provide

excellent RDS(ON), low gate charge and operation with low gate

voltages. This device is suitable for use as a load switch or in

PWM applications.

FEATURES

* RDS(ON)= 35mΩ @VGS=10V

* RDS(ON)= 45mΩ @VGS=4.5V

* RDS(ON)= 110mΩ @VGS=2.5V

* Ultra low gate charge ( typical 11.5 nC )

* Low reverse transfer capacitance ( CRSS = typical 60 pF )

* Fast switching capability

* Avalanche energy specified

* Improved dv/dt capability, high ruggedness

SYMBOL

ORDERING INFORMATION

Ordering Number

Package

Pin Assignment

Packing

Lead Free

Halogen Free

1

2

3

UTM2054L-AB3-R

UTM2054G-AB3-R

SOT-89

G

D

S

Tape Reel

UTM2054L-AE3-R

UTM2054G-AE3-R

SOT-23

S

G

D

Tape Reel

MARKING (For SOT-23 Package)

M054

L: Lead Free

G: Halogen Free
