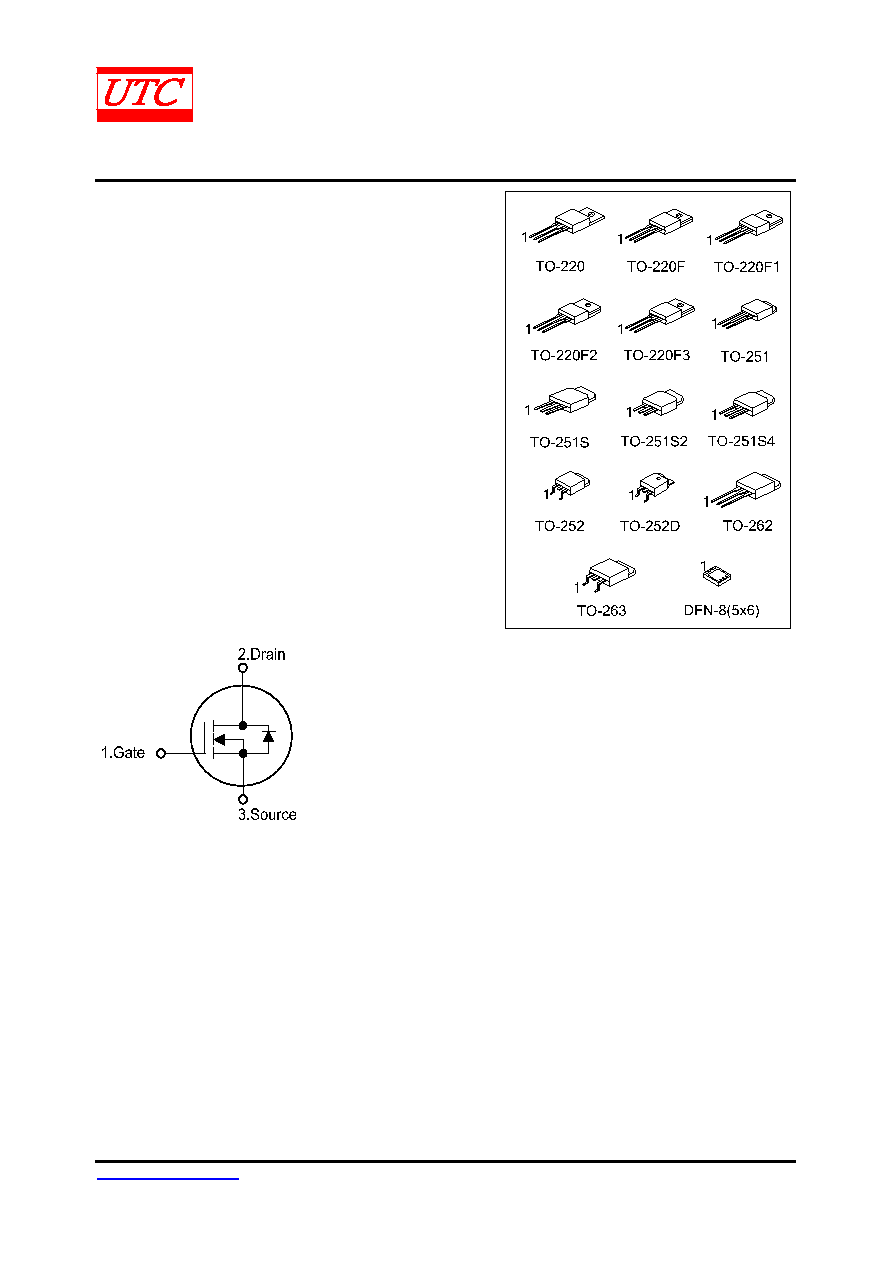

UNISONIC TECHNOLOGIES CO., LTD

4N65

Power MOSFET

www.unisonic.com.tw

1 of 9

QW-R502-397.N

4A, 650V N-CHANNEL

POWER MOSFET



DESCRIPTION

The UTC 4N65 is a high voltage power MOSFET

designed to have better characteristics, such as fast

switching time, low gate charge, low on-state resistance and

have a high rugged avalanche characteristic. This power

MOSFET is usually used in high speed switching applications

including power supplies, PWM motor controls, high efficient

DC to DC converters and bridge circuits.



FEATURES

* RDS(ON) < 2.5Ω @ VGS = 10 V, ID = 2.2A

* Fast Switching Capability

* Avalanche Energy Specified

* Improved dv/dt Capability, High Ruggedness



SYMBOL
