ML6509 Datasheet(PDF) 8 Page - Micro Linear Corporation

Part # ML6509
Description  Active SCSI Terminator
PDF  10 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  MICRO-LINEAR [Micro Linear Corporation]
Direct Link  http://www.microlinear.com
Logo MICRO-LINEAR - Micro Linear Corporation

ML6509 Datasheet(HTML) 8 Page - Micro Linear Corporation

Back Button ML6509 Datasheet HTML 2Page - Micro Linear Corporation ML6509 Datasheet HTML 3Page - Micro Linear Corporation ML6509 Datasheet HTML 4Page - Micro Linear Corporation ML6509 Datasheet HTML 5Page - Micro Linear Corporation ML6509 Datasheet HTML 6Page - Micro Linear Corporation ML6509 Datasheet HTML 7Page - Micro Linear Corporation ML6509 Datasheet HTML 8Page - Micro Linear Corporation ML6509 Datasheet HTML 9Page - Micro Linear Corporation ML6509 Datasheet HTML 10Page - Micro Linear Corporation
Zoom Inzoom in Zoom Outzoom out
 8 / 10 page
background image
8
ML6509
Conditions
Low Cable impedance of 55
W (worst case)
tD = 10ns
10 segment distributed L-C, SCSI Bus Model
Driver end of cable not terminated
DRIVER
END
TERMINATOR
END
DRIVER
END
TERMINATOR
END
2V
0.8V
2V
0.8V
2V
0.8V
2V
0.8V
TIME (SECONDS)
TIME (SECONDS)
100ns
200ns
300ns
100ns
200ns
300ns
ML6509 SCSI TERMINATOR
BOULAY TERMINATOR

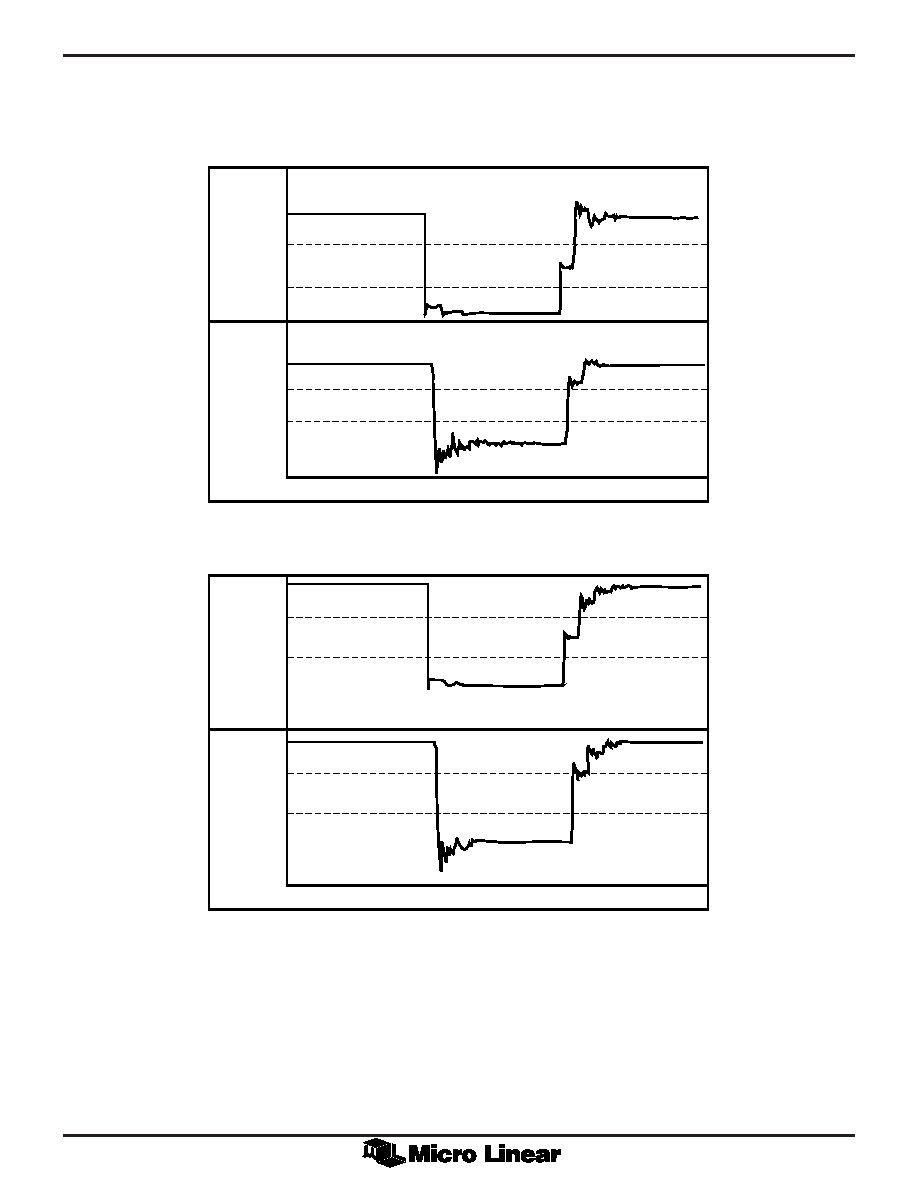

Figure 6a. Signal Assertion/Negation Waveforms (Simulated)
