SD7030-7R3-R Datasheet(PDF) 2 Page - List of Unclassifed Manufacturers

Part # SD7030-7R3-R
Description  Low-Profile Shielded Drum Inductors
PDF  4 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  ETC2 [List of Unclassifed Manufacturers]
Direct Link
Logo ETC2 - List of Unclassifed Manufacturers

SD7030-7R3-R Datasheet(HTML) 2 Page - List of Unclassifed Manufacturers

  SD7030-7R3-R Datasheet HTML 1Page - List of Unclassifed Manufacturers SD7030-7R3-R Datasheet HTML 2Page - List of Unclassifed Manufacturers SD7030-7R3-R Datasheet HTML 3Page - List of Unclassifed Manufacturers SD7030-7R3-R Datasheet HTML 4Page - List of Unclassifed Manufacturers
Zoom Inzoom in Zoom Outzoom out
 2 / 4 page
background image

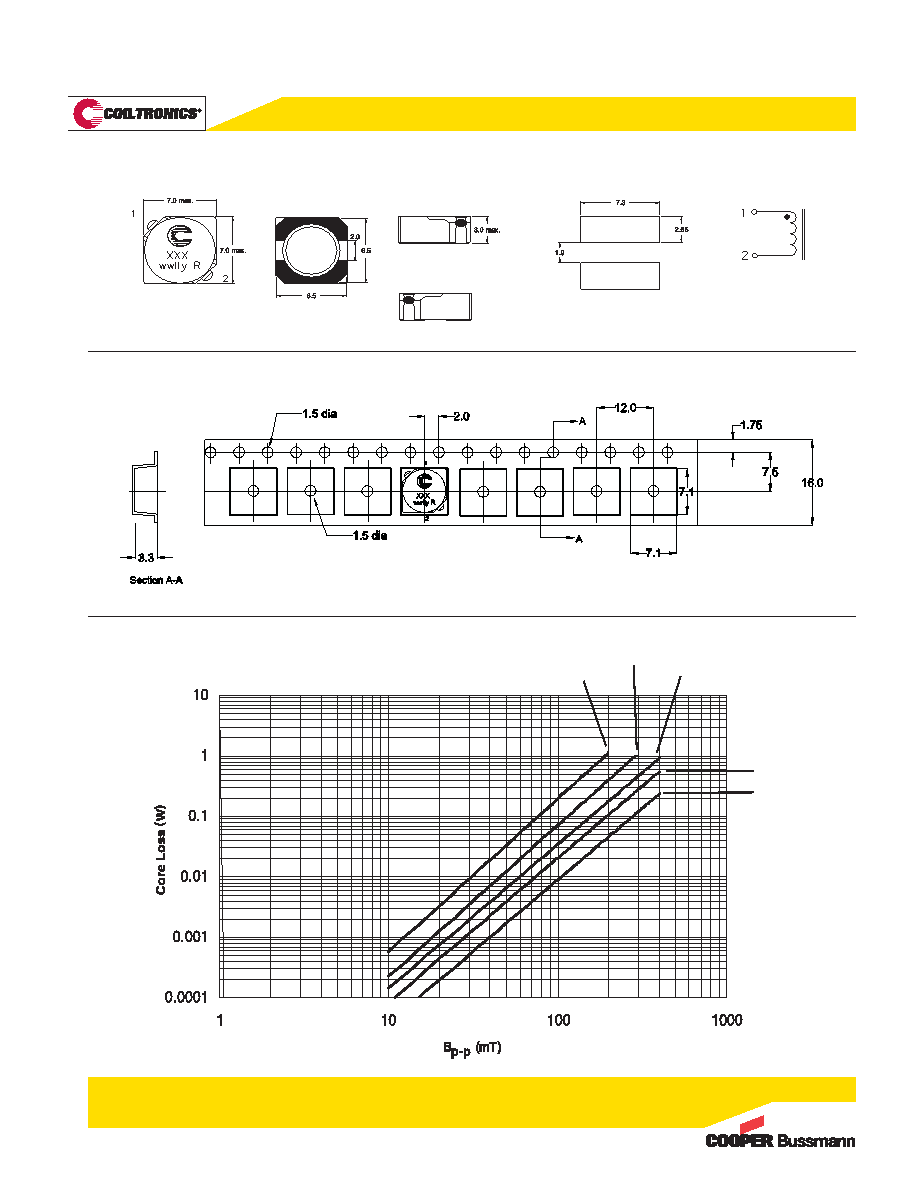

Dimensions - mm
Top View
Bottom View
Front View
Recommended Pad Layout
Schematic
Left View
1MHz
500kHz
300kHz
100kHz
200kHz
Part Marking: Coiltronics Logo
xxx = inductance value in
μH. R = decimal point. If no “R” is present, third character = # of zeros. wwlly or wwllyy = date code. R = revision level
Supplied in tape-and-reel packaging, 1500 parts per reel, 13” diameter reel.
Packaging Information - mm
Core Loss
1011
BU-SB111167
Page 2 of 4
Data Sheet: 4330
