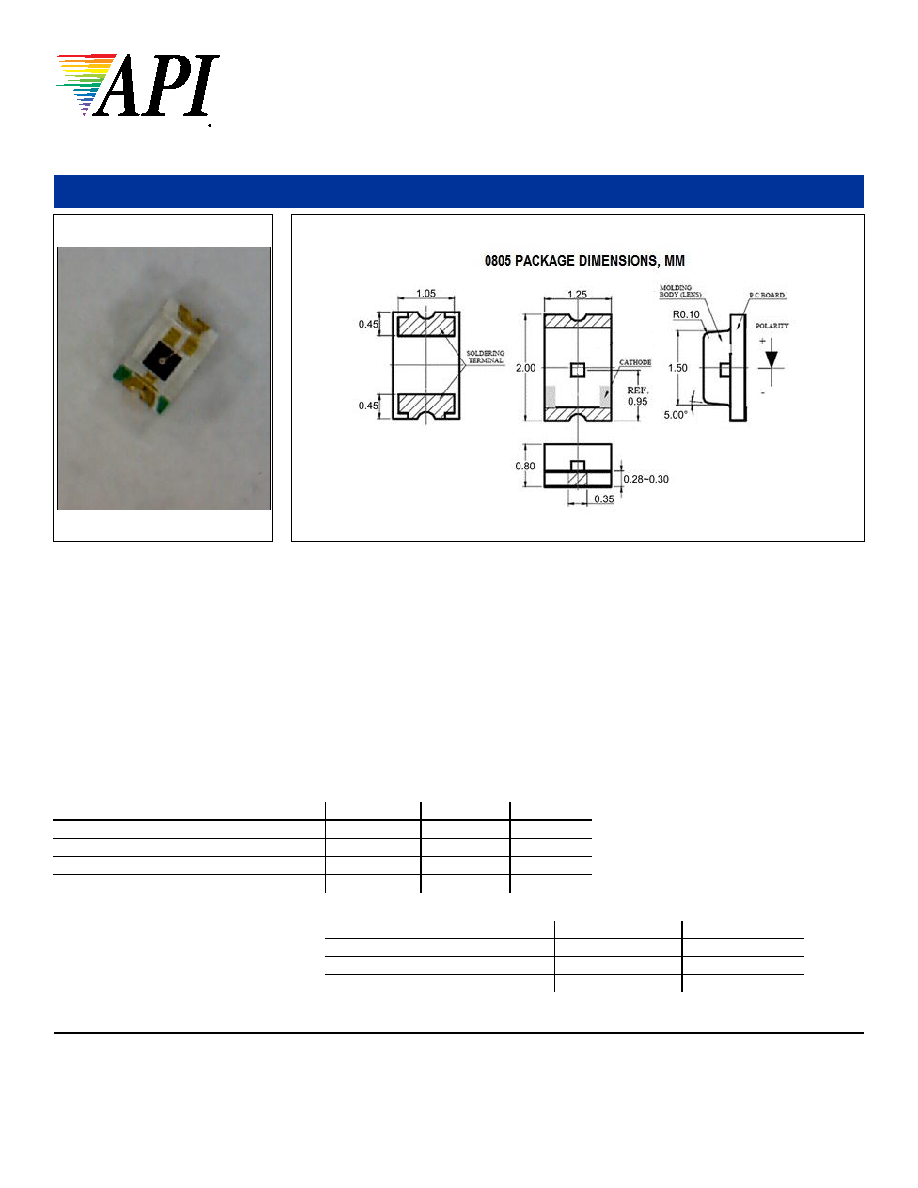

Surface-Mount Filtered Photodiode

Assembly

SD 019-141-411-R

-G

-B

WWW.ADVANCEDPHOTONIX.COM

Precision

– Control – Results

Information in this technical datasheet is believed to

be correct and reliable. However, no responsibility is

assumed for possible inaccuracies or omission.

Specifications are subject to change without notice.

Page 1/2

REV 03-24-15

© 2015 Advanced Photonix, Inc. All rights reserved.

Advanced Photonix Inc. 1240 Avenida Acaso, Camarillo CA 93012 • Phone (805) 987-0146 • Fax (805) 484-9935

AdvancedPhotonix,Inc.

DESCRIPTION

FEATURES

The SD019-141-411 is a is a silicon PIN 0.18mm² active area photodiode

assembled in a 0805 package with an integrated bandpass filter. Three

standard wavelength ranges are available

 Small Footprint

 Low Capacitance

 High Speed

RELIABILITY

APPLICATIONS

This API high-reliability detector is in principle able to meet military test

requirements (Mil-STD-750, Mil-STD-883) after proper screening and

group test.

Contact API for recommendations on specific test conditions and

procedures.

 Industrial Sensors

 Light Management

 Handheld Devices

ABSOLUTE MAXIMUM RATINGS

PARAMETER

MIN

MAX

UNITS

Reverse Voltage

-

50

V

Operating Temperature

-40

+105

°C

Storage Temperature

-50

+125

°C

Soldering Temperature*

-

+260

°C

PART NUMBER

BAND PASS

RANGE [nm]

SD019-141-411 - R

Red

625

– 655

SD019-141-411 - G

Green

510

– 540

SD019-141-411 - B

Blue

435

– 465
