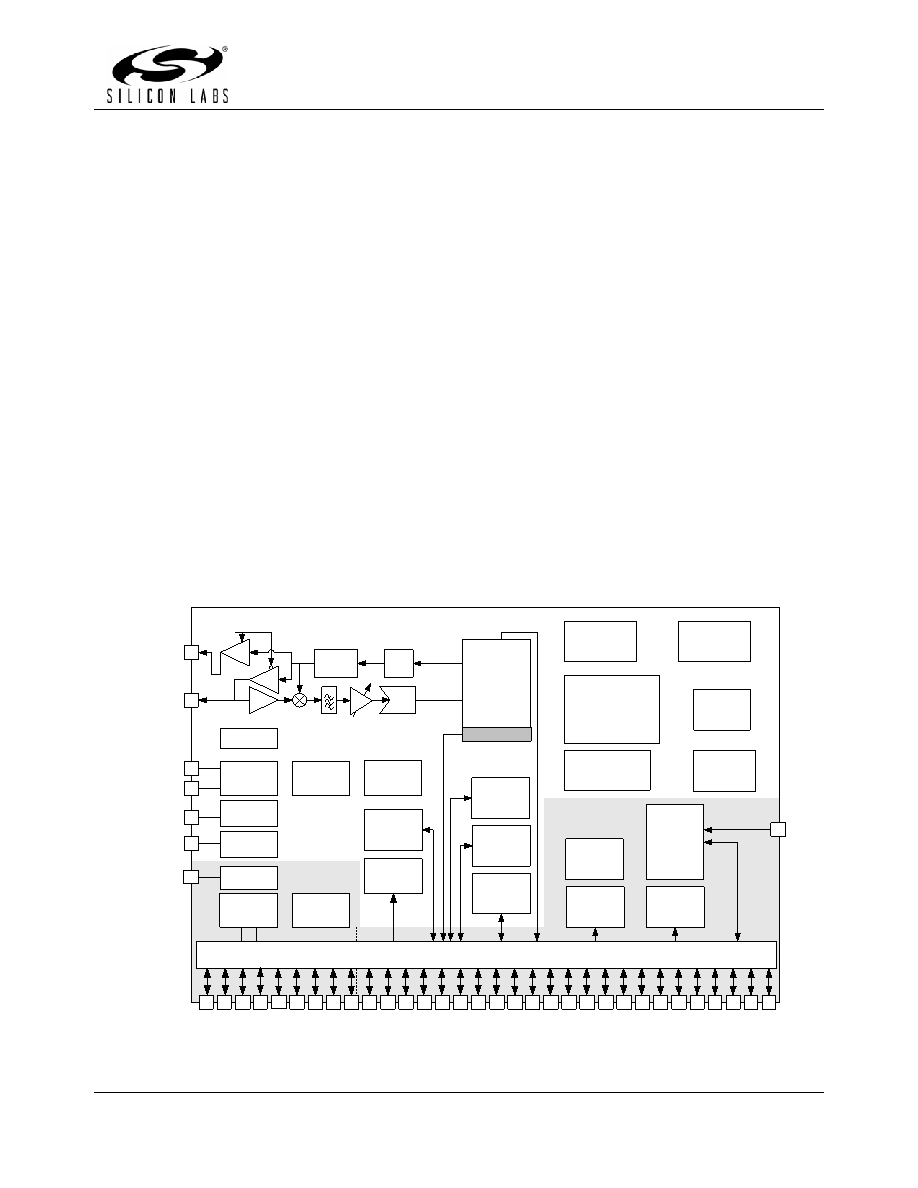

1 / 59 page  Rev 1.0 9/14 Copyright © 2014 by Silicon Laboratories EM359x EM359x High-Performance, Integrated ZigBee/802.15.4 System-on-Chip Family Complete System-on-Chip - 32-bit ARM® Cortex -M3 processor - 2.4 GHz IEEE 802.15.4-2003 transceiver & lower MAC - 256 or 512 kB flash, with optional read protection - 32 or 64 kB RAM memory - AES128 encryption accelerator - Flexible ADC, UART/SPI/TWI serial communications, and general purpose timers - Optional USB serial communications - 32 highly configurable GPIOs with Schmitt trigger inputs Industry-leading ARM® Cortex -M3 processor - Leading 32-bit processing performance - Highly efficient Thumb-2 instruction set - Operation at 6, 12, or 24 MHz - Flexible Nested Vectored Interrupt Controller Low power consumption, advanced management - RX Current (w/ CPU): 27 mA - TX Current (w/ CPU, +3 dBm TX): 31 mA - Low deep sleep current, with retained RAM and GPIO: 1.0 A without/1.25 A with sleep timer - Low-frequency internal RC oscillator for low-power sleep timing - High-frequency internal RC oscillator for fast (110 µs) processor start-up from sleep Exceptional RF Performance - Normal mode link budget up to 103 dB; configurable up to 110 dB - –100 dBm normal RX sensitivity; configurable to –102 dBm (1% PER, 20 byte packet) - +3 dB normal mode output power; configurable up to +8 dBm - Robust Wi-Fi and Bluetooth coexistence Innovative network and processor debug - Packet Trace Port for non-intrusive packet trace with Ember development tools - Serial Wire/JTAG interface - Standard ARM debug capabilities: Flash Patch & Break- point; Data Watchpoint & Trace; Instrumentation Trace Macrocell Application Flexibility - Single voltage operation: 2.1–3.6 V with internal 1.8 and 1.25 V regulators - Optional 32.768 kHz crystal for higher timer accuracy - Low external component count with single 24 MHz crystal - Support for external power amplifier - 8x8 mm 56-pin QFN package ADC RF_P,N Program Flash 256/512 kB Data RAM 32/64 kB HF crystal OSC LF crystal OSC General Purpose ADC Serial Wire and JTAG debug Internal LF RC-OSC GPIO multiplexor switch Chip manager 1.8V Regulator Bias 2nd level Interrupt controller RF_TX_ALT_P,N OSCA OSCB PA[7:0], PB[7:0], PC[7:0], PD[4:1], PE[3:0] Encryption acclerator IF Always Powered Domain ARM® CortexTM-M3 CPU with NVIC and MPU VREG_OUT Watchdog PA select LNA PA PA DAC MAC + Baseband Sleep timer POR nRESET General purpose timers GPIO registers UART/SPI/ TWI SYNTH Internal HF RC-OSC TX_ACTIVE Calibration ADC Packet Trace CPU debug TPIU/ ITM/FPB/DWT/ ETM 1.25V Regulator VDD_CORE USB Device SWCLK, JTCK |
