FLC01

Characteristics

The next curve on the next page shows the behavior with RS = 15 k

Ω and C = 1 µF.

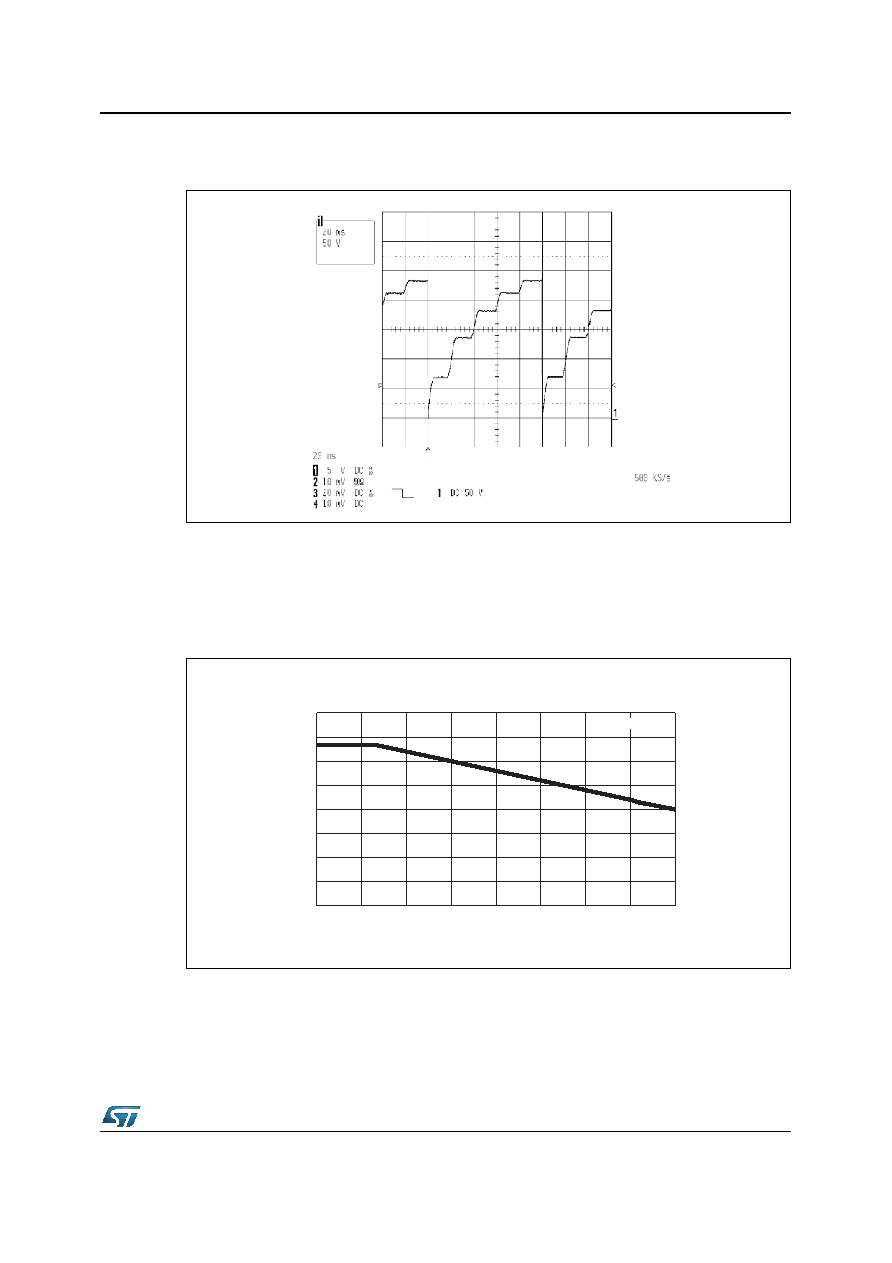

Figure 7. Voltage across the capacitance with Rs = Rs 15 k

Peak current limit

ambient temperature of 120° C in repetitive surge. The curve of peak current versus the

pulse duration allows us to verify if the application is within the FLC operating limit.

Figure 8. Peak current limit versus pulse duration

Power losses (for 10 µs, see Figure 3)

To evaluate the power losses, please use the following equations:

–

2

T(RMS)

–

2

F(RMS)

5.0

7.5

10.0

12.5

15.0

50

100

150

200

250

tp (µs)

ITRM(A)

Tj max=120°C
