MCL103C Datasheet(PDF) 1 Page - Diotec Semiconductor |
|
|
|||||||||||||||||||||||||||||
MCL103C Datasheet(HTML) 1 Page - Diotec Semiconductor |
|
|

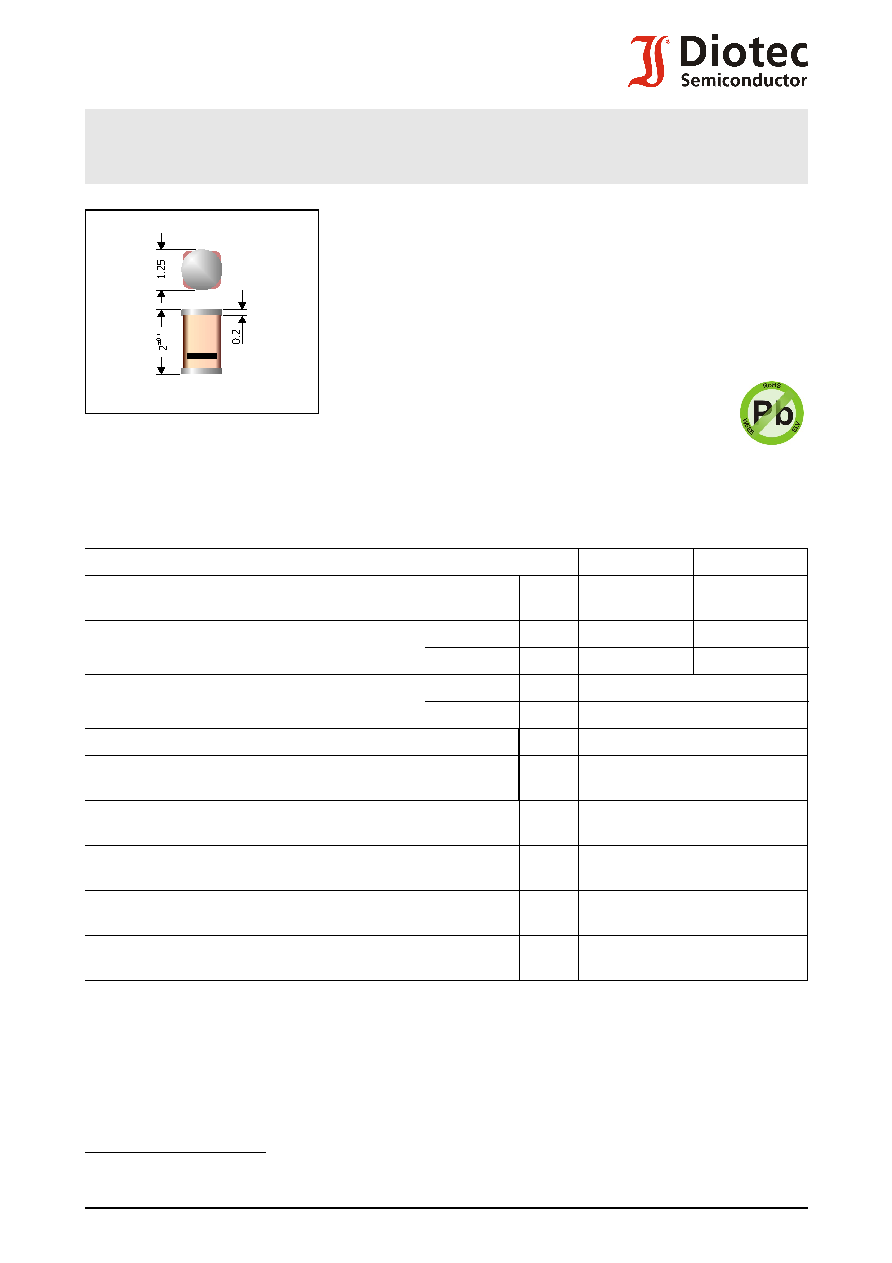

1 / 1 page  MCL103B, MCL103C MCL103B, MCL103C Surface Mount Small Signal Diodes Kleinsignal-Dioden für die Oberflächenmontage Version 2006-10-30 Dimensions - Maße [mm] Power dissipation Verlustleistung 400 mW Repetitive peak reverse voltage Periodische Spitzensperrspannung 20...30 V Glass case Quadro-MicroMELF Glasgehäuse Quadro-MicroMELF (LS-31) Weight approx. – Gewicht ca. 0.01 g Standard packaging taped and reeled Standard Lieferform gegurtet auf Rolle Maximum ratings and characteristics Grenz- und Kennwerte MCL103B MCL103C Repetitive peak reverse voltage Periodische Spitzensperrspannung VRRM 30 V 20 V Leakage current, Tj = 25°C Sperrstrom, Tj = 25°C VR = 20 V IR 5 µA – VR = 10 V IR – 5 µA Forward voltage, Tj = 25°C Durchlass-Spannung, Tj = 25°C IF = 20 mA VF < 0.37 V IF = 200 mA VF < 0.6 V Power dissipation − Verlustleistung TA = 25°C Ptot 400 mW 1) Peak forward surge current, 10 µs square pulse Stoßstrom für einen 10 µs Rechteckimpuls TA = 25°C IFSM 15 A Max. junction capacitance – Max. Sperrschichtkapazität VR = 0 V, f = 1 MHz Cj typ. 50 pF Reverse recovery time – Sperrverzug IF = 200 mA über/through IR = 200 mA bis/to IR = 20 mA trr typ. 10 ns Junction temperature – Sperrschichttemperatur Storage temperature – Lagerungstemperatur Tj TS -55...+175°C -55…+175°C Thermal resistance junction to ambient air Wärmewiderstand Sperrschicht – umgebende Luft RthA < 300 K/W 1) 1 Mounted on P.C. board with 3 mm2 copper pad at each terminal Montage auf Leiterplatte mit 3 mm2 Kupferbelag (Lötpad) an jedem Anschluss © Diotec Semiconductor AG http://www.diotec.com/ 1 |
