Data Sheet

AD7989-1/AD7989-5

CHAIN MODE

This mode can be used to daisy-chain multiple AD7989-1/

AD7989-5 devices on a 3-wire serial interface. This feature is

useful for reducing component count and wiring connections,

for example, in isolated multiconverter applications or for

systems with a limited interfacing capacity. Data readback is

analogous to clocking a shift register.

A connection diagram example using two AD7989-1/AD7989-5

devices is shown in Figure 35, and the corresponding timing is

given in Figure 36.

When SDI/CS and CNV are low, SDO is driven low. With SCK

low, a rising edge on CNV initiates a conversion, and selects the

chain mode. In this mode, CNV is held high during the

conversion phase and the subsequent data readback. When the

conversion is complete, the MSB is output onto SDO and the

AD7989-1/AD7989-5 enter the acquisition phase and power

down. The remaining data bits stored in the internal shift

ADC, SDI feeds the input of the internal shift register and is

clocked by the SCK falling edge. Each ADC in the chain outputs

its data MSB first, and 18 × N clocks are required to read back

the N ADCs. The data is valid on both SCK edges. Although the

rising edge can be used to capture the data, a digital host using

the SCK falling edge allows a faster reading rate and, consequently,

more AD7989-1/AD7989-5 devices in the chain, provided that

the digital host has an acceptable hold time. The maximum

conversion rate may be reduced due to the total readback time.

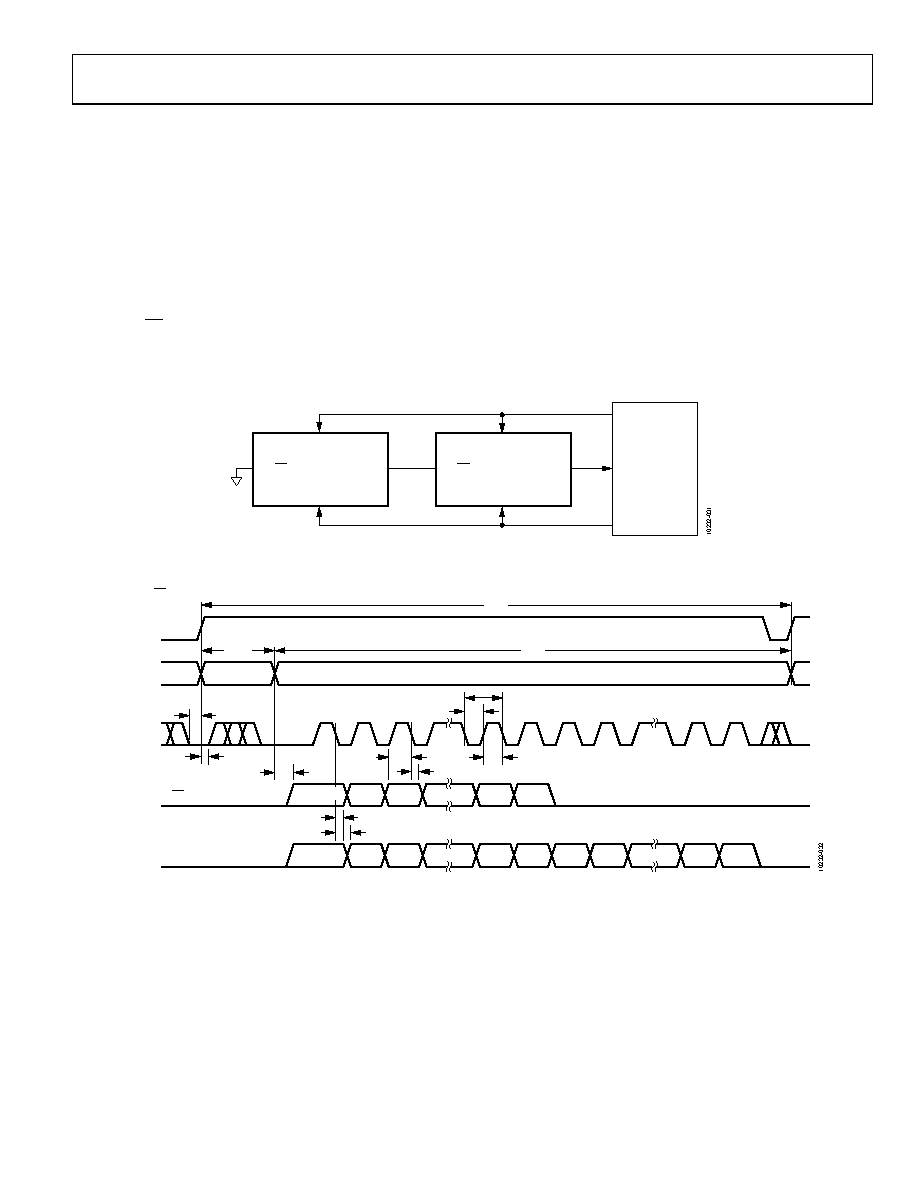

Figure 35. Chain Mode Connection Diagram

Figure 36. Chain Mode Serial Interface Timing

CONVERT

DATA IN

CLK

DIGITAL HOST

AD7989-1/

AD7989-5

SDO

CNV

SCK

AD7989-1/

AD7989-5

SDO

CNV

SCK

SDI/CS

DA17

DA16

DA15

SCK

tSSDISCK

tHSDISCK

tEN

CONVERSION

ACQUISITION

tCONV

tCYC

tACQ

ACQUISITION

CNV

DA1

tSCK

tSCKL

tSCKH

DA0

SDOB

DB17

DB16

DB15

DA1

DB1

DB0

DA17

DA16

tHSDO

tDSDO

tSSCKCNV

tHSCKCNV

DA0

SDI/CSA = 0

SDOA = SDI/CSB

Rev. A | Page 19 of 24
