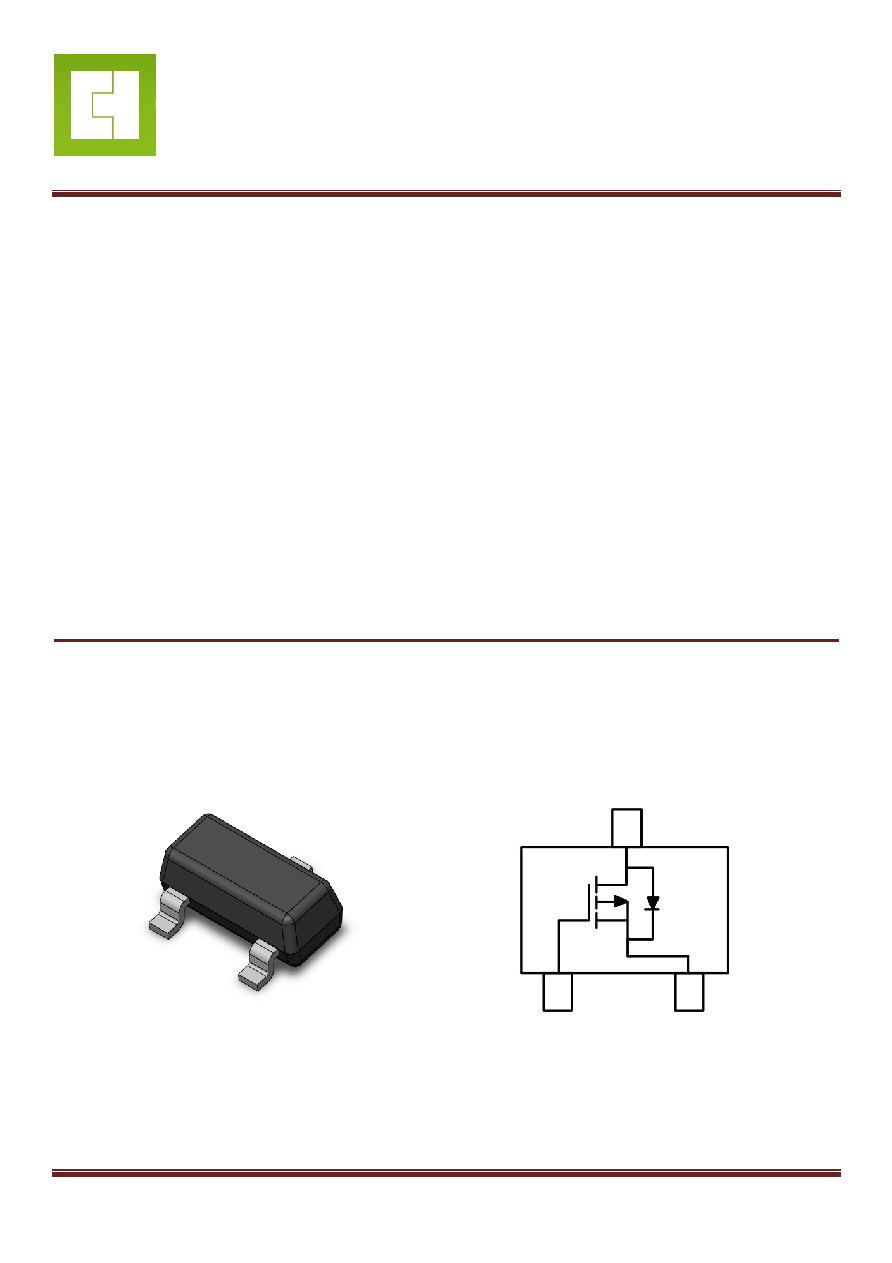

CTLM16PS05-R3
P-Channel Enhancement MOSFET
Package Outline
Schematic
Features
• Drain-Source Breakdown Voltage VDSS - 50 V
• Drain-Source On-Resistance
RDS(ON) 2
Ω, at VGS= - 10V, IDS= - 100mA
RDS(ON) 2
Ω, at VGS= - 5.0V, IDS= - 100mA
• Continuous Drain Current at TA=25℃ ID = - 160mA
• Advanced high cell density Trench Technology
• RoHS Compliance & Halogen Free
Applications
• Power Management
• Portable Equipment
• Battery Powered System
• DC/DC Converter
• Load Switch
Description
The CTLM16PS05-R3 uses high performance
Trench Technology to provide excellent RDS(ON) and
low gate charge which is suitable for most of the
synchronous buck converter applications .
Gate
Source
Drain
Gate
Drain
Source
