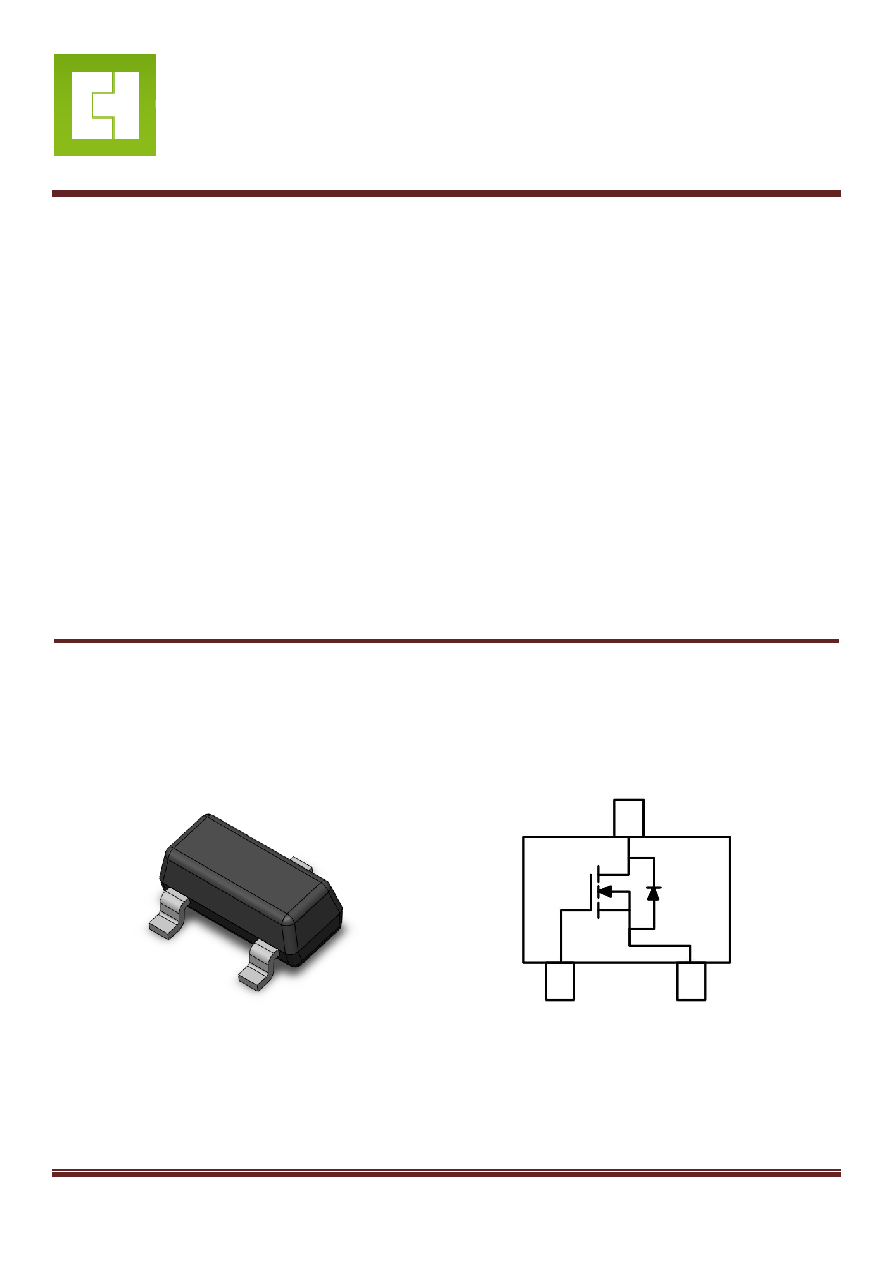

1 / 11 page ![]() CT Micro Rev 1 Proprietary & Confidential Page 1 Jun, 2015 CTLM17NS10-R3 N-Channel Enhancement MOSFET Package Outline Schematic Features •••• Drain-Source Breakdown Voltage VDSS 100 V •••• Drain-Source On-Resistance RDS(ON) 3 Ω, at VGS= 10V, ID= 100mA RDS(ON) 3 Ω, at VGS= 4.5V, ID= 100mA •••• Continuous Drain Current at TA=25 ℃ID =0.17A •••• Advanced high cell density Trench Technology •••• RoHS Compliance & Halogen Free Applications •••• Power Management •••• LCD Display inverter •••• DC/DC Converter •••• Load Switch Description The CTLM17NS10-R3 is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology. This high density process is especially tailored to minimize on-state resistance. Gate Source Drain Gate Drain Source |
