CTLM43NS20-R3 Datasheet(PDF) 1 Page - CT Micro International Corporation |
|
|
|||||||||||||||||||||||||||||
CTLM43NS20-R3 Datasheet(HTML) 1 Page - CT Micro International Corporation |
|

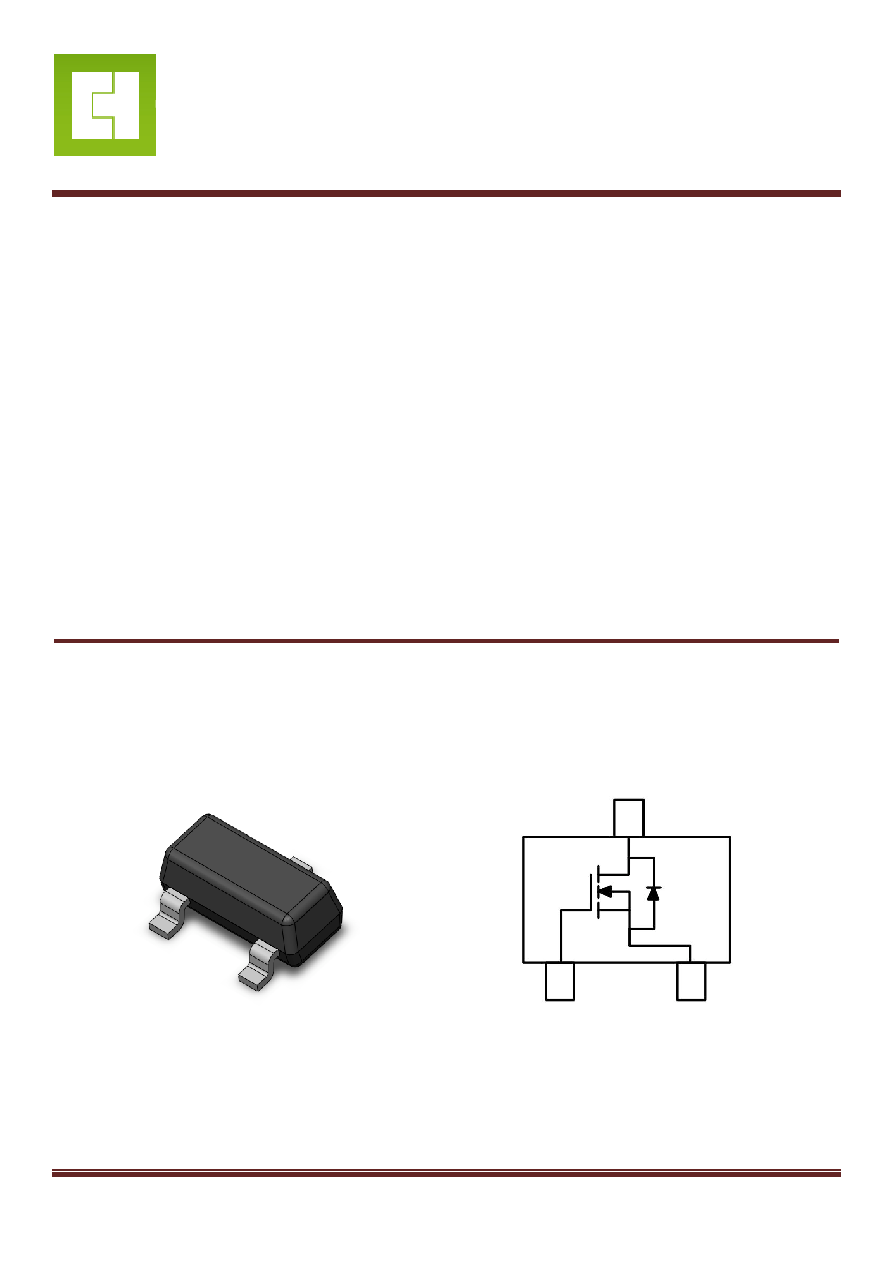

1 / 11 page ![]() CT Micro Rev 1 Proprietary & Confidential Page 1 Jun, 2015 CTLM43NS20-R3 N-Channel Enhancement MOSFET Package Outline Schematic Features •••• Drain-Source Breakdown Voltage VDSS 200 V •••• Drain-Source On-Resistance RDS(ON) 3.6 Ω, at VGS= 10V, ID= 430mA RDS(ON) 3.7 Ω, at VGS= 4.5V, ID= 425mA •••• Continuous Drain Current at TA=25 ℃ID =0.43A •••• Advanced high cell density Trench Technology •••• RoHS Compliance & Halogen Free Applications •••• Power Management •••• LCD Display inverter •••• DC/DC Converter •••• Load Switch Description The CTLM43NS20-R3 is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology. This high density process is especially tailored to minimize on-state resistance. Gate Source Drain Gate Drain Source |
