BAS21 Datasheet(PDF) 1 Page - Comchip Technology |
|
|
|||||||||||||||||||||||||||||
BAS21 Datasheet(HTML) 1 Page - Comchip Technology |
|
|

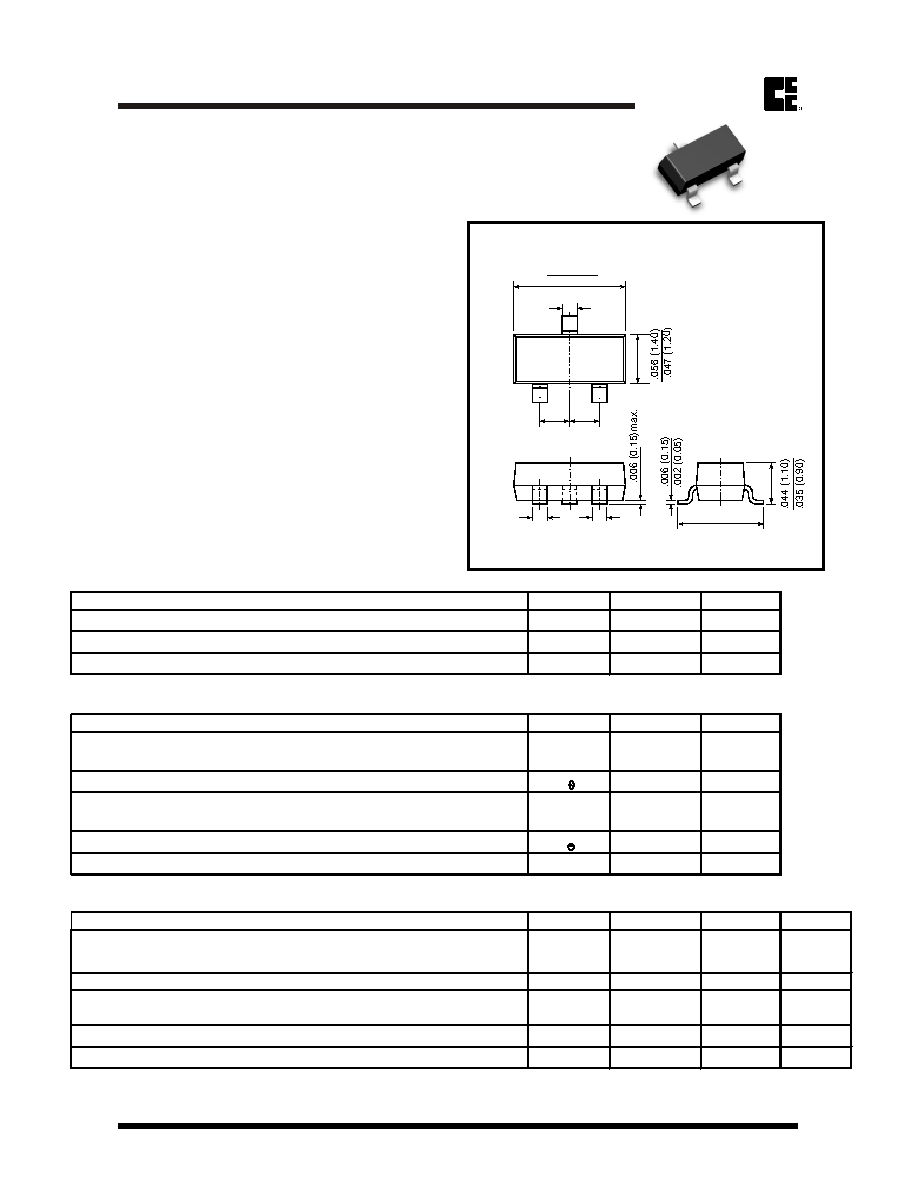

1 / 2 page  Voltage: 250 Volts Current: 0.2Amp BAS21 Feature High Voltage Switching Diode Surface Mount Package Ideally Suited for Automatic Insertion For General Purpose Switching Applications Surface Mount Switching Diode www.comchip.com.tw COMCHIP COMCHIP Rating Symbol Value Units Continuous Reverse Voltage VR 250 VDC Peak Forward Current IF 200.0 mAdc Peak Surge Forward Current IFSM(surge) 625 mAdc Characteristic Symbol Max Units Total Device Dissipation FR– 5 Board(1) TA = 25°C 225.0 mW Derate above 25°C 1.8 mW/°C Thermal Resistance, Junction to Am bient R JA 556.0 °C/W Total Device Dissipation Alumina Substrate,(2) TA = 25°C 300 mW Derate above 25°C 2.4 mW/°C Thermal Resistance, Junction to Am bient R JA 417 °C/W Junction and Storage Temperature TJ,Tstg –55 to +150 °C Characteristic Symbol Min Max Units Reverse Voltage Leakage Current VR = 200 Vdc - 1.0 VR = 200 Vdc, TJ = 150°C - 100 Reverse Breakdown Voltage (BR = 100 Adc) V(BR) 250 - Vdc Forward Voltage F = 100 mAdc 1000 F = 200 mAdc 1250 Diode Capacitance (VR = 0, f = 1.0 MHz)) CD 5 pF Reverse Recovery Time (IF = IR = 30 mAdc, RL = 100 ) Trr 50 nS mV 1.FR–5 = 1.0 X 0.75X 0.062 in. 2.Alumina = 0.4X 0.3X 0.024 in. 99.5% alumina. PD Electrical Characterics (TA = 25°C unless otherwise noted) IR VF Maximum Ratings Thermal Characteristics PD uAdc SOT-23 Dimensions in inches (millimeters) Mechanical Data Case: SOT -23, Plastic Terminals : Solderable per NIL-STD -202, Method 208 Approx. Weight: 0.008 gram MDS0209006A Page 1 .037(0.95) .037(0.95) .119 (3.0) .020 (0.5) .020 (0.5) Top View .103 (2.6) .110 (2.8) .086 (2.2) .020 (0.5) |
