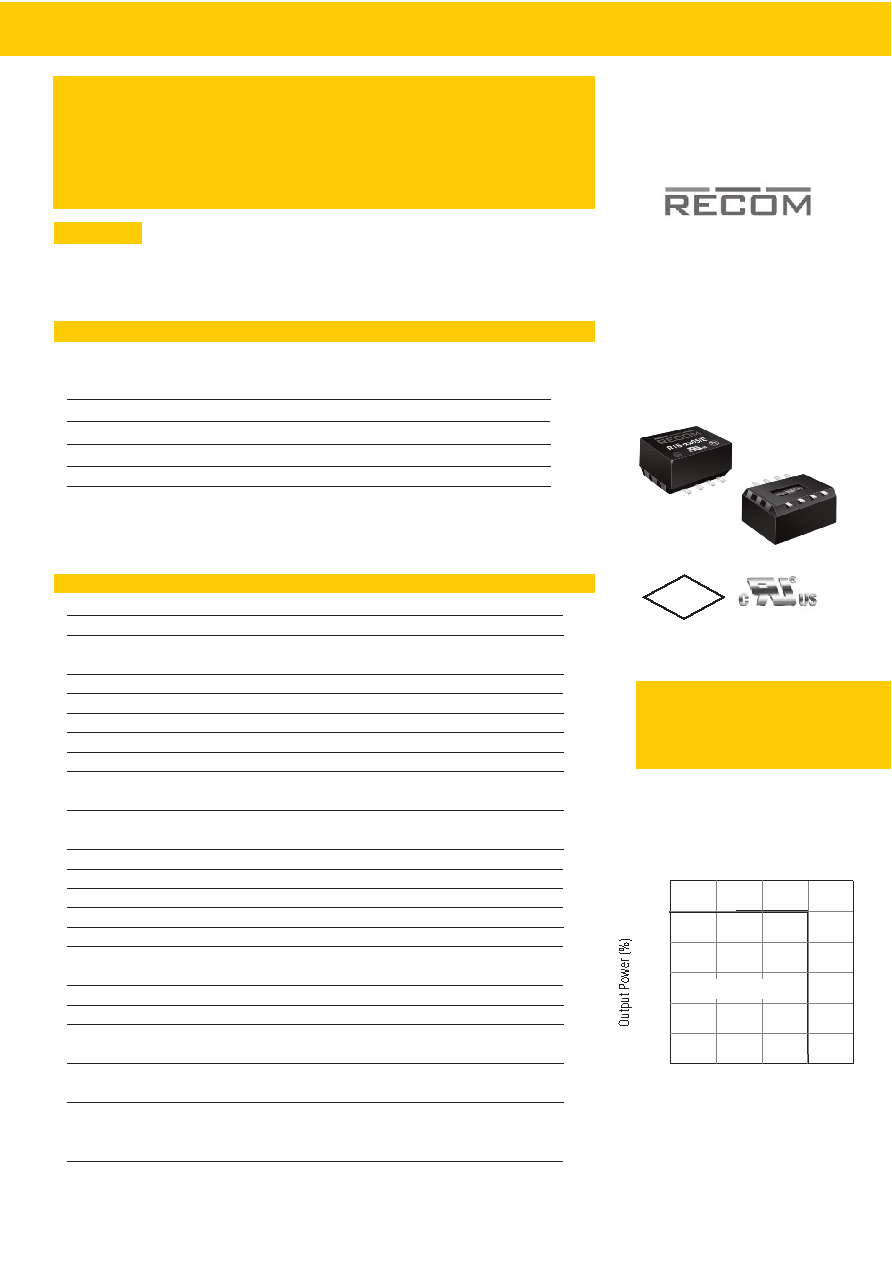

Derating-Graph

(Ambient Temperature)

Selection Guide

Part

Isolation

Input

Output

Output

Capacitive

Number

Voltage

Voltage

Voltage

Current

Efficiency

Load

SMD

(kVDC)

(VDC)

(VDC)

(mA)

(typ.)

(max.)

(1)

R1S**-3.305/E*

1

3.3

5

200

81%

2200µF

R1S**-0505/E*

1

5

5

200

81%

2200µF

R1S**-1205/E*

1

12

5

200

82%

2200µF

R1S**-2405/E*

1

24

5

200

80%

2200µF

** without marking denotes 5 pins out of 8 fitted (includes /H option) - e.g. R1S-3.305/EH

** with marking “8“ denotes 8 pins out of 8 fitted (/H option not available) - e.g. R1S8-3.305/E

* add Suffix “/H“ for 2kVDC Isolation Voltage - e.g. R1S-3.305/EH

* add Suffix “/P“ for Continuous Short Protection - e.g. R1S-3.305/EHP, R1S8-3.305/EP

* add Suffix “-R“ for tape & reel packing - e.g. R1S-3.305/EHP-R, R1S8-3.305/E-R

Input Voltage Range

±10%

Output Voltage Accuracy

3.3V, 5V, 12V, 24V

±5% max.

Line Voltage Regulation

3.3V, 5V, 12V, 24V

1.2% max.

(low line to high line at full load)

Load Voltage Regulation

Load Deviation 10% to 100%

15% max.

Output Ripple and Noise (20MHz BW)

50mVp-p typ., 100mVp-p max.

Operating Frequency (Vin=nominal input)

20kHz min. / 90kHz max.

Efficiency

see Selection Guide

Minimum Load = 0%

Specifications valid for 10% minimum load only

Isolation Voltage

(tested for 1 second)

1000 VDC

(rated for 1 minute***)

500VAC / 60Hz

H-Suffix

(tested for 1 second)

2000 VDC

H-Suffix

(rated for 1 minute***)

1000VAC / 60Hz

Isolation Capacitance

75pF max.

Isolation Resistance

(Viso=500V)

10G

Ω min.

Short-Circuit Protection

1 second

Operating Temperature Range

-40°C to +100°C

Storage Temperature

-55°C to +125°C

Reflow Temperature

RoHS compliant

245°C (30 sec.), Peak 255°C (5sec.) max.

Vapor Phase Process

(for more details see Application Notes)

230°C (90 sec.) max.

Relative Humidity

95% RH

Package Weight

(R1S8/xx05/E = 1.1g)

1.0g

Packing Quantity

40 pcs per Tube

500 pcs per Reel

MTBF (+25°C)

using MIL-HDBK 217F

3459 x 10³ hours

MTBF (+100°C)

using MIL-HDBK 217F

756 x 10³ hours

Certifications

UL General Safety

Report: E358085

UL60950-1

EN General Safety

Report: SPCLVD1112018

EN60950-1 2nd Edition

Note: Detailed Information see Application Notes chapter “MTBF“

1 Watt SMD

Single Output

Features

Unregulated

Converters

EN-60950-1 Certified

UL-60950-1 Certified

R1S/E

ECONOLINE

DC/DC-Converter

with 3 year Warranty

Refer to Application Notes

100

60

20

40

100

50

0

-40

150

Operating Temperature °C

0

80

Safe Operating Area

Description

The R1S/E series is an unregulated DC/DC converter in fully encapsulated open Frame

package style. This series has been designed to offer exceptionally high efficiency at low loads

and an extended operating temperature range. Uses include battery powered supplies, green

energy applications and general isolating/converting DC power where board space and high

efficiency is a premium.

RoHS

2011/65/EU

6/6

***Any data referred to in this datasheet are of indicative nature and based on our practical experience only. For further details, please refer

to our Application Notes.

E358085

REV: 2/2015
