AT86RF211
1942C–WIRE–06/02

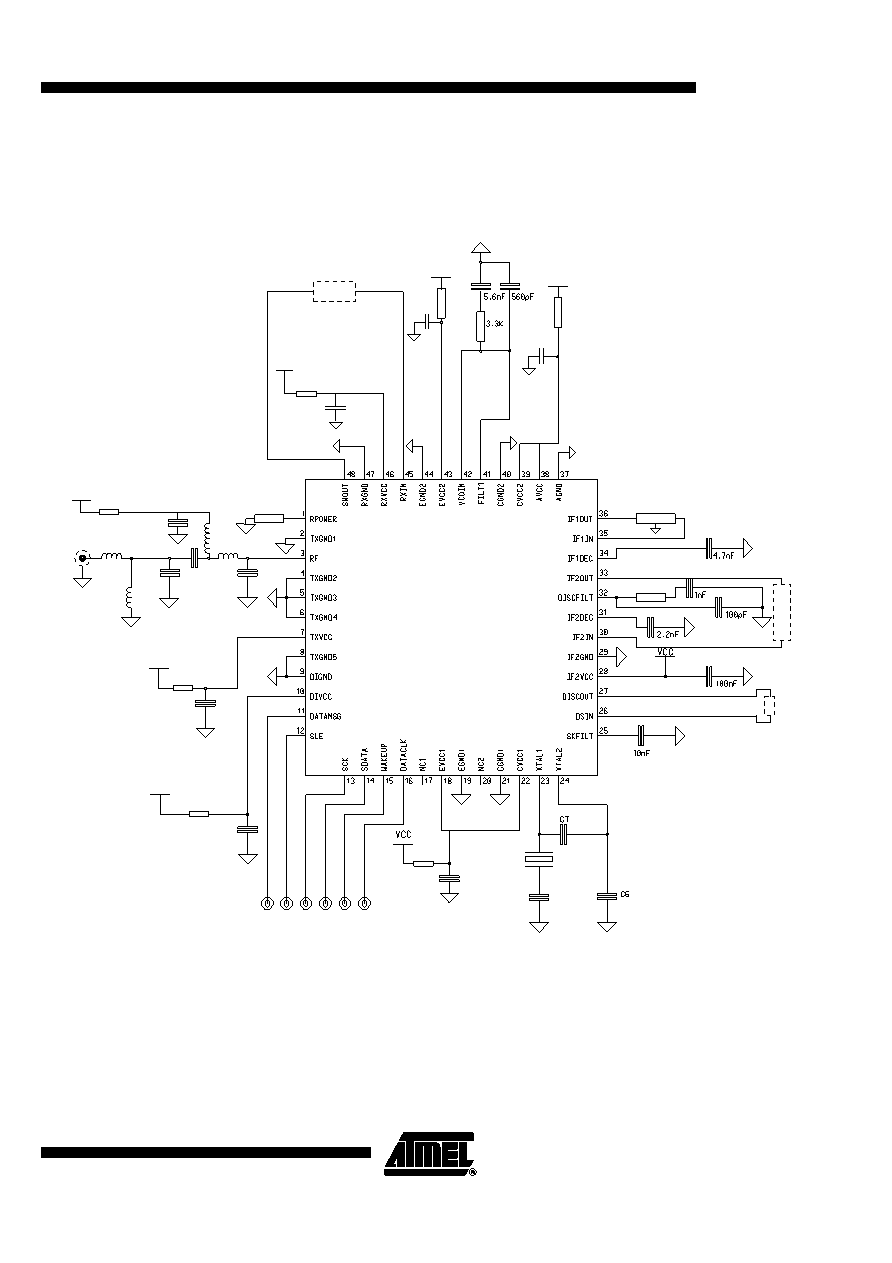

Typical Application
Implementation
Note:
Accurate information about parts and values of components to be used around AT86RF211 are described in our application
notes. "RF Bill-of-Material/cost for 868-915 MHz applications".
IF1 Filter: 10.7 MHz
or
21.4 MHz
10.245 MHz
or
20.945 MHz
AT86RF211
Rpower
VCC
VCC
VCC
Optional
SAW Filter
VCC
VCC
Optional
RC Filter
IF2
Optional
Ceramic
Filter
(455 kHz)
SAW
VCC
VCC
ANTENNA
