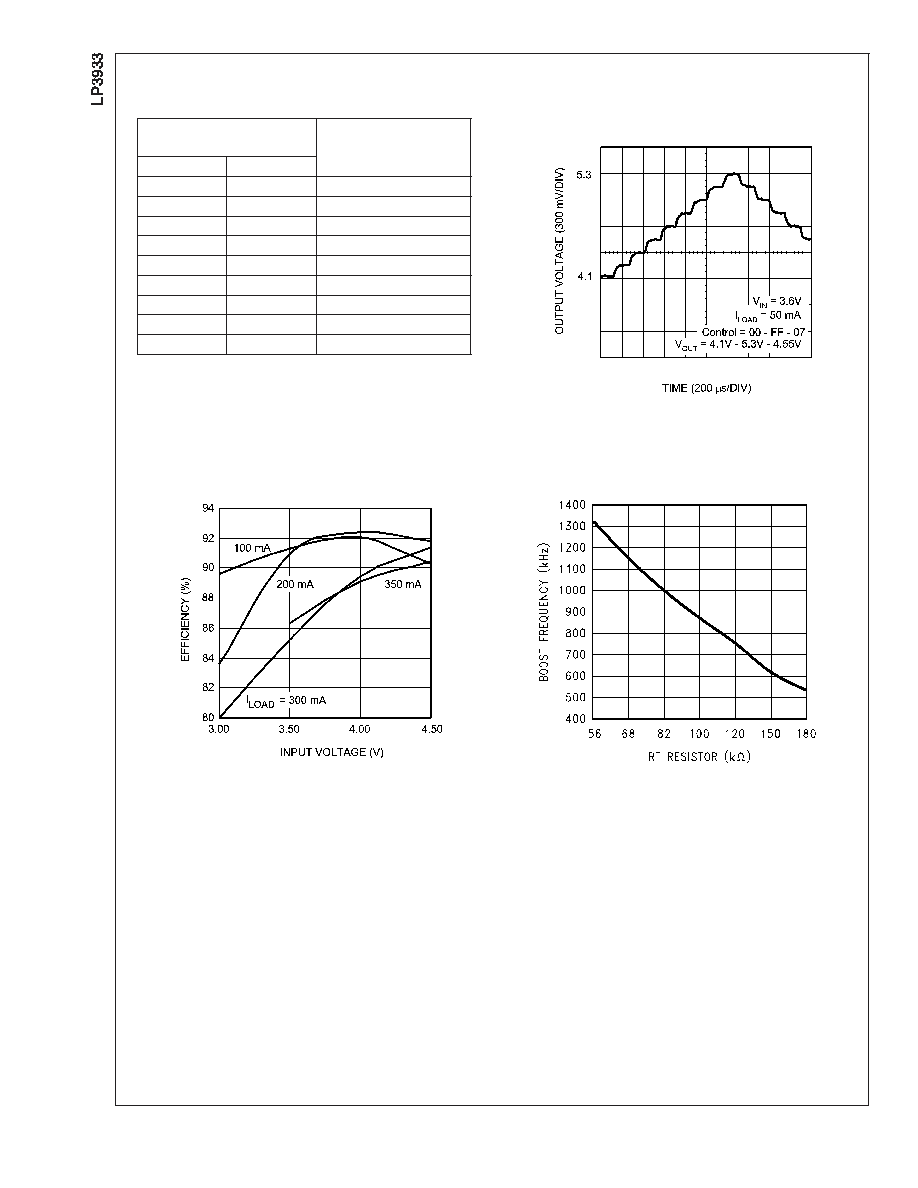

background image
Boost Output Voltage Control
User can control the boost output voltage by boost output 8-bit register.
Boost [7:0]
Register 0Dh
BOOST Output Voltage
(typical)
Bin
Hex
0000 0000
00
4.10
0000 0001
01
4.25
0000 0011
03
4.40
0000 0111
07
4.55
0000 1111
0F
4.70
0001 1111
1F
4.85
0011 1111
3F
5.00 Default
0111 1111
7F
5.15
1111 1111
FF
5.30
Boost Output Voltage Control
20080510
Boost Converter Typical Performance Characteristics V
IN = 3.6V, VOUT = 5.0V if not
otherwise stated.
Boost Converter Efficiency
Boost Frequency vs RT Resistor
20080518
20080526
www.national.com
10
