ASMCI-0603

RoHS

Compliant

SMD Multilayer Chip Inductor for Choke

1.60 x 0.8 x 0.8mm

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

ABRACON IS

CERTIFIED

ISO 9001:2008

30332Esperanza, Rancho Santa Margarita, California 9268

tel 949-546-8000| fax 949-546-8001 | www.abracon.com

Revised: 02.08.13

Visit

www.abracon.com for Terms & Conditions of Sale

ASMCI-0603 -

Inductance Code

Please refer to the

table above

Tolerance

M: ±20%

N: ±30%

Packaging

T: Tape and Reel

(4kpcs / reel)

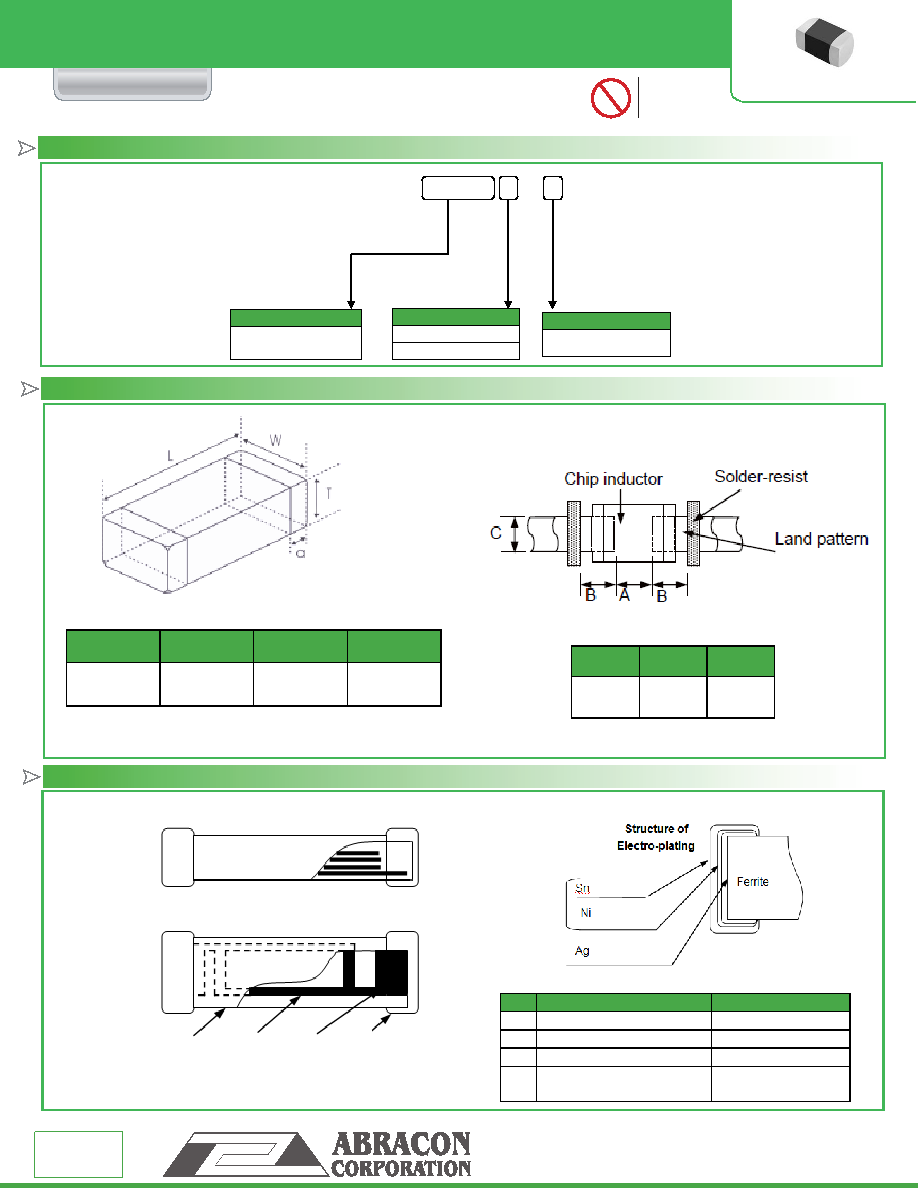

PART IDENTIFICATIONS:

OUTLINE DRAWING:

Dimension: mm [inch]

Recommended Land Pattern

Dimension: mm

1.60±0.15

[0.063±0.006]

0.8±0.15

[0.031±0.006]

0.8±0.15

[0.031±0.006]

0.3±0.2

[0.012±0.008]

0.60~0.80

Part Name

Material

Base Material

Internal Conductor

Pull out Electrode

Terminal Electrode

Ag (Inner layer)

Ni-Sn (Outer layer)

Side View

Top View

MATERIALS:

Ferrite
