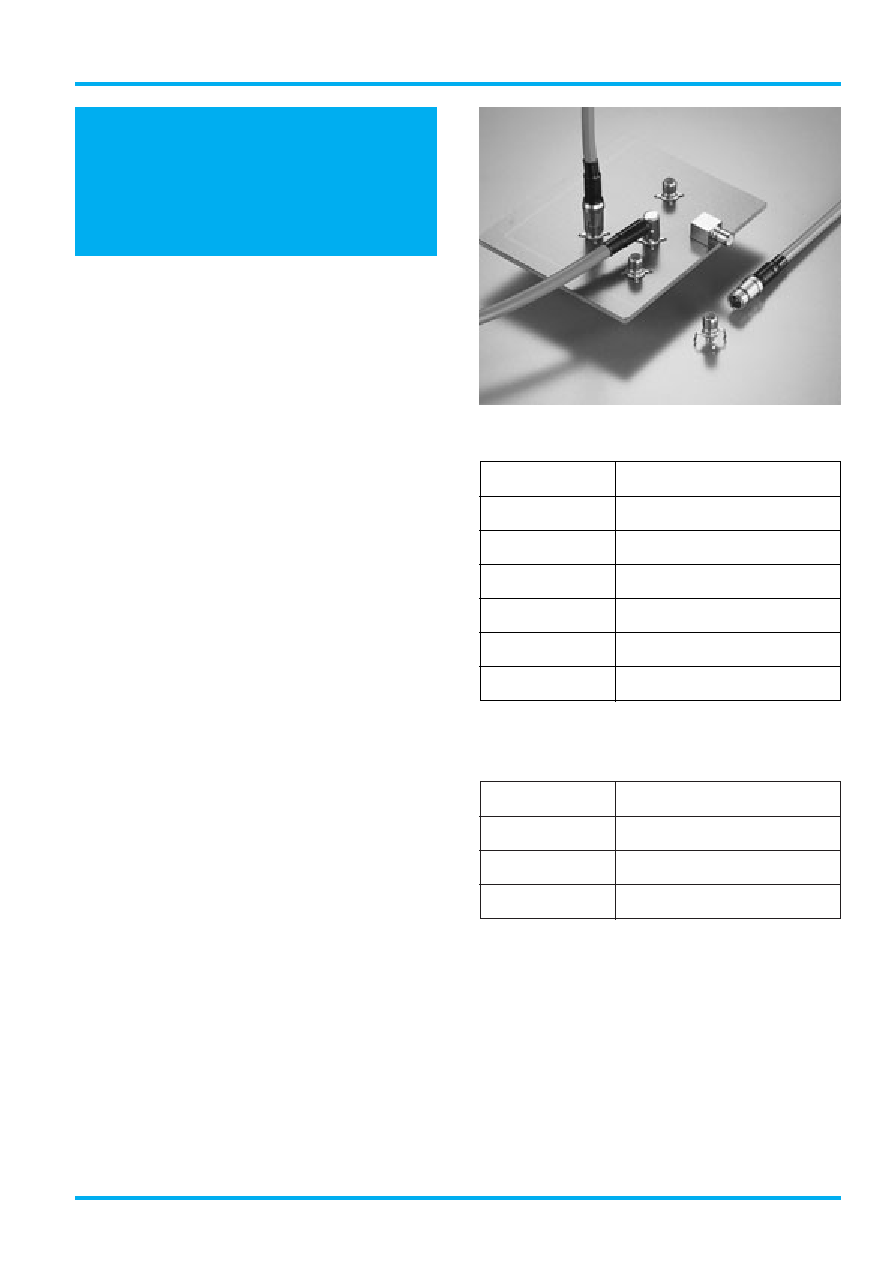

COAXIAL CONNECTORS

CN10 Series

■ FREQUENCY RANGE TO 3GHz

■ PUSH-ON COUPLING

CN10 Series

CN10 series connectors are a low cost version designed with

stamped parts. For board to cable application, achieving high

frequency signal transmission and high density packaging inside

equipment.

Applicable frequencies : from DC up to 3GHz. High performance with

a VSWR

（voltage standing wave ratio）of 1.2 or less.

●Push-on coupling, Compact and lightweight.

●Low profile with a mated height of 9 mm or less when a right-angle

plug and a straight receptacle are used.

●Lightweight, compact in size and rugged construction.

●A high degree of reliability provides stable electric continuity and

high frequency performance.

●Applications : Automobile Telephones, Communications Equipment,

Measuring Instruments

For the cable application type, harnessed connectors which satisfy

your specification are supplied.

We can also provide connectors and cables other than those listed in

this catalog. For details, please consult us.

■SPECIFICATIONS

Characteristic Impedance

50Ω（Note）

DC to 3GHz

AC200Vr.m.s.（1minute）

500 megohms min.（DC250V）

Center Contacts : 8 milliohms max.

Outer Contacts : 8 milliohms max.

1.2 max.（DC to 3GHz）

0.8D-W, 1.5D-V, 1.5D-W, 2.5D-V

Frequency Range

D. W. Voltage

Insulation Resistance

Contact Resistance

V. S. W. R.

Applicable Cables

■MATERIALS/FINISHES

Description

Materials/Finishes

Copper Alloy/Gold Plated over Nickel

PTFE or PFA

Contacts

Insulator

Copper Alloy/Nickel Plated

Body/Shell

（Note）Possible to use 75Ωcable. For details, please consult us.
