EVALUATION BOARD SCHEMATIC AND LAYOUT

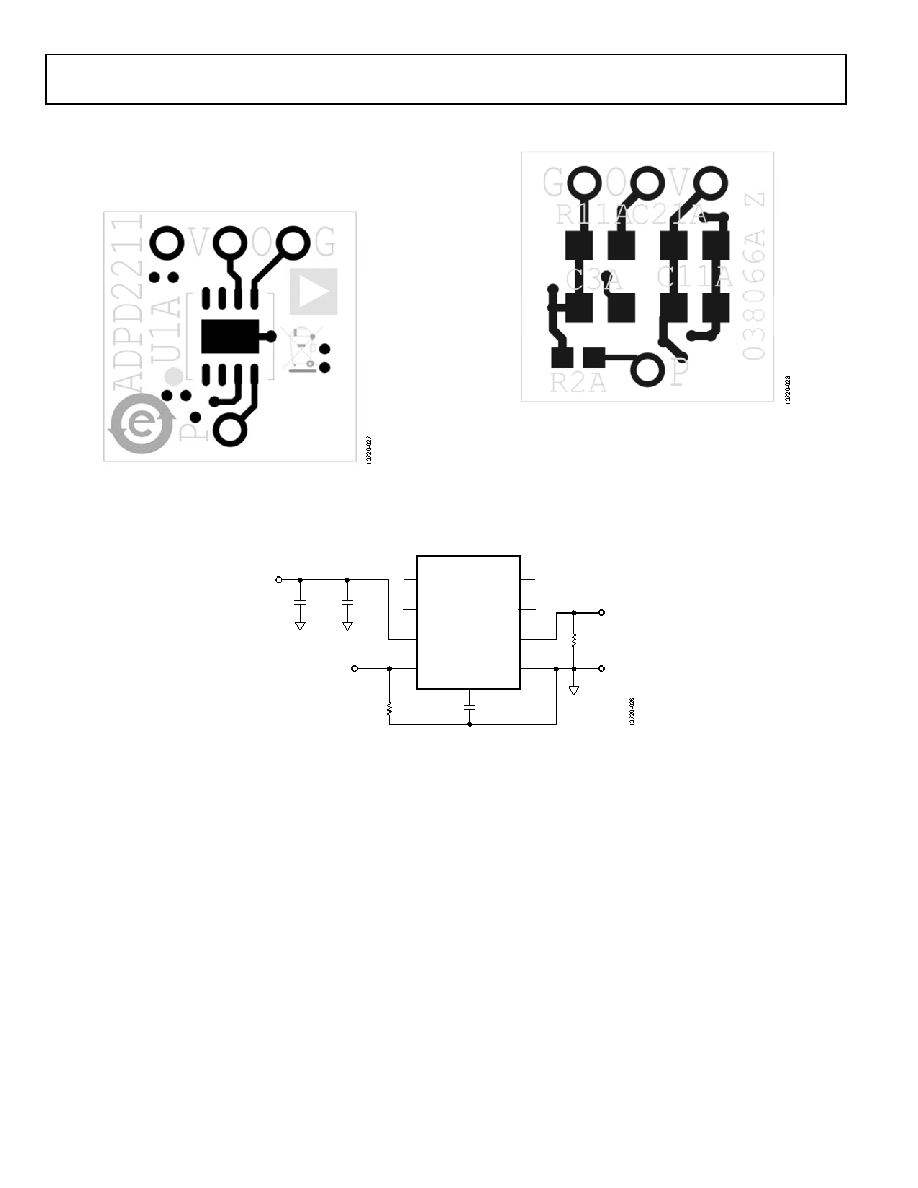

Figure 17 shows the evaluation board schematic. Figure 15 and

Figure 16 show the evaluation board layout for the top and

bottom layers, respectively.

Figure 15. ADPD2211 Evaluation Board Top Layer

Figure 16. ADPD2211 Evaluation Board Bottom Layer

Figure 17. ADPD2211 Evaluation Board Schematic (Do Not Install C3A)

EVALZ-ADPD2211

U1A

1

3

4

6

8

PWDN

NIC

VCC

GND

NIC

2

7

NIC

VCC

PWDN

GND

OUT

NIC

OUT

EPAD

R11A

100k

Ω

R2A

100k

Ω

C21A

1µF

C3A

0.01µF

DNI

DNI

C11A

0.01µF

5
