Data Sheet
ADPD2212
Rev. 0 | Page 7 of 13

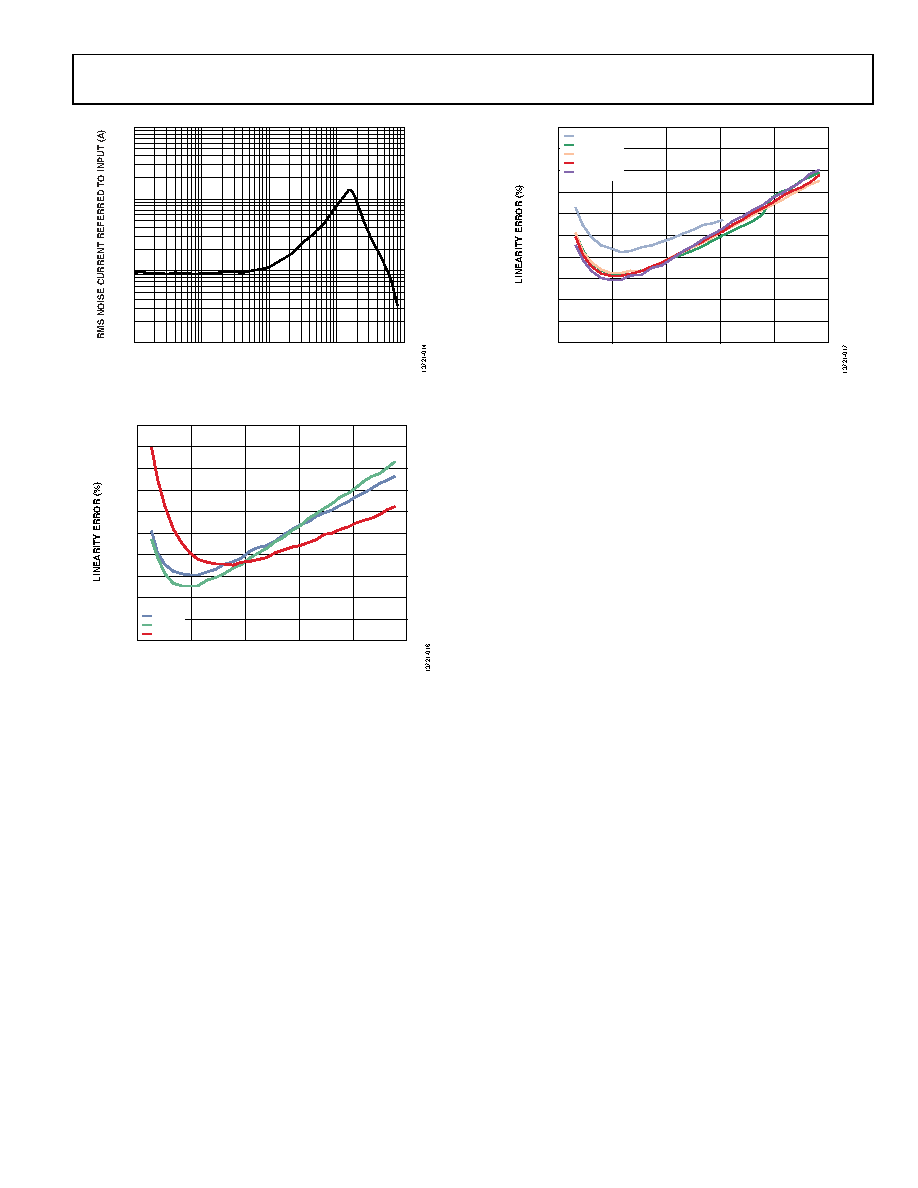

Figure 10. Noise Bandwidth/Peaking
Figure 11. Linearity Error vs. Output Current (IOUT) over Temperature
Figure 12. Linearity Error vs. Output Current (IOUT) over Supply Voltage (VCC)
10f
100f
1p
10p
100
1k
10k
100k
1M
FREQUENCY (Hz)
–0.25
–0.20
–0.15
–0.10
–0.05
0
0.05
0.10
0.15
0.20
0.25
0
20
40
60
80
100
IOUT (µA)
–40°C
+25°C
+85°C
–0.25
–0.20
–0.15
–0.10
–0.05
0
0.05
0.10
0.15
0.20
0.25
0
20
40
60
80
100
IOUT (µA)
VCC = 1.8V
VCC = 2.5V
VCC = 3.3V
VCC = 4V
VCC = 5V
