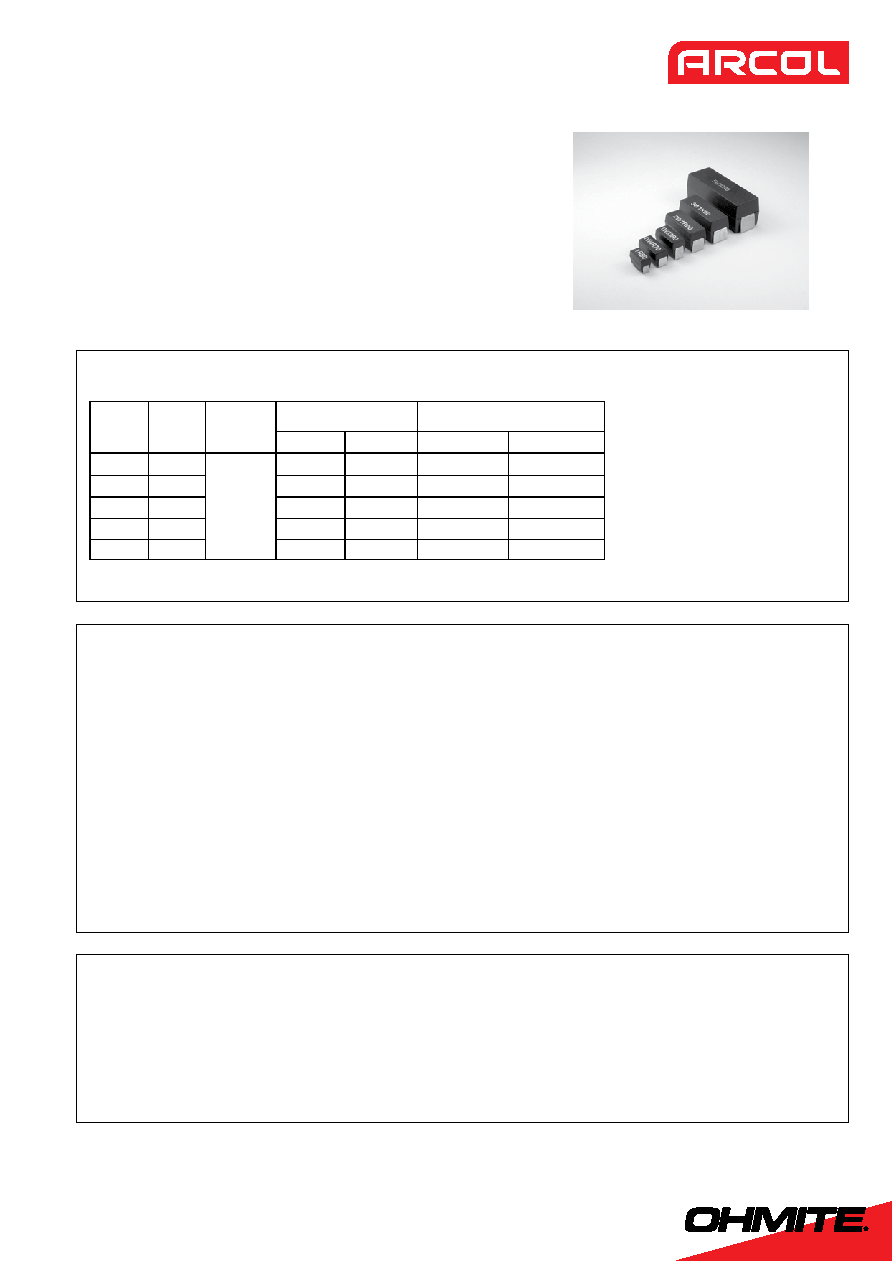

SMD Resistor

A compact and precision power resistor, manufactured to the highest

standards; reliable and robust but still achieving drift of less than 1%

and TCR of 10-90ppm/˚C when under rated conditions

Electrical Specifications

Type

Wattage Tolerance

Resistance Range

Resistance Range - Non-inductive

Min

Max

Min

Max

RWS05

0.5

D (0.5%)

F (1%)

J (5%)

R005

1K

R1

200R

RWS1

1

R005

5K8

R1

1K2

RWS2

2

R005

14K

R1

2K8

RWS3

3

R01

25K

R1

5K

RWS5

5

R05

50K

R1

10K

Characteristics

Tolerance (Code):

Operating temperature:

Temperature coefficient:

Max. working voltage:

Short time overload

Solderability

Resistance to solder heat

Dielectric withstanding voltage

Load life

± 0.5% (D),± 1% (F), ± 5% (J)

-55°C to +155°C

± 90ppm/°C R1 - R99, ± 50ppm/°C 1R - 10R, ± 20ppm/°C > 10R

5 times rated wattage for 5 seconds

±(0.5% + 0.05mΩ)∆R

Bath temperature 235±5˚C, immersion time 2±0.5 seconds JIS C 5201 4.17

>95% of contact face covered new solder

Bath temperature 260±5˚C, immersion time 10±1 seconds JIS C 5201 4.18

±(0.5% + 0.05mΩ)∆R

Test voltage >500V, duration 1 minute JIS C 5201 4.7

70˚C ±2˚C, rated DC working voltage applied 1.5 hours on and 0.5 hours off, 1000 hours, ±(2.0% +

0.05mΩ)∆R
