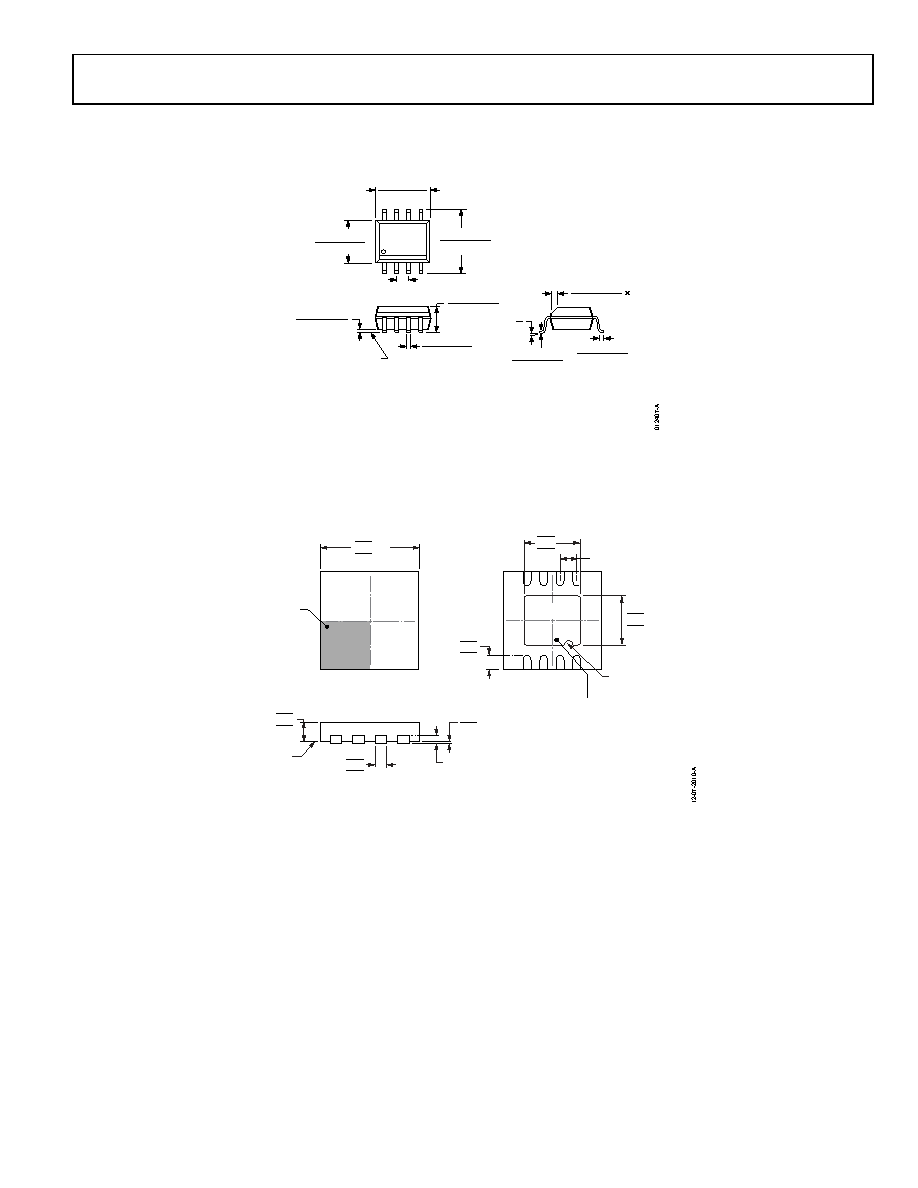

OUTLINE DIMENSIONS

CONTROLLING DIMENSIONS ARE IN MILLIMETERS; INCH DIMENSIONS

(IN PARENTHESES) ARE ROUNDED-OFF MILLIMETER EQUIVALENTS FOR

REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN.

COMPLIANT TO JEDEC STANDARDS MS-012-AA

0.25 (0.0098)

0.17 (0.0067)

1.27 (0.0500)

0.40 (0.0157)

0.50 (0.0196)

0.25 (0.0099)

45°

8°

0°

1.75 (0.0688)

1.35 (0.0532)

SEATING

PLANE

0.25 (0.0098)

0.10 (0.0040)

5.00 (0.1968)

4.80 (0.1890)

4.00 (0.1574)

3.80 (0.1497)

1.27 (0.0500)

BSC

6.20 (0.2441)

5.80 (0.2284)

0.51 (0.0201)

0.31 (0.0122)

COPLANARITY

0.10

Figure 72. 8-Lead Standard Small Outline Package [SOIC_N]

Narrow Body

(R-8)

Dimensions shown in millimeters and (inches)

TOP VIEW

0.30

0.25

0.20

BOTTOM VIEW

PIN 1 INDEX

AREA

SEATING

PLANE

0.80

0.75

0.70

1.55

1.45

1.35

1.84

1.74

1.64

0.203 REF

0.05 MAX

0.02 NOM

0.50 BSC

EXPOSED

PAD

3.10

3.00 SQ

2.90

FOR PROPER CONNECTION OF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET.

COPLANARITY

0.08

0.50

0.40

0.30

COMPLIANT

TO JEDEC STANDARDS MO-229-WEED

PIN 1

INDICATOR

(R 0.15)

Figure 73. 8-Lead Lead Frame Chip Scale Package [LFCSP_WD]

3 mm × 3 mm Body, Very Very Thin, Dual Lead

(CP-8-13)

Dimensions shown in millimeters
