ADA4500-2

Data Sheet

Rev. A | Page 10 of 24

TA = 25°C, unless otherwise noted.

100

–40

–20

–50

–25

100

125

150

TEMPERATURE (°C)

ADA4500-2

VSY = 2.7V

VCM = VSY/2

IB+

IB–

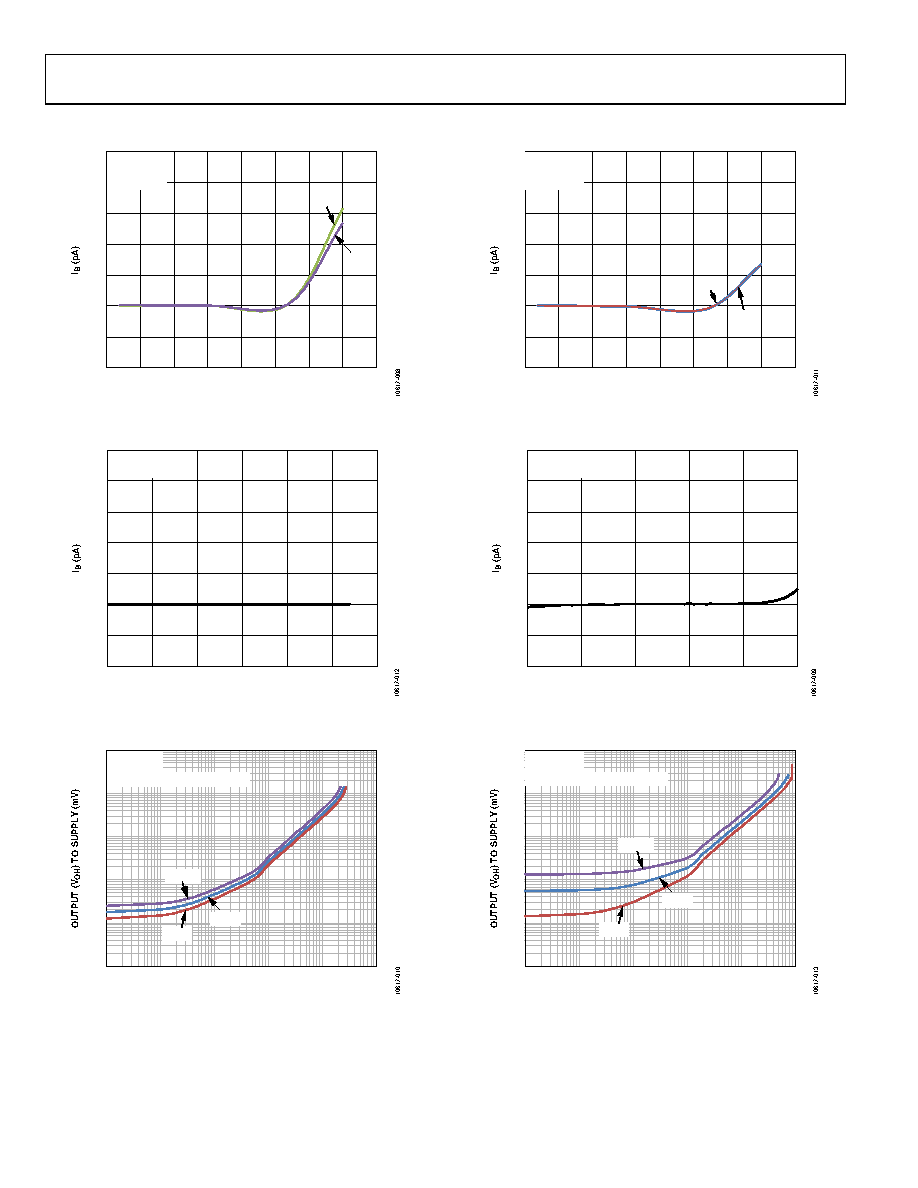

Figure 11. Input Bias Current (IB) vs. Temperature, VSY = 2.7 V

3.0

2.5

2.0

1.5

1.0

0.5

VCM (V)

ADA4500-2

VSY = 2.7V

100

–40

–20

Figure 12. Input Bias Current (IB) vs. Common-ModeVoltage (VCM), VSY = 2.7 V

10k

100

0.1

0.001

100

0.1

0.01

LOAD CURRENT (mA)

ADA4500-2

VSY = 2.7V

SOURCING OUTPUT CURRENT

–40°C

+25°C

+125°C

Figure 13. Output Voltage (VOH) to Supply Rail vs. Load Current, VSY = 2.7 V

100

–40

–20

–50

–25

100

125

150

TEMPERATURE (°C)

ADA4500-2

VSY = 5.0V

VCM = VSY/2

IB+

IB–

Figure 14. Input Bias Current (IB) vs. Temperature, VSY = 5.0 V

100

–40

–20

VCM (V)

ADA4500-2

VSY = 5.0V

Figure 15. Input Bias Current (IB) vs. Common-ModeVoltage (VCM), VSY = 5.0 V

10k

100

0.1

0.001

100

0.1

0.01

LOAD CURRENT (mA)

ADA4500-2

VSY = 5.0V

SOURCING OUTPUT CURRENT

–40°C

+25°C

+125°C

Figure 16. Output Voltage (VOH) to Supply Rail vs. Load Current, VSY = 5.0 V
